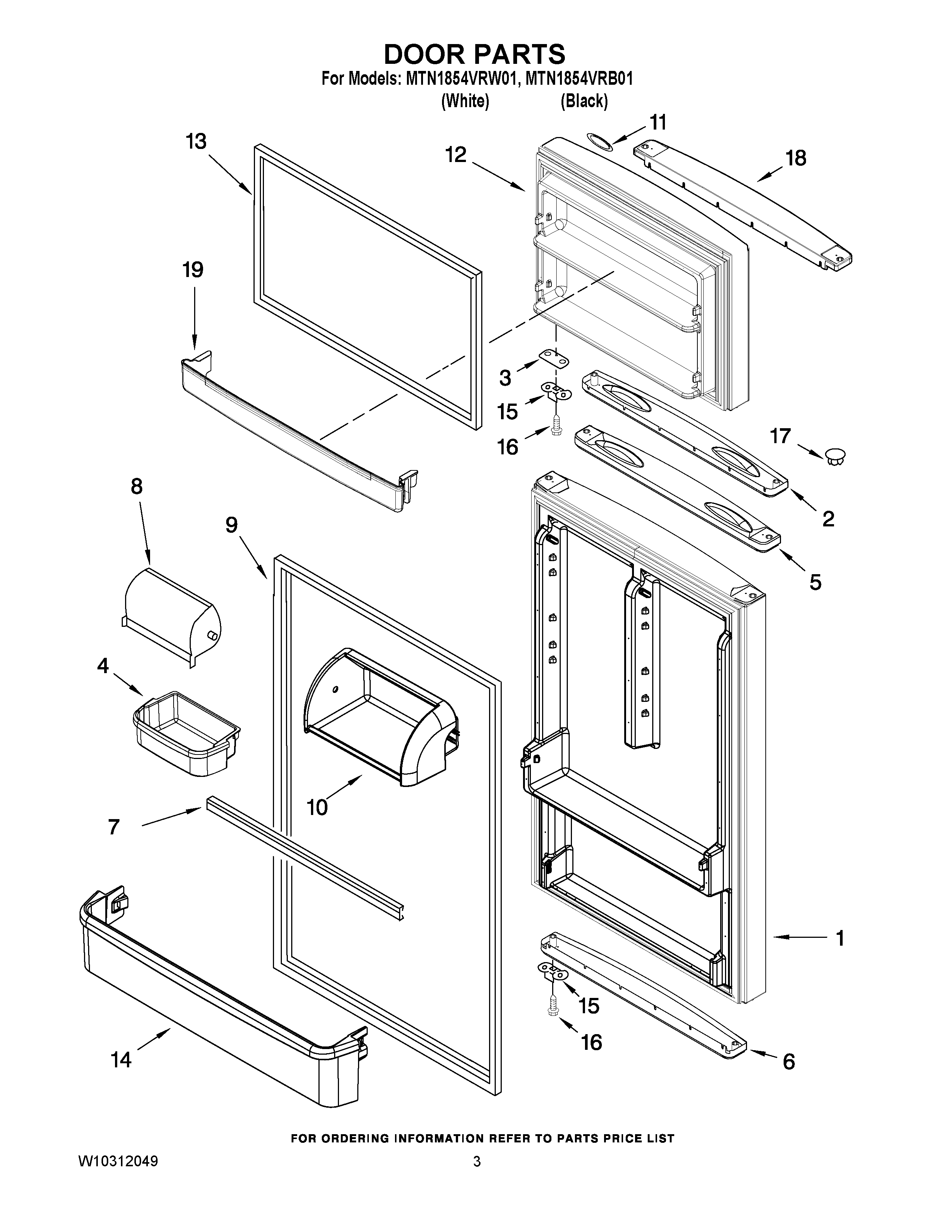

MTN1854VRB01 02 – DOOR PARTS

MTN1854VRB01 02 – DOOR PARTS

Written by

in

MTN1854VRB01 02 – DOOR PARTS

Products

PositionProduct
1MAY 2264716W
1MAY 2264716B
3Shim, Door Stop (White)
3Shim, Door Stop (Black)
4MAY 2266150
5Endcap, Handle (White)
5Endcap, Handle (Black)
6Endcap, Bottom (Black)
6Endcap, Bottom (White)
7MAY W10234241
8Door, Compartment
9MAY 2264727
9GASKET, RC (BLACK)
10Utility Comprtmnt.
11MAY 2324038
12FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18) (BLACK)
12FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18) (WHITE)
13MAY 2264726
13GASKET, FC (BLACK)
14MAY 2266146
15MAY 2189202
16MAY 8533904
17MAY 2212648
17Hole Plug (Black)
18Endcap, Top (White)
18Endcap, Top (Black)
19MAY 2266148
