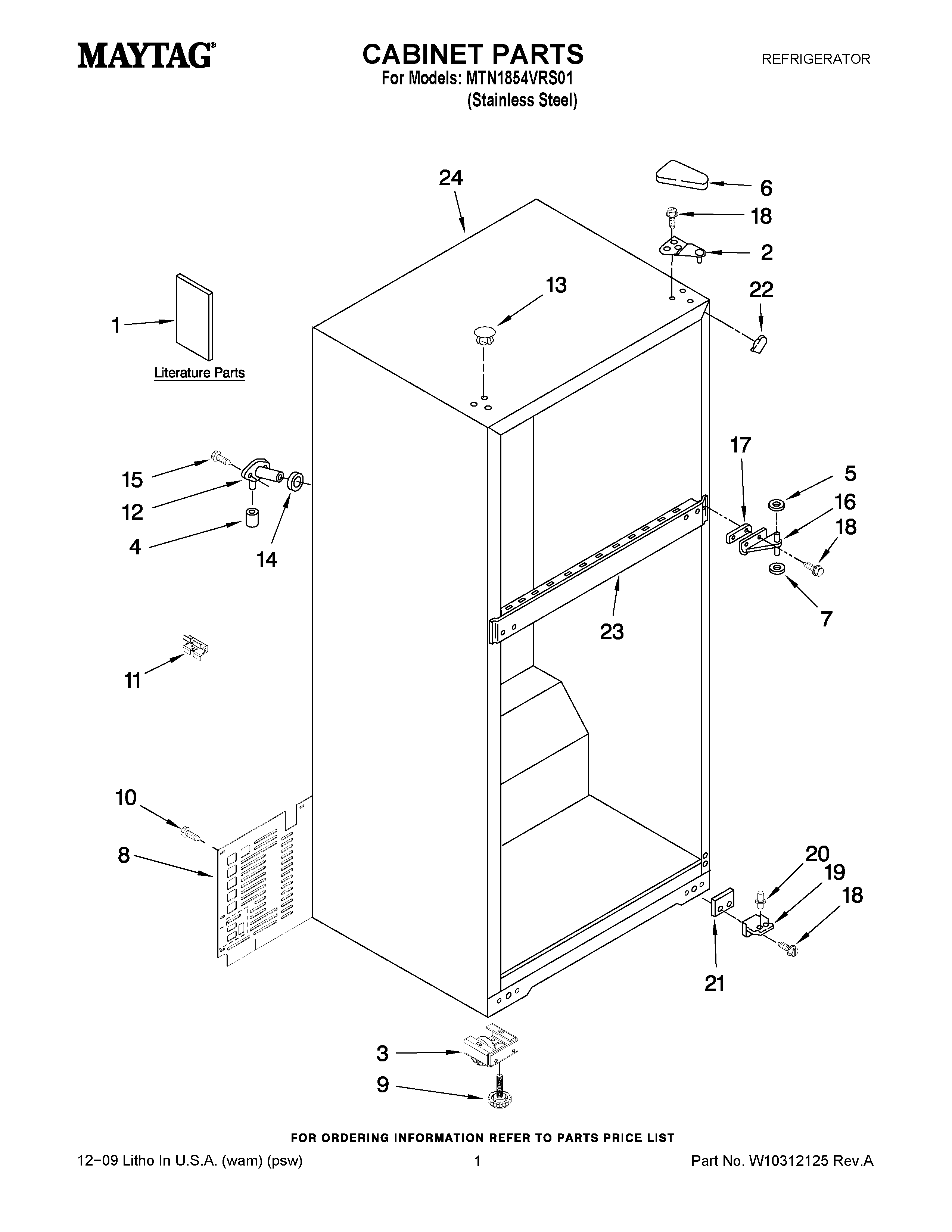

MTN1854VRS01 01 – CABINET PARTS

MTN1854VRS01 01 – CABINET PARTS

Written by

in

MTN1854VRS01 01 – CABINET PARTS

Products

Position	Product
1	MAY W10214132
1	MAY W10182817
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY 2265591
2	MAY 2261963
3	ROLLER, FRONT
4	CAP BUSHING
5	Washer (7/64)
6	MAY 2213363
7	Washer (1/16)
8	MAY 2264132
9	LEVELER SCREW
10	MAY 489442
11	SPACER, BACK CB
12	MAY 2174760
13	MAY 2183998
14	Seal
15	MAY 2262176
16	MAY 2166086
17	SHIM, CENTER HINGE (BLACK)
18	MAY 489497
19	Hinge Butt, Btm
20	Hinge-Pin, Btm
21	MAY 2201567
22	Corner Filler (Black)
24	LINER (NOT A SERVICEABLE PART)
