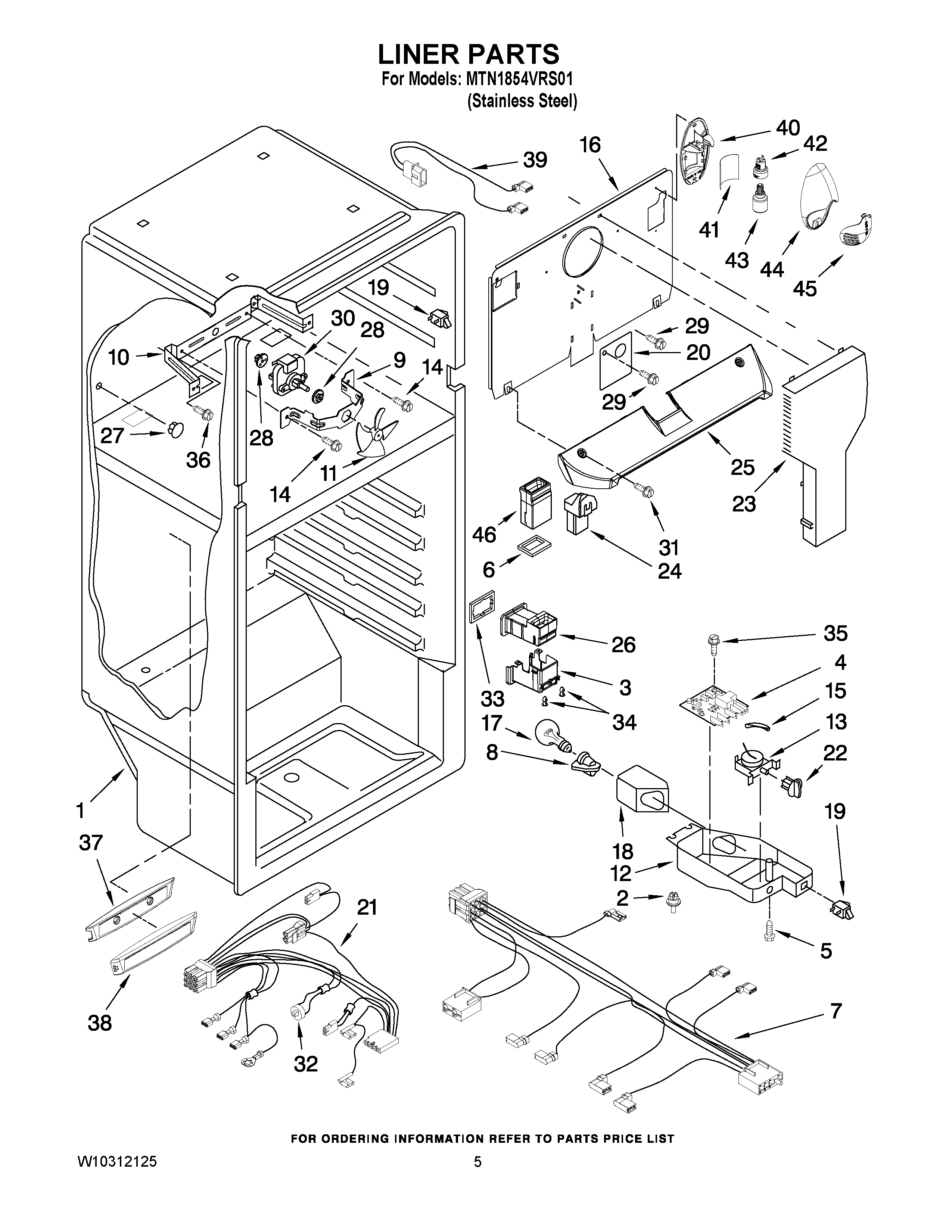

MTN1854VRS01 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Rivet
3	MAY 2252837
4	TIMER, DEFROST
5	MAY 489174
6	MAY 2263075
7	MAY 2265603
8	Socket, Light
9	Fan Support Bracket
10	MAY 2197405
11	Blade, Fan (Evaporator)
12	MAY 2264733
13	MAY 2325701
14	Screw 8-32 x 5/16
15	MAY 1118680
16	MAY W10244013
18	MAY 9791702
19	MAY 1118894
20	MAY 2217784
21	MAY W10164673
22	MAY 2202885
23	MAY 9790408
24	Hood And Foil Assembly
25	MAY 2261978
26	MAY 2256715
27	MAY 941839
28	MAY 2264462
29	MAY 489478
30	MAY W10234465
31	MAY 2262178
32	MAY 2266067
33	MAY W10129686
34	MAY 2256983
35	Screw
36	MAY 489442
37	Insulation (4)
38	MAY 2252828
39	Wiring Harness Freezer Light
40	MAY 2256949
41	MAY 2256948
42	MAY 2263413
43	BULB, LIGHT
44	MAY 2256946
45	MAY 2256947
46	MAY 2252831
