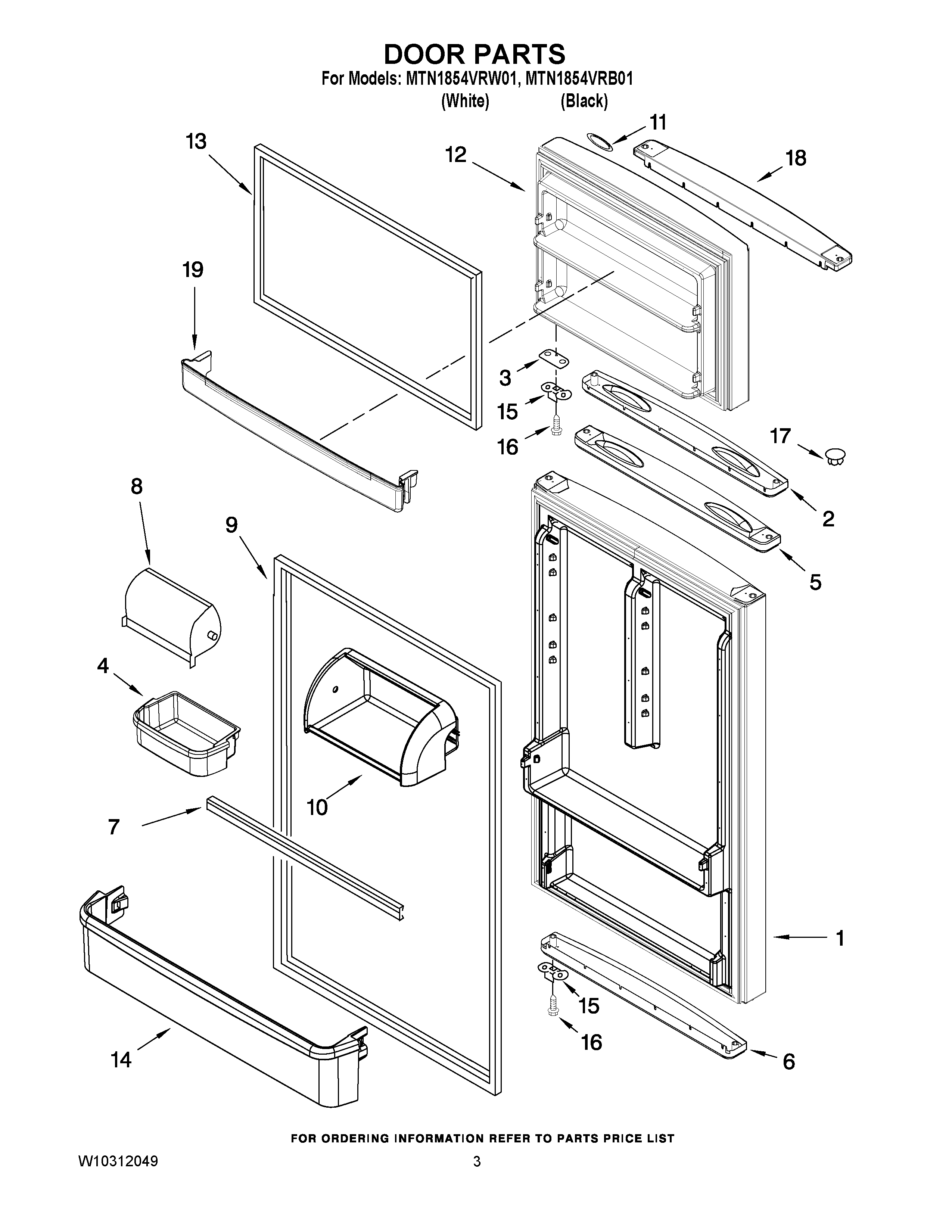

MTN1854VRW01 02 – DOOR PARTS

Products

Position	Product
1	MAY 2264716W
1	MAY 2264716B
3	Shim, Door Stop (White)
3	Shim, Door Stop (Black)
4	MAY 2266150
5	Endcap, Handle (White)
5	Endcap, Handle (Black)
6	Endcap, Bottom (Black)
6	Endcap, Bottom (White)
7	MAY W10234241
8	Door, Compartment
9	MAY 2264727
9	GASKET, RC (BLACK)
10	Utility Comprtmnt.
11	MAY 2324038
12	FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18) (BLACK)
12	FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18) (WHITE)
13	MAY 2264726
13	GASKET, FC (BLACK)
14	MAY 2266146
15	MAY 2189202
16	MAY 8533904
17	MAY 2212648
17	Hole Plug (Black)
18	Endcap, Top (White)
18	Endcap, Top (Black)
19	MAY 2266148
