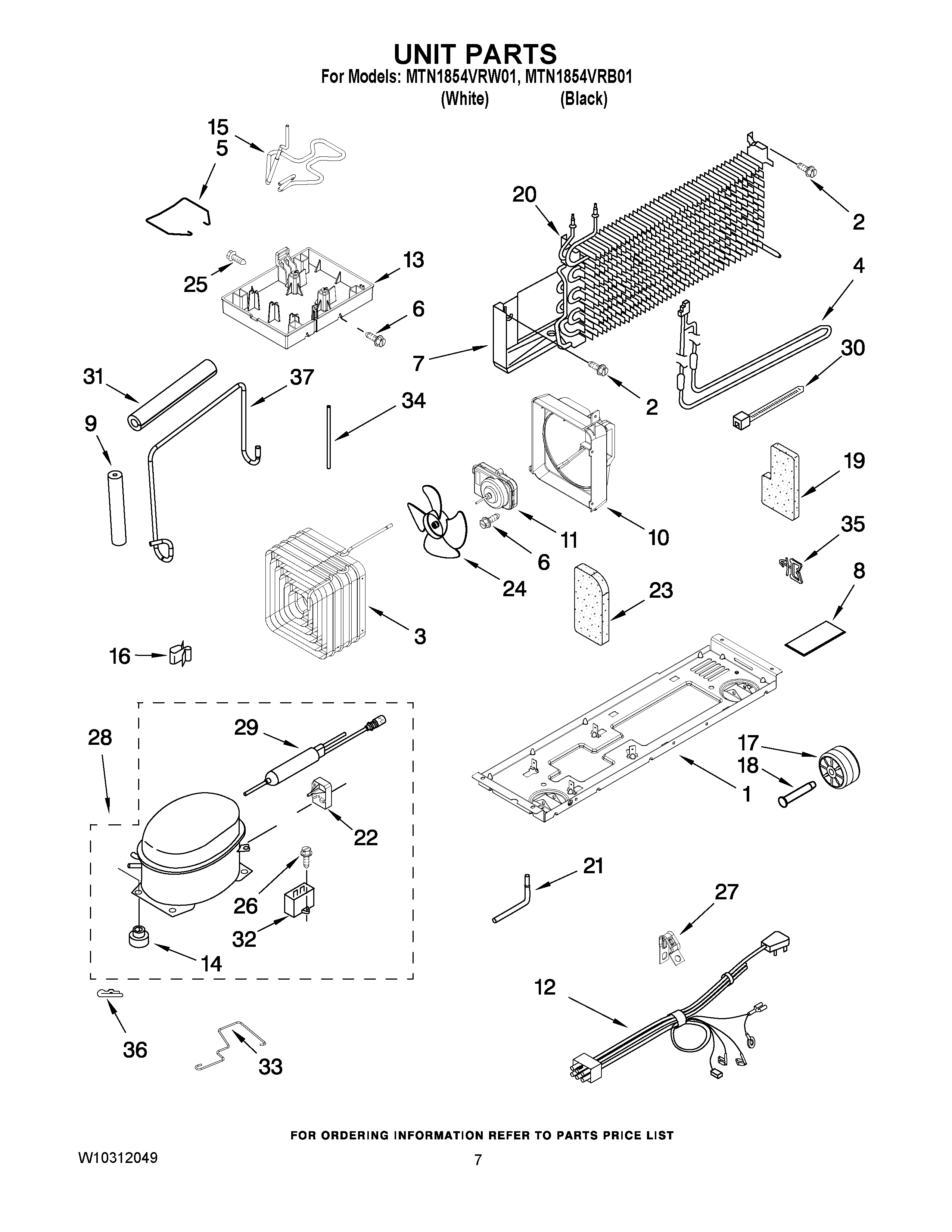

MTN1854VRW01 04 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10222450
2	MAY 489442
3	MAY 2264004
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
8	SHIELD-ELECTRICAL
9	Sleeve, Pressure Switch Hose
10	MAY 2263929
11	MAY 2188875
12	Wire Assy. Unit
13	Evaporating Tray
14	MAY 2222084
15	TUBE, DISCHARGE (INCL.PRE COOLER)
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	MAY VS20001
22	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
22	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (SERVICE)
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	MAY 8533919
27	MAY 549193
28	COMPRESSOR (INCLUDES ITEMS 14, 22, 29 & 32) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	Drier
29	DRIER (PRODUCTION)
30	MAY 2263990
31	MAY 2264838
32	Capacitator (Production)
33	BALE STRAP
34	MAY 2264278
35	CLIP-HARNESS
36	MAY 24364001
37	MAY W10209727
