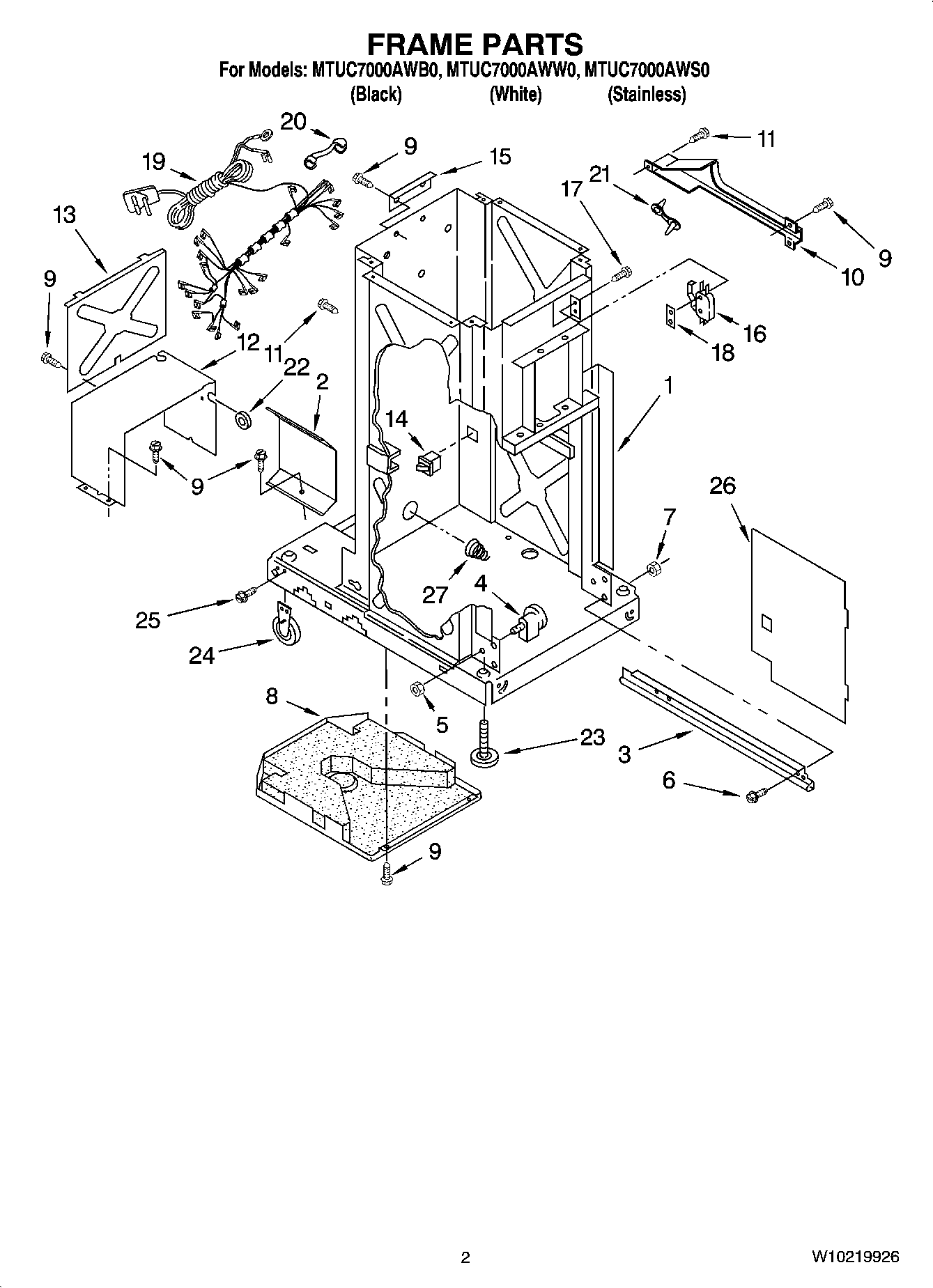

MTUC7000AWB0 02 – FRAME PARTSadmin2025-04-26T12:13:41+00:00MTUC7000AWB0 02 – FRAME PARTS
Products
| Position | Product |
|---|
| 2 | Shield, Slide Track |
| 3 | Slide, Frame (L.H.) |
| 3 | Slide, Frame (R.H.) |
| 4 | Bearing, Roller |
| 5 | Locknut, 3/8-24 |
| 6 | Screw, 6-32 x 3/8 |
| 7 | Nut, 6-32 |
| 8 | MAY 9870167 |
| 9 | MAY 489478 |
| 10 | MAY 4149659 |
| 11 | MAY 777070 |
| 12 | MAY 780434 |
| 13 | MAY 608009 |
| 14 | MAY 4149377 |
| 15 | MAY 775668 |
| 16 | MAY 777811 |
| 17 | Screw, 6-20 x 1`` |
| 18 | Nut, Plate |
| 19 | Wiring Harness & Power Cord |
| 20 | Bushing, Power Cord |
| 21 | MAY 777035 |
| 22 | MAY 776118 |
| 23 | Foot, Leveler |
| 24 | Wheel Leveler |
| 25 | Screw, 10-24 x 3/8 |
| 26 | MAY 9870444 |
| 27 | MAY 777180 |
