MTUC7000AWS1 05 – PANEL AND CONTROL PARTS – Aparts

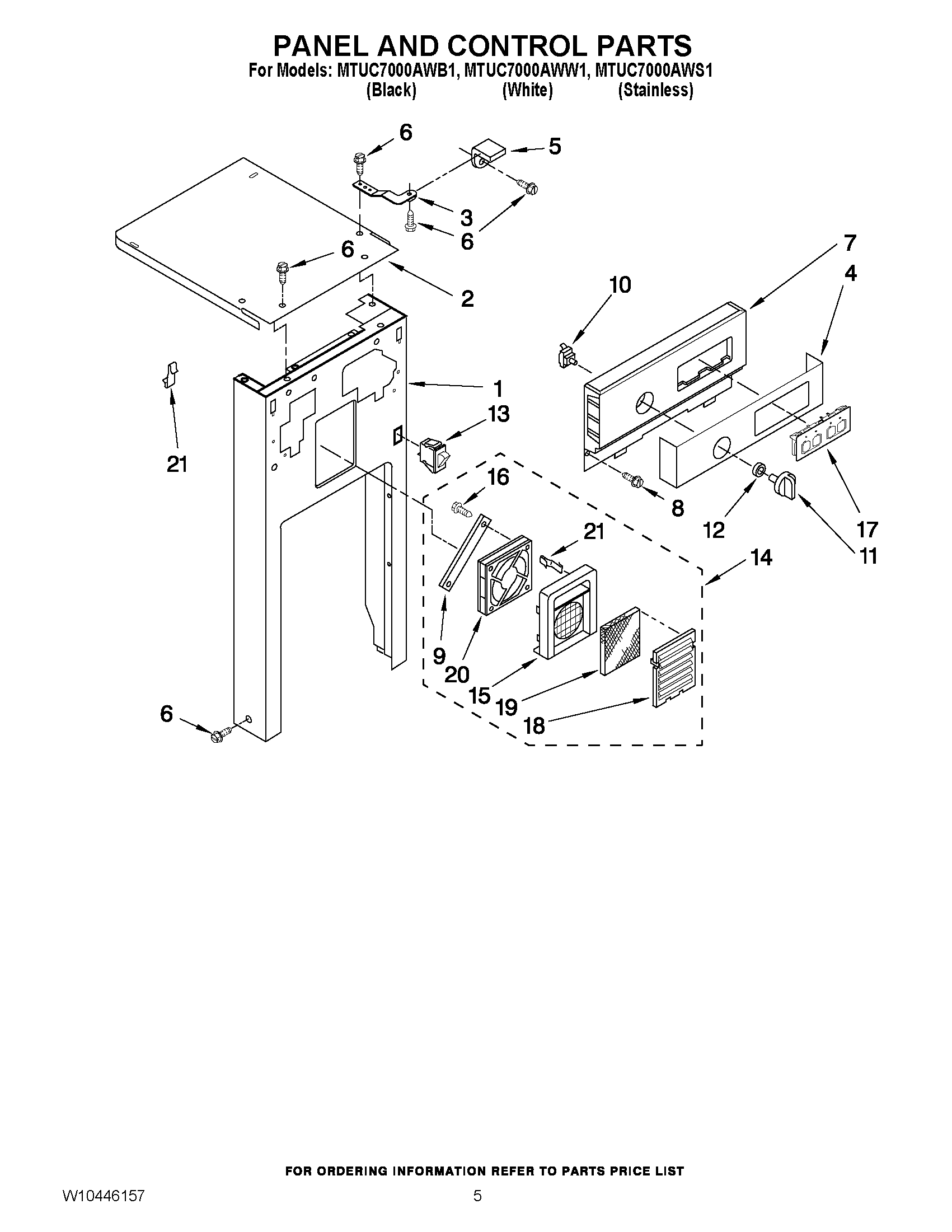

MTUC7000AWS1 05 – PANEL AND CONTROL PARTS

Products

Position	Product
1	MAY 9871072
2	Top, Cabinet
3	MAY 9871993
4	MAY 9872198B
5	Bracket, Mounting (Alternate)
6	SCREW, 8 X 1/2
7	MAY 9871747
8	Screw, 6-20 x 3/8
9	MAY 4152703
10	MAY 608824
11	MAY 9871800
12	Nut, Switch
13	Switch, Drawer Tilt (Black)
14	MAY 9871893
15	MAY 4151442
16	Screw, 10-24 x 3/8
17	MAY 9872326B
18	MAY 9871099
19	MAY 4151750
20	MAY 9871051
21	S-Clip
