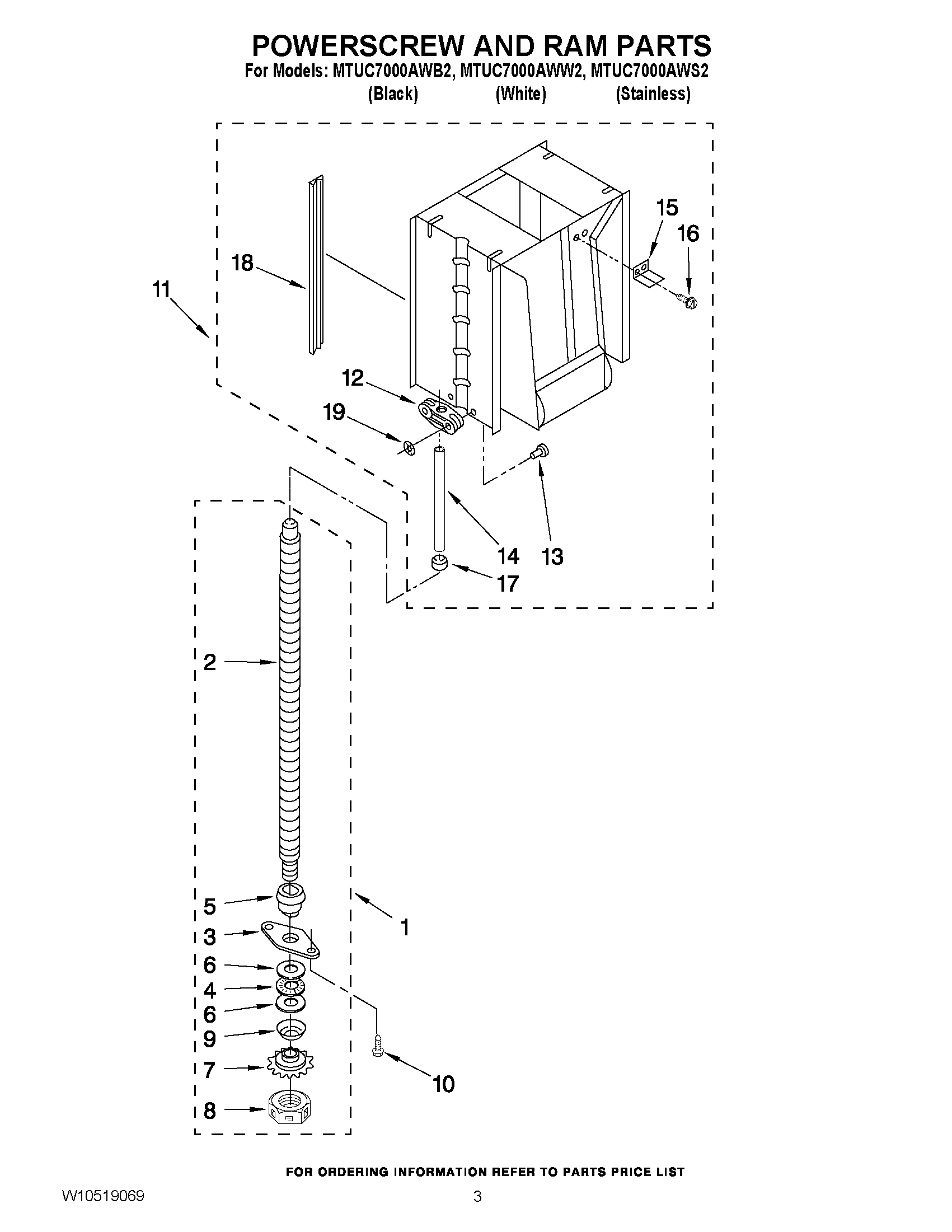

MTUC7000AWS2 03 – POWERSCREW AND RAM PARTS

Written by

Products

Position	Product
1	Screw, Power Complete Assembly
2	LINER (NOT A SERVICEABLE PART)
3	Plate, Bearing
4	Bearing, Needle
5	Hub, Power Screw
6	Race, Thrust
7	Sprocket Washer
8	Nut, Power Screw
9	Washer, Cone
10	Screw, 1/4-20 x 1/2
11	MAY 9871251
12	MAY 9870163
13	MAY 9870187
14	MAY 9870037
15	MAY 9870498
16	Screw 8-32 x 5/16
17	MAY 9870775
18	MAY 9870169
19	CLIP
