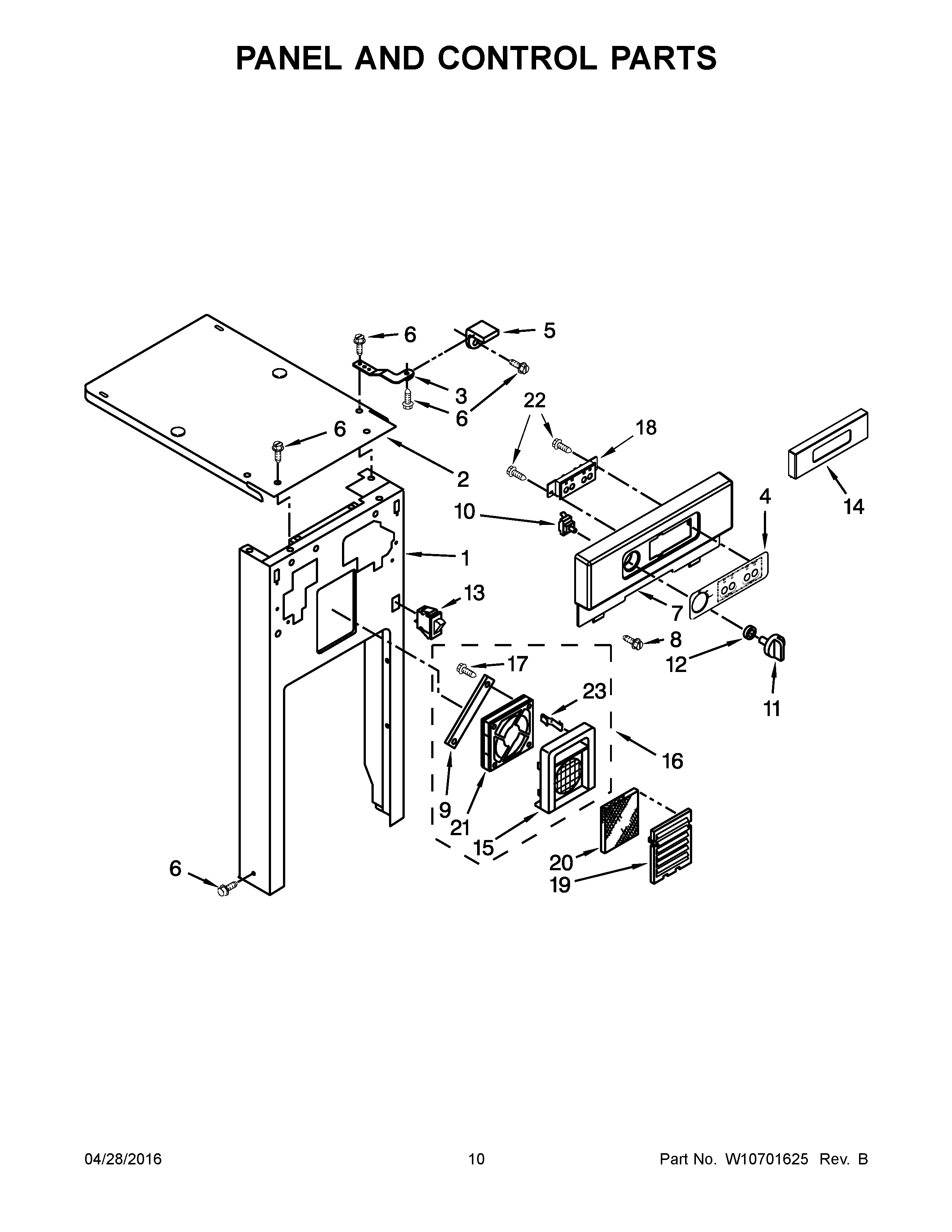

MTUC7500ADM0 06 – PANEL AND CONTROL PARTS

MTUC7500ADM0 06 – PANEL AND CONTROL PARTS

Written by

in

MTUC7500ADM0 06 – PANEL AND CONTROL PARTS

Products

PositionProduct
1MAY 9871072
1AMAY 9871073
2Top, Cabinet
3MAY 9871993
4AMAY W10669537
4BMAY W10669535
4MAY W10669536
5Bracket, Mounting (Alternate)
6SCREW, 8 X 1/2
7AMAY 9872144W
7MAY 9872144B
8Screw, 6-20 x 3/8
9MAY 4152703
10MAY 608824
11MAY W10647673
12Nut, Switch
13AMAY W10804315
13Switch, Drawer Tilt (Black)
14MAY 9872162S
15MAY 4151442
16MAY 9871893
17Screw, 10-24 x 3/8
18MAY W10451287
19ACOVER, AIR FRESHENER (WHITE)
19MAY 9871099
20MAY 4151750
21MAY 9871051
22SCREW
23S-Clip
