MTUC7500ADM2 06 – PANEL AND CONTROL PARTS – Aparts

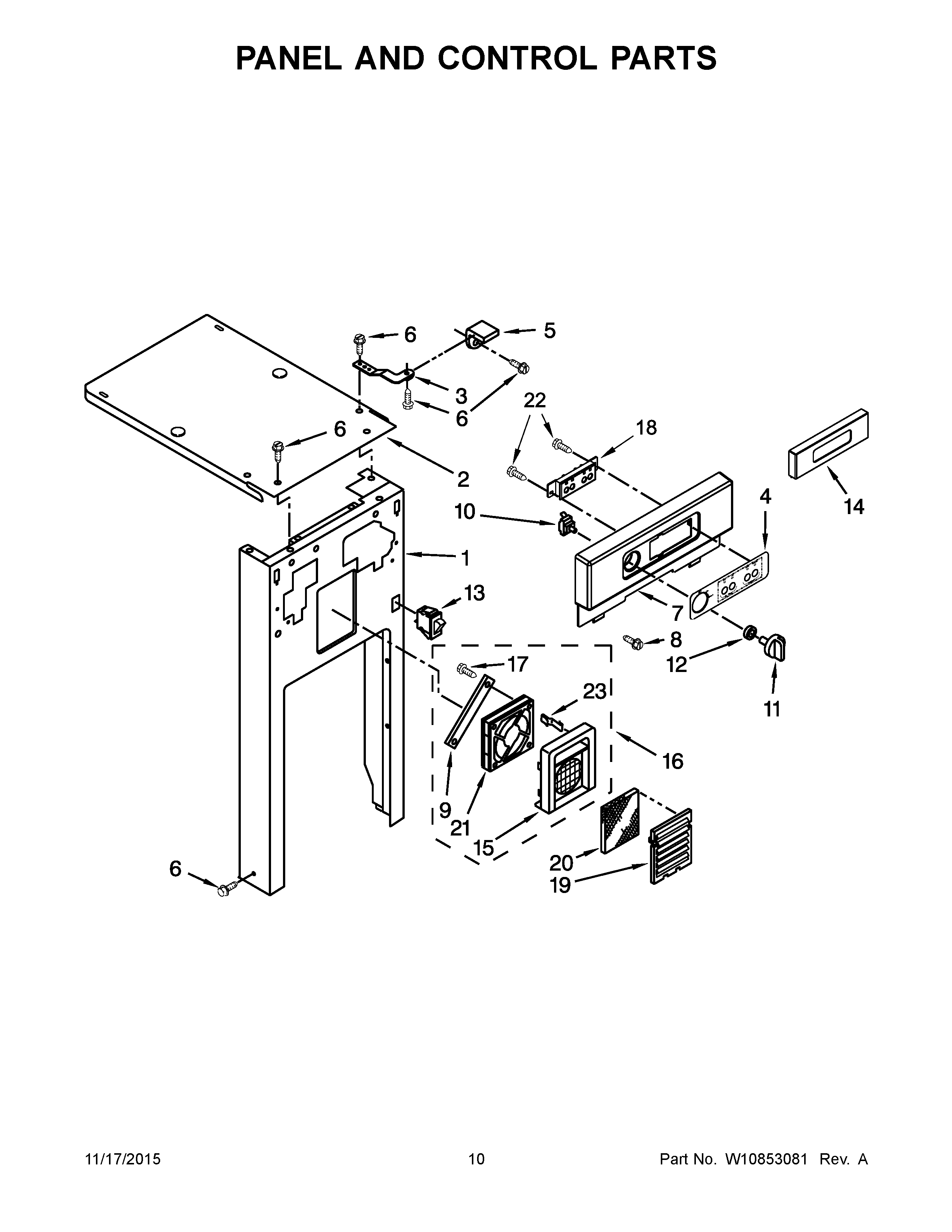

MTUC7500ADM2 06 – PANEL AND CONTROL PARTS

Products

Position	Product
1	MAY 9871072
2	Top, Cabinet
3	MAY 9871993
4	MAY W10669536
4A	MAY W10669537
4B	MAY W10669535
5	Bracket, Mounting (Alternate)
6	SCREW, 8 X 1/2
7	MAY 9872144B
7A	MAY 9872144W
8	Screw, 6-20 x 3/8
9	MAY 4152703
10	MAY 608824
11	MAY W10647673
12	Nut, Switch
13	Switch, Drawer Tilt (Black)
14	MAY 9872162S
15	MAY 4151442
16	MAY 9871893
17	Screw, 10-24 x 3/8
18	MAY W10723643
19	MAY 9871099
20	MAY 4151750
21	MAY 9871051
22	SCREW
23	S-Clip
