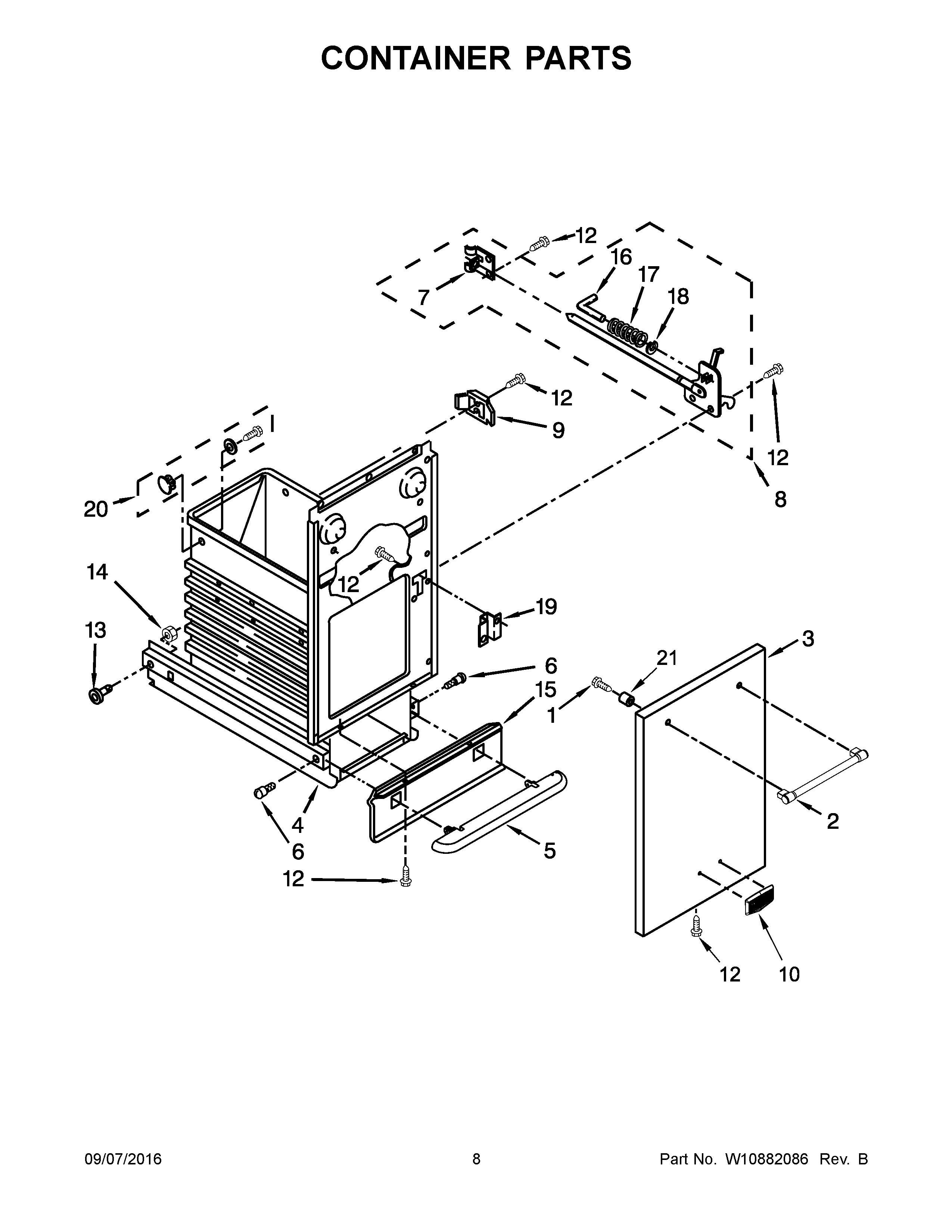

MTUC7500AFW0 05 – CONTAINER PARTS

Products

PositionProduct
1MAY W10661526
2MAY W10888679
2AMAY W10888674
2BMAY W10861963
3MAY W10646555
3BMAY W10646557
3AMAY W10646556
4MAY 9870934
5AMAY 9871989W
5MAY 9871989B
6Screw, Shoulder 8-16 x 7/16
7MAY 776395
8MAY 9870066
9Actuator, Safety Switch
10BADGE
12SCREW, 8 X 1/2
13Container, Bearing Roller
14Locknut, 3/8-24
15GUARD, TOE PLATE (BLK)
15AGuard, Toe Plate (White)
16Pin, Latch
17MAY 775736
18RING, ‘‘E’’
19MAY 775665
20MAY 4147703
21Spacer
