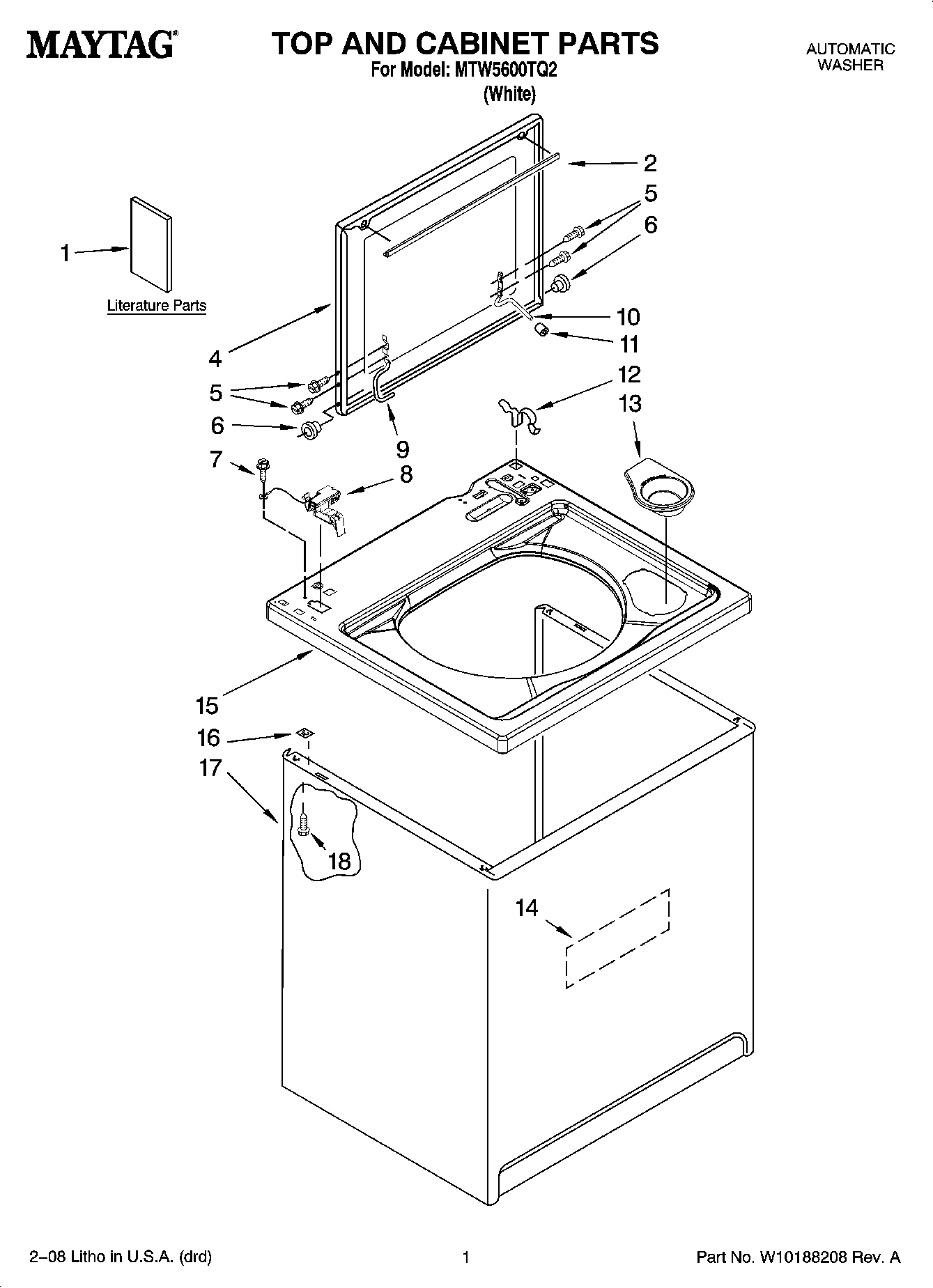

MTW5600TQ2 01 – TOP AND CABINET PARTS

MTW5600TQ2 01 – TOP AND CABINET PARTS

Written by

in

MTW5600TQ2 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10150628
1MAY W10150597
1MAY W10111392
1MAY W10092784
2MAY 8054939
4MAY W10171568
5SCREW, LID HINGE
6MAY 8319539
7SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
8MAY 8318084
9MAY 8559336
10HINGE, LID (RIGHT HAND)
11MAY 19119
12MAY 62780
13MAY 8565967
14Absorber, Sound (Cabinet) (3)
15MAY 8543488
16MAY 62750
17Cabinet
18SCREW
