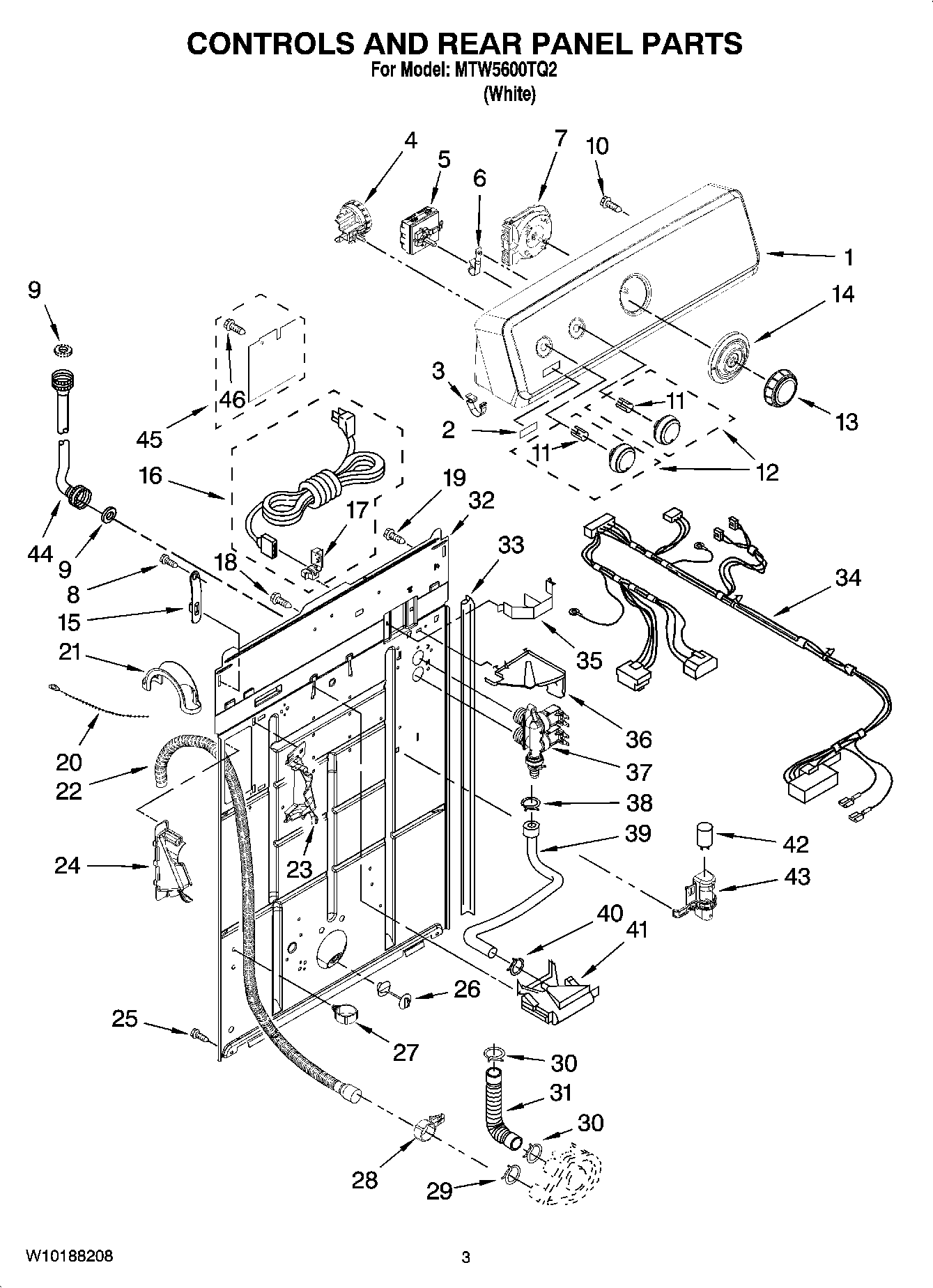

MTW5600TQ2 02 – CONTROLS AND REAR PANEL PARTSadmin2025-04-26T11:29:28+00:00MTW5600TQ2 02 – CONTROLS AND REAR PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Console & Shell Assembly (Includes Items 2 & 3) |
| 2 | MAY W10112569 |
| 3 | MAY 8312709 |
| 4 | MAY 8577844 |
| 5 | MAY W10113058 |
| 6 | MAY 8317975 |
| 7 | MAY W10111389 |
| 8 | SCREW,8-18 X 3/8 |
| 9 | ACCESSORY PARTS, WASHER, INLET HOSE |
| 10 | SCREW |
| 11 | CLIP, SPRING |
| 12 | Knob, Control (3) |
| 13 | MAY W10110027 |
| 14 | MAY W10110028 |
| 15 | Strap, Console |
| 16 | Cord, Power |
| 17 | MAY 3952821 |
| 18 | SCREW |
| 19 | SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8) |
| 20 | MAY 3347868 |
| 21 | U-Bend |
| 22 | Drain Hose Assembly (Includes Items 22, 28 & 32) |
| 23 | MAY 8541669 |
| 24 | MAY 8541658 |
| 25 | Screw, Mixing Valve Mounting |
| 26 | MAY 8519200 |
| 27 | MAY 8541667 |
| 28 | MAY 8541668 |
| 29 | MAY 8317496 |
| 30 | Clamp, Hose (2) |
| 31 | Hose & Clamp Assembly |
| 32 | MAY 8318015 |
| 33 | MAY 62747 |
| 34 | MAY W10176460 |
| 35 | Clip, Harness & Pressure Switch |
| 36 | MAY 8539874 |
| 37 | Valve, Water Inlet W/Thermistor |
| 38 | MAY 301958 |
| 39 | MAY 8317974 |
| 40 | MAY 370450 |
| 41 | Thermister, Inlet |
| 42 | MAY 8572717 |
| 43 | MAY 8318046 |
| 44 | Hose, Water Inlet (2) (Blue Coupler) |
| 44 | Hose, Water Inlet (Hot Water) |
| 45 | MAY W10093726 |
| 46 | RETAINER, PUSH-IN |
