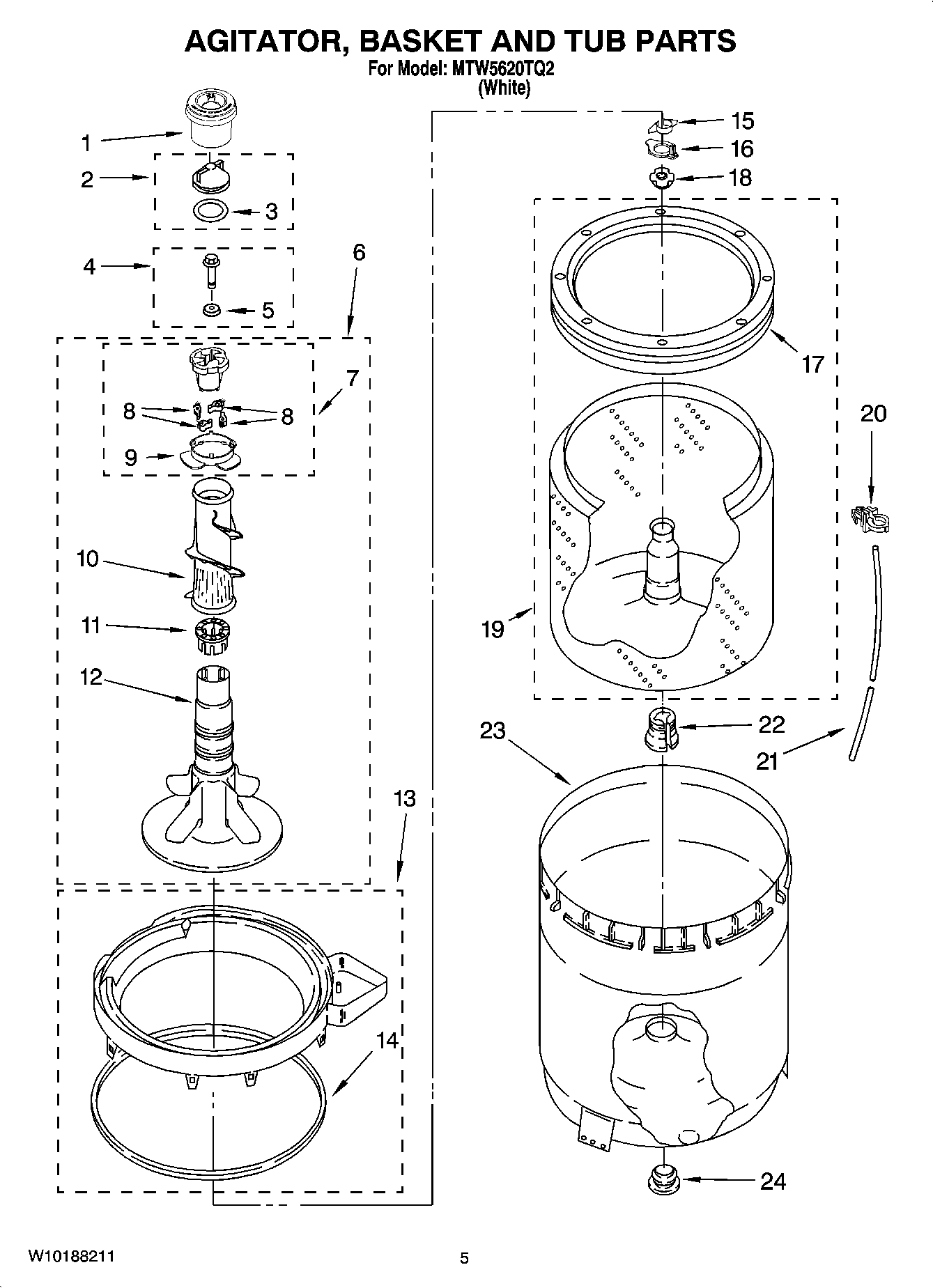

MTW5620TQ2 03 – AGITATOR, BASKET AND TUB PARTS

MTW5620TQ2 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

MTW5620TQ2 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8565968
2	MAY 3354733
3	MAY W10072840
4	Screw & Washer
5	MAY 3949550
6	MAY W10093672
7	MAY 3363663
8	Dog, Agitator (4)
9	BEARING, CAM
10	MAY 3349019
11	SPACER, THRUST
12	MAY W10110020
13	Tub Ring
14	MAY 3976308
15	MAY 3354845
16	MAY 8543666
17	Ring, Balance
18	MAY 21366
19	MAY 8526017
20	Clip, Harness (1)
21	MAY 3347780
22	Block, Drive
23	MAY 63849
24	MAY 383727
