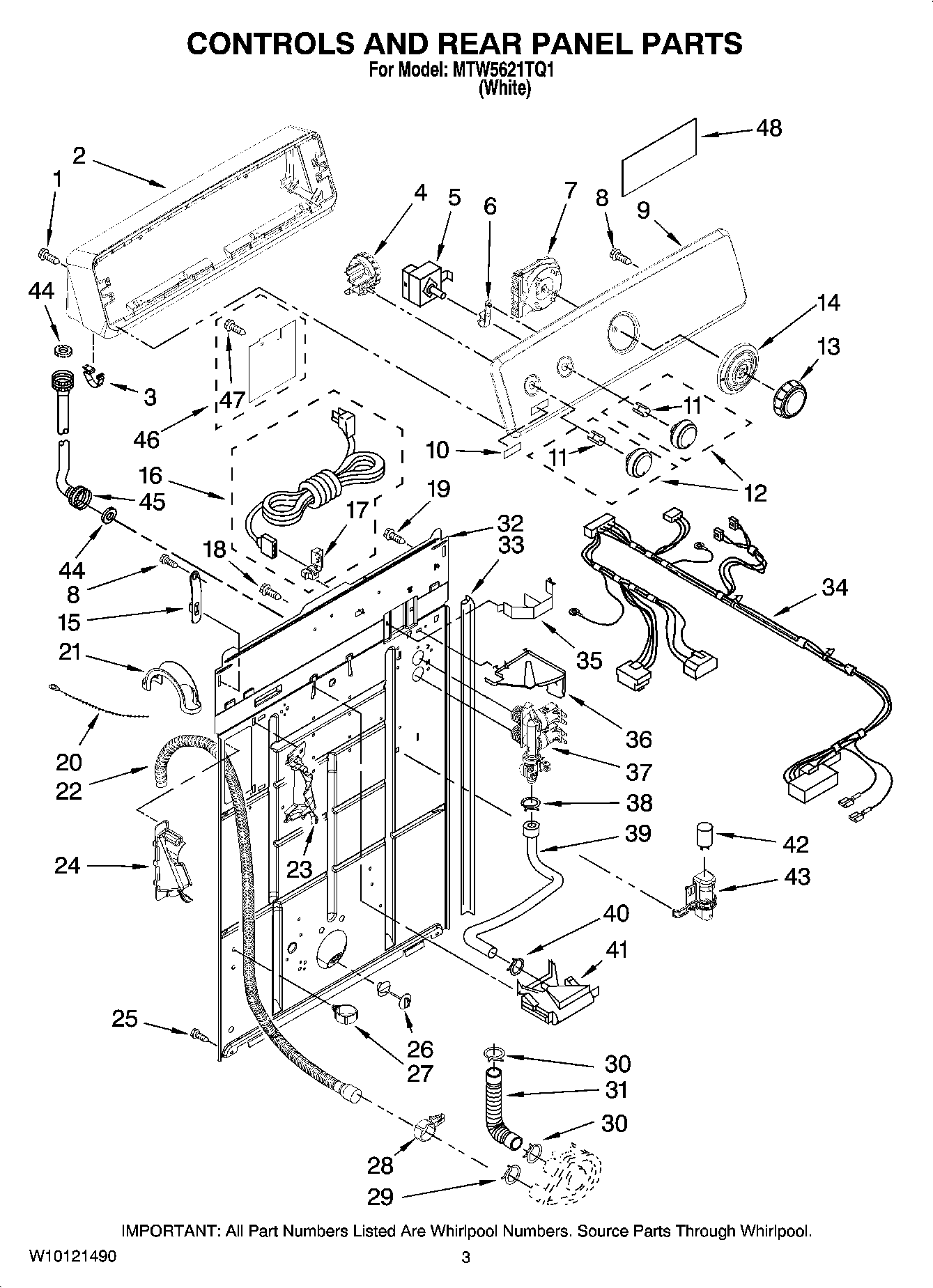

MTW5621TQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY 359625
2	MAY 8579715
3	MAY 8312709
4	MAY 8577843
5	MAY 8578338
6	MAY 8317975
7	MAY W10111389
8	SCREW,8-18 X 3/8
9	MAY W10089674
10	MAY W10112569
11	CLIP, SPRING
12	Knob, Control (3)
13	MAY W10110027
14	MAY W10110028
15	Strap, Console
16	Cord, Power
17	MAY 3952821
18	SCREW
19	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
20	MAY 3347868
21	U-Bend
22	Drain Hose Assembly (Includes Items 28 & 32)
23	MAY 8541669
24	MAY 8541658
25	Screw, Mixing Valve Mounting
26	MAY 8519200
27	MAY 8541667
28	MAY 8541668
29	MAY 8317496
30	Clamp, Hose (2)
31	Hose & Clamp Assembly
32	MAY 8318015
33	MAY 62747
34	MAY W10113810
35	Clip, Harness & Pressure Switch
36	MAY 8539874
37	MAY 8578343
38	MAY 301958
39	MAY 8317974
40	MAY 370450
41	Thermister, Inlet
42	MAY 8572717
43	MAY 8318046
44	ACCESSORY PARTS, WASHER, INLET HOSE
45	Hose, Water Inlet (Hot Water)
45	Hose, Water Inlet (2) (Blue Coupler)
46	MAY W10093726
47	RETAINER, PUSH-IN
48	MAY W10093725
