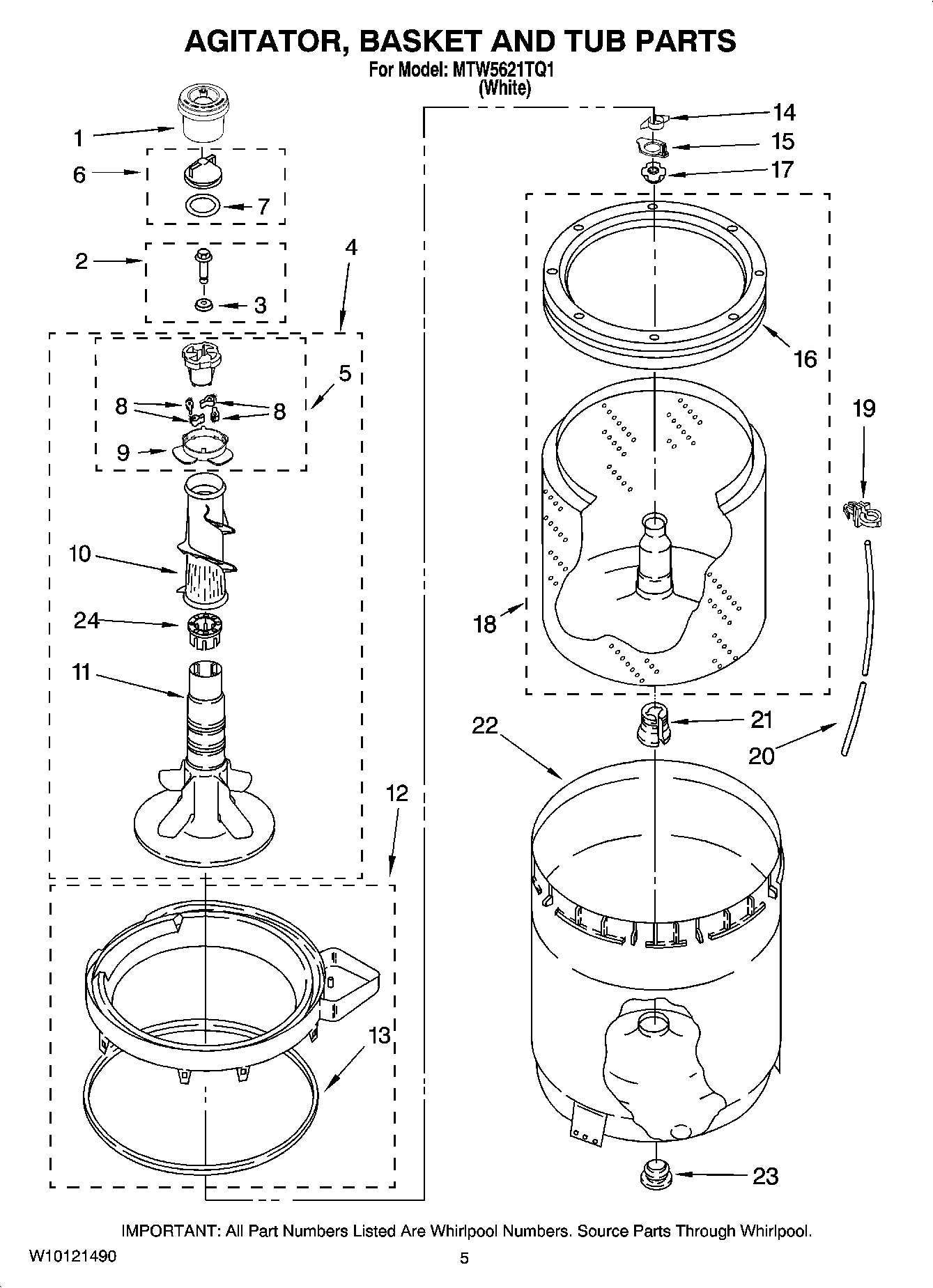

MTW5621TQ1 03 – AGITATOR, BASKET AND TUB PARTS

MTW5621TQ1 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

MTW5621TQ1 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8565968
2	Screw & Washer
3	MAY 3949550
4	MAY W10093672
5	MAY 3363663
6	MAY 3354733
7	Seal, Inner Cap
8	Dog, Agitator (4)
9	BEARING, CAM
10	MAY 3349019
11	MAY W10110020
12	Tub Ring
13	MAY 3976308
14	MAY 3354845
15	MAY 8543666
16	Ring, Balance
17	MAY 21366
18	MAY 8526017
19	Clip, Harness (1)
20	MAY 3347780
21	Block, Drive
22	MAY 63849
23	MAY 383727
24	SPACER, THRUST
