MTW5670TQ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

MTW5670TQ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Written by

in

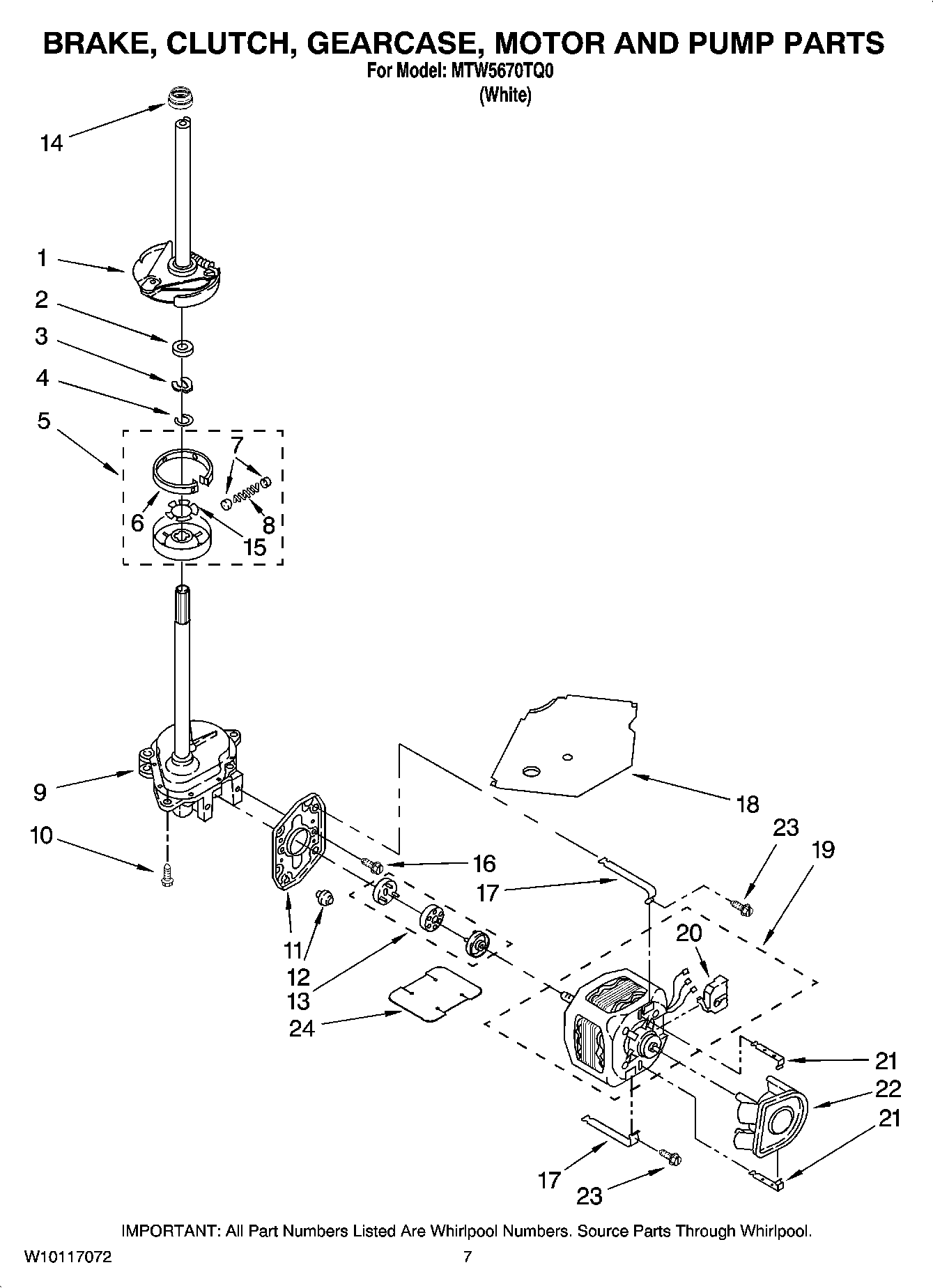

MTW5670TQ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1MAY 388952
2MAY 63292
3MAY 62697
4MAY 63283
5MAY 3951311
6Band And Lining (Includes Illus. 7 & 8)
7MAY 62646
8SPRING & DAMPER ASSEMBLY
9Gearcase (Complete) (Refer To Page 12 For Further Breakdown)
10Screw, 5/16-24 x 5/8
11MAY 62611
12MAY 62691
13MAY 3978849
14MAY 8577374
15MAY 3355454
16MAY 3400516
17MAY 3349637
18MAY 3362089
19MAY 8528157
20MAY 3952056
21Retainer, Pump
22MAY 3363394
23MAY 3387485
24MAY 3946532
