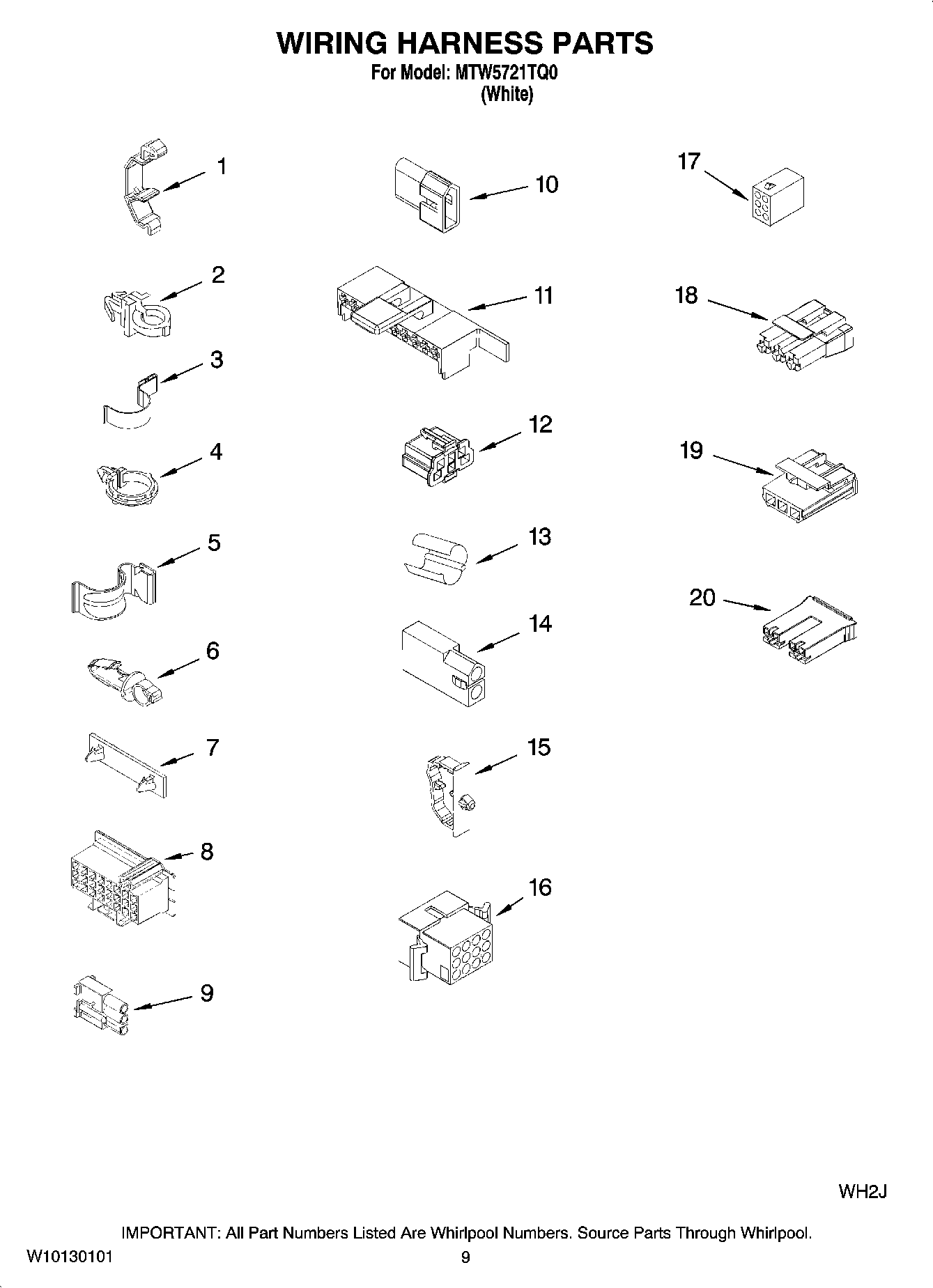

MTW5721TQ0 06 – WIRING HARNESS PARTS

Products

Position	Product
1	Retainer, Harness
2	MAY 388498
3	MAY 3347812
4	Clip, Harness (Push-In)
5	Clip, Wire (4)
6	MAY 3390496
7	Retainer, Harness
8	Block, Disconnect - Timer
8	Timer, Block Disconnect (Natural)
9	Receptacle, Terminal (3-Way)
10	Connector Sensor
11	Block, Disconnect
12	Connector
13	Harness, Protector
14	Plug, 2-Way Terminal
15	MAY 3352944
16	Block, Disconnect (12-Way)
17	Receptacle (6-Way)
18	Connector (T.P.A.) (3-Circuit)
19	Connector, Pressure Switch
20	Connector, H-Pod
20	Block, Connector (Red)
