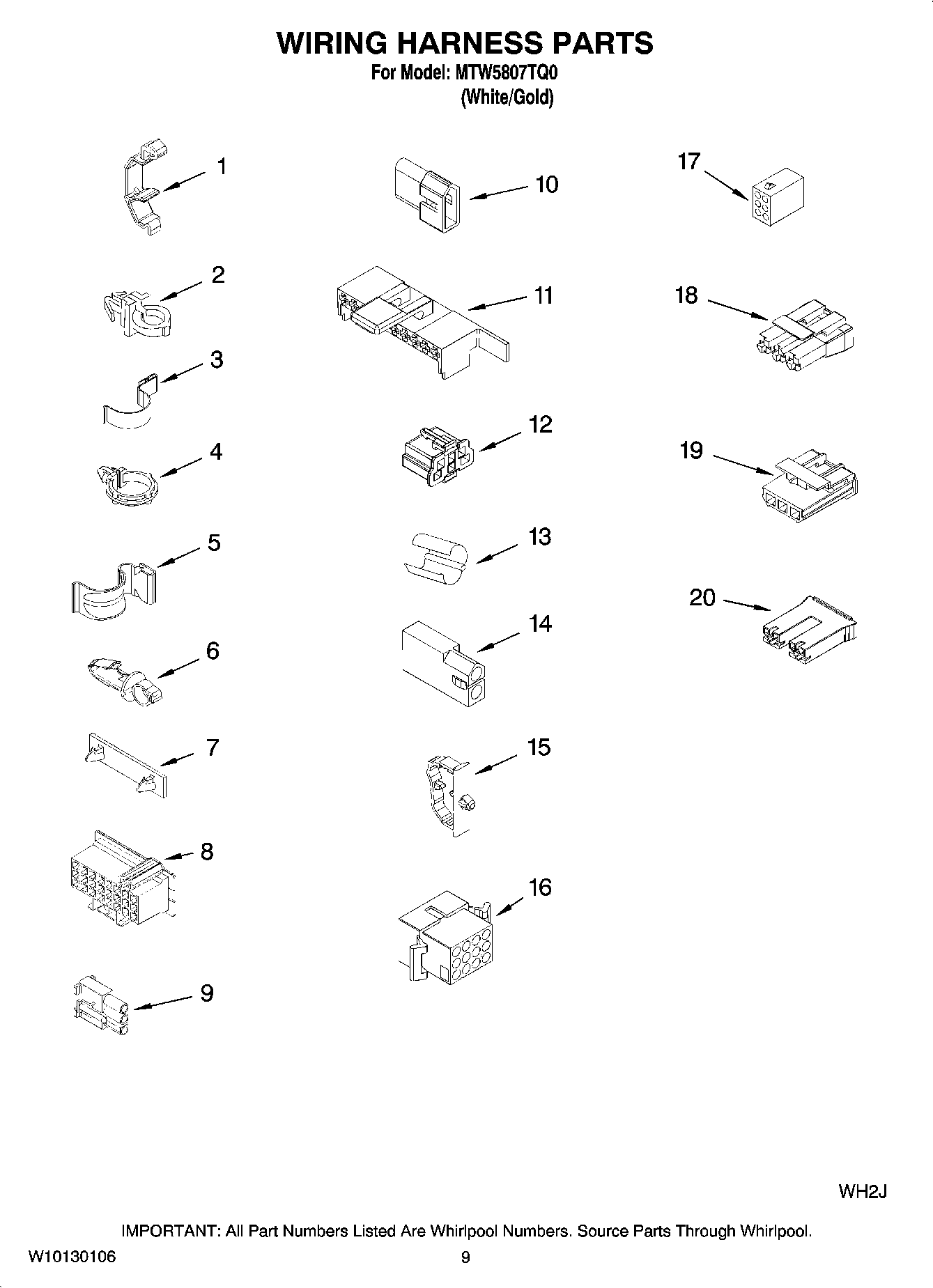

MTW5807TQ0 06 – WIRING HARNESS PARTSadmin2025-04-26T08:44:10+00:00MTW5807TQ0 06 – WIRING HARNESS PARTS
Products
| Position | Product |
|---|
| 1 | Retainer, Harness |
| 2 | MAY 388498 |
| 3 | MAY 3347812 |
| 4 | Clip, Harness (Push-In) |
| 5 | Clip, Wire (4) |
| 6 | MAY 3390496 |
| 7 | Retainer, Harness |
| 8 | Block, Disconnect - Timer |
| 8 | Timer, Block Disconnect (Natural) |
| 9 | Receptacle, Terminal (3-Way) |
| 10 | Connector Sensor |
| 11 | Block, Disconnect |
| 12 | Connector |
| 13 | Harness, Protector |
| 14 | Plug, 2-Way Terminal |
| 15 | MAY 3352944 |
| 16 | Block, Disconnect (12-Way) |
| 17 | Receptacle (6-Way) |
| 18 | Connector (T.P.A.) (3-Circuit) |
| 19 | Connector, Pressure Switch |
| 20 | Connector, H-Pod |
| 20 | Block, Connector (Red) |
