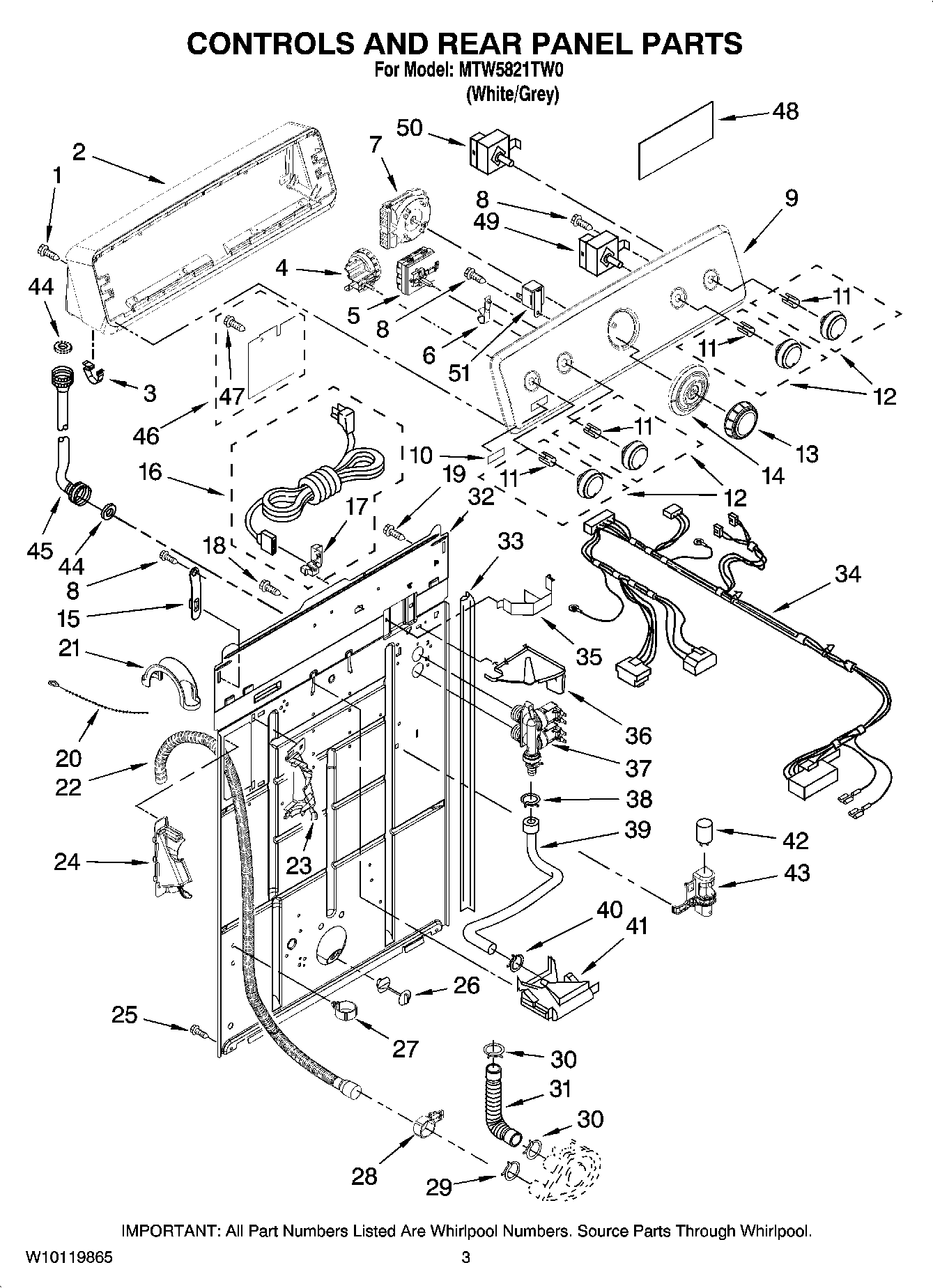

MTW5821TW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY 359625
2	MAY 8579715
3	MAY 8312709
4	MAY 8577842
5	MAY 8578335
6	MAY 8317975
7	MAY W10111389
8	SCREW,8-18 X 3/8
9	MAY W10089682
10	MAY W10112569
11	CLIP, SPRING
12	Knob, Control (4)
13	Knob, Timer (Washer)
14	Dial, (Washer)
15	Strap, Console
16	Cord, Power
17	MAY 3952821
18	SCREW
19	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
20	MAY 3347868
21	U-Bend
22	Drain Hose Assembly (Includes Items 28 & 32)
23	MAY 8541669
24	MAY 8541658
25	Screw, Mixing Valve Mounting
26	MAY 8519200
27	MAY 8541667
28	MAY 8541668
29	MAY 8317496
30	Clamp, Hose (2)
31	Hose & Clamp Assembly
32	MAY 8318015
33	MAY 62747
34	MAY W10113814
35	Clip, Harness & Pressure Switch
36	MAY 8539874
37	Valve, Water Inlet W/Thermistor
38	MAY 301958
39	MAY 8317974
40	MAY 370450
41	Thermister, Inlet
42	MAY 8572717
43	MAY 8318046
44	ACCESSORY PARTS, WASHER, INLET HOSE
45	Hose, Water Inlet (2) (Blue Coupler)
45	Hose, Water Inlet (Hot Water)
46	MAY W10093726
47	RETAINER, PUSH-IN
48	MAY W10093725
49	MAY 3949187
50	Switch, Rotary
51	MAY 694419
