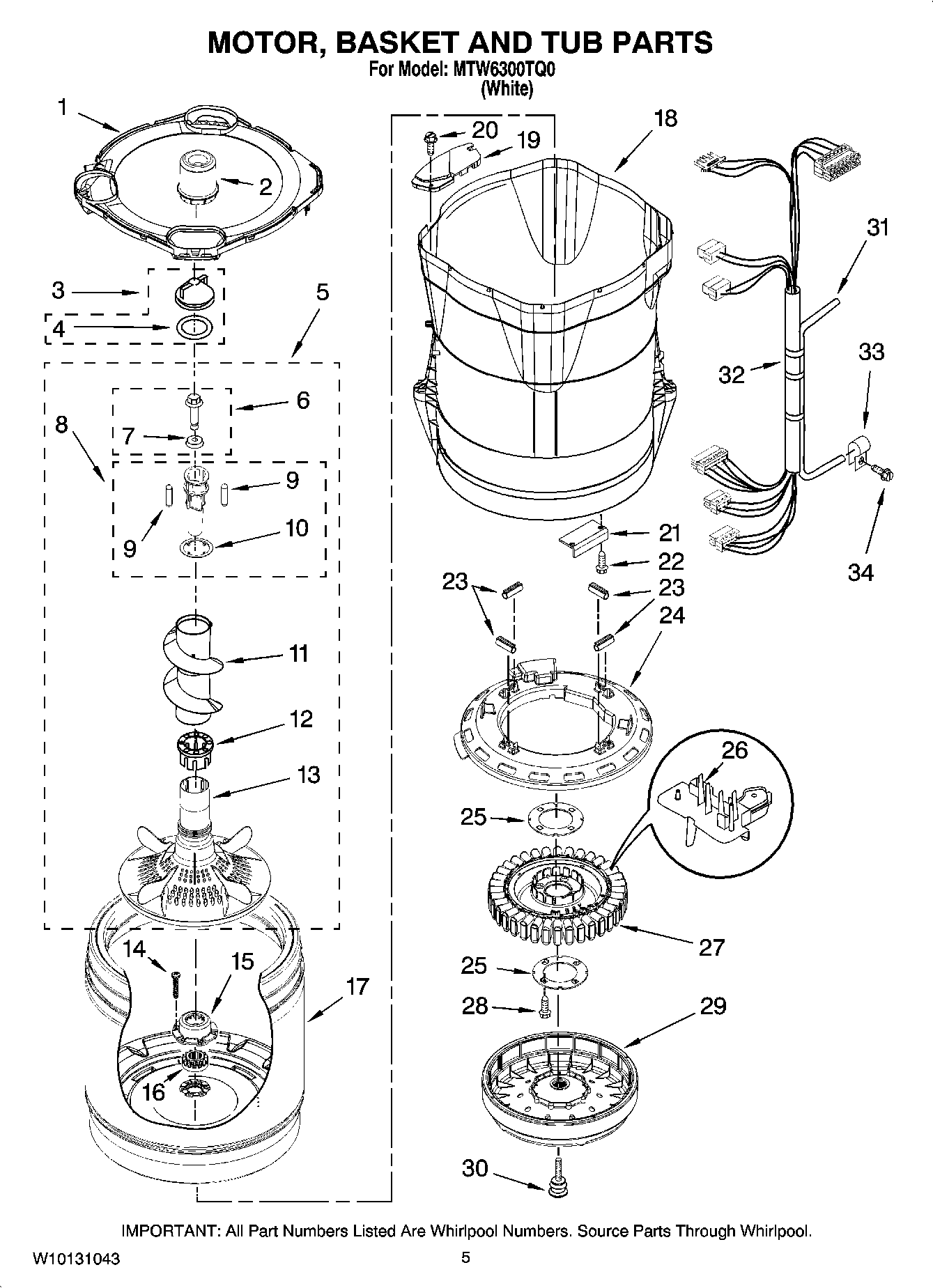

MTW6300TQ0 03 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY W10108420
2	MAY 8566491
3	MAY W10074580
4	MAY W10072840
5	MAY W10076310
6	MAY W10076270
7	MAY W10076260
8	MAY W10076210
9	MAY 8558884
10	MAY 8578563
11	MAY 8577284
12	Spacer, Thrust
13	MAY W10076190
14	SCREW
15	HUB, BASKET-DRIVEN
16	HUB, BASKET DRIVER
17	MAY W10118180
18	MAY 8572660
19	MAY 8566197
20	Screw
21	MAY 8542674
22	SCREW
23	MAY 8565172
24	Shield, Drive Motor (Includes Item 16)
25	PLATE, STATOR
26	MAY 8565188
27	MAY 8565170
28	MAY W10076010
29	ROTOR, MAIN DRIVE MOTOR
31	MAY 8572540
32	Harness, Lower (Includes Item 5)
33	CLAMP, CABLE
34	Screw
