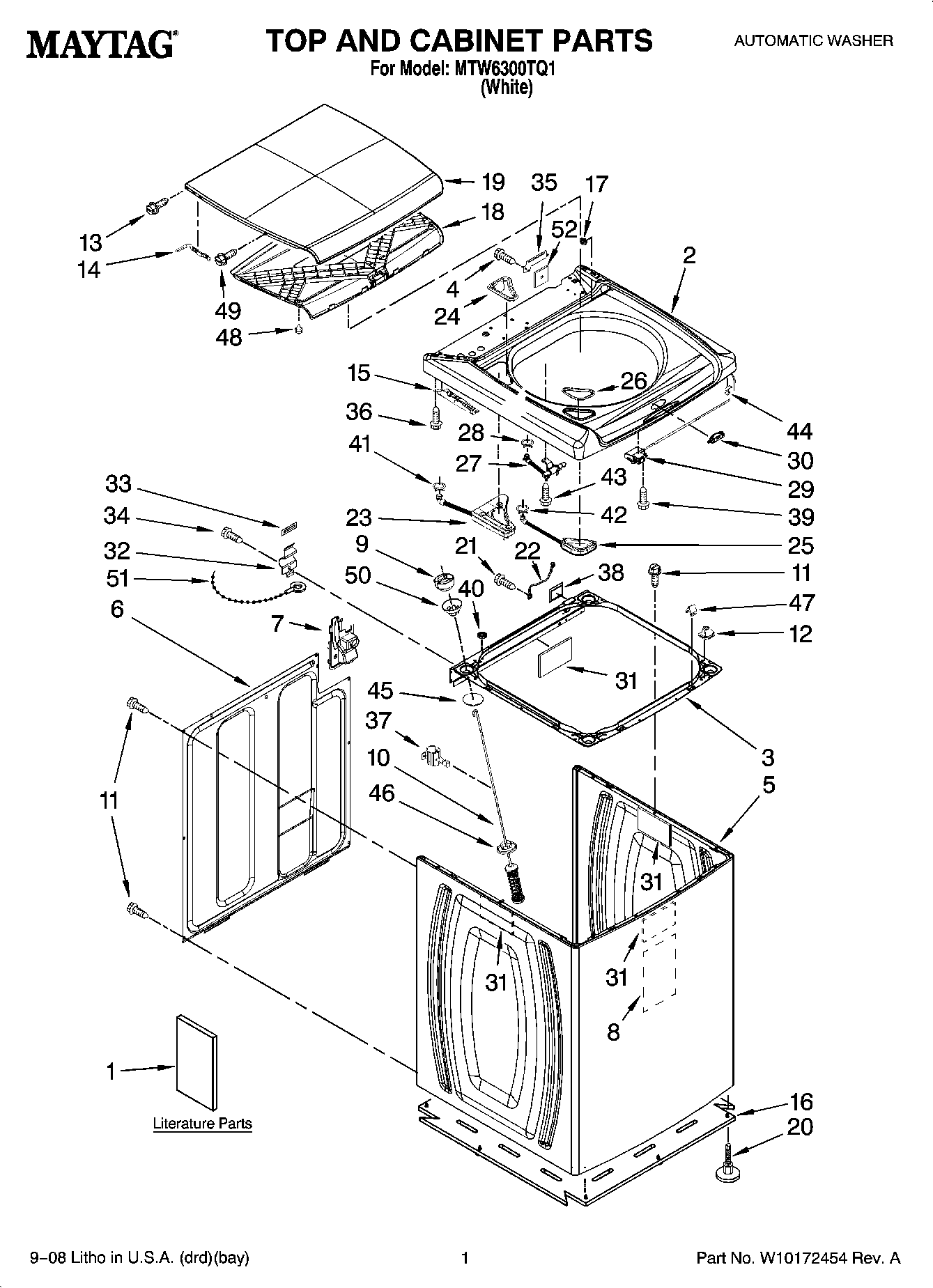

MTW6300TQ1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10092700
1	MAY W10092750
1	MAY W10092762
1	MAY 8577781
1	MAY W10092684
2	MAY 8565317
3	MAY W10162416
4	SCREW
5	Cabinet (White)
6	MAY 8566090
7	MAY W10160572
8	MAY 8576784
9	BALL, SUSPENSION (SET OF 4 – (INCLUDES ITEM 49))
10	Damper Assembly, Tub Suspension (Set Of 4-Includes Items 8,9,48 & 49)
11	MAY 1157158
12	MAY W10042120
13	SCREW, LID HINGE
14	MAY 8576780
15	MAY 8563958
15	MAY 8563959
16	Sound, Absober
17	MAY W10052730
18	MAY W10093736
19	MAY 8572894
20	MAY 8578826
21	Screw, 10-32 x 5/8
22	MAY 8281736
23	MAY W10161865
24	Bezel, Stain Remover Dispenser (White)
25	Dispenser, Detergent (White)
26	MAY 8576772
27	MAY W10106990
29	MAY W10059230
30	Bezel, Lid Lock (White)
31	MAY 8564458
32	MAY 8564456
33	Pad, Top Hinge (2)
34	SCREW
35	MAY 8563941
36	Screw
37	MAY 8543784
38	MAY 8578386
39	SCREW
40	MAY 8576476
41	MAY 370451
42	MAY 371503
43	SCREW, DISPENSER HOUSING MOUNTING
44	Clip, Wire (4)
45	MAY 8577896
46	MAY 8564017
47	LOCK, TOP-FRONT
48	MAY W10076780
49	MAY W10076920
50	MAY W10167599
51	CABLE TIE
52	TOP, FOAM SEAL
