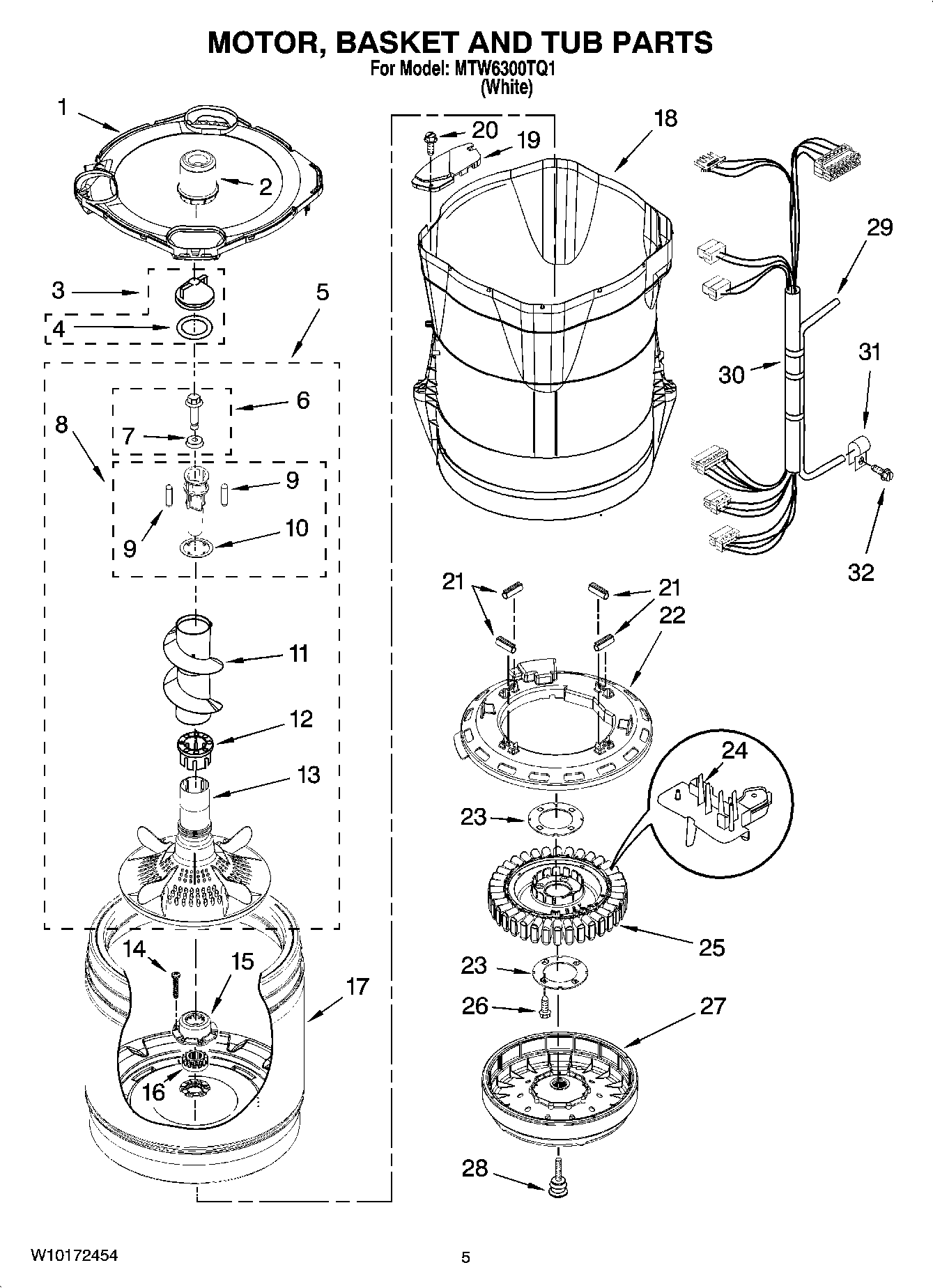

MTW6300TQ1 03 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY W10130806
2	MAY 8566491
3	MAY 3354733
4	MAY W10072840
5	MAY W10076310
6	MAY W10076270
7	MAY W10076260
8	MAY W10076210
9	MAY 8558884
10	MAY 8578563
11	MAY 8577284
12	Spacer, Thrust
13	MAY W10076190
14	SCREW
15	HUB, BASKET-DRIVEN
16	HUB, BASKET DRIVER
17	MAY W10118180
18	MAY W10128830
19	MAY 8566197
20	Screw
21	MAY 8565172
22	SHIELD, DRIVE MOTOR
23	PLATE, STATOR
24	MAY W10137685
25	MAY 8565170
26	SCREW
27	ROTOR, MAIN DRIVE MOTOR
29	MAY 8572540
30	MAY W10137697
31	CLAMP, CABLE
32	Screw
