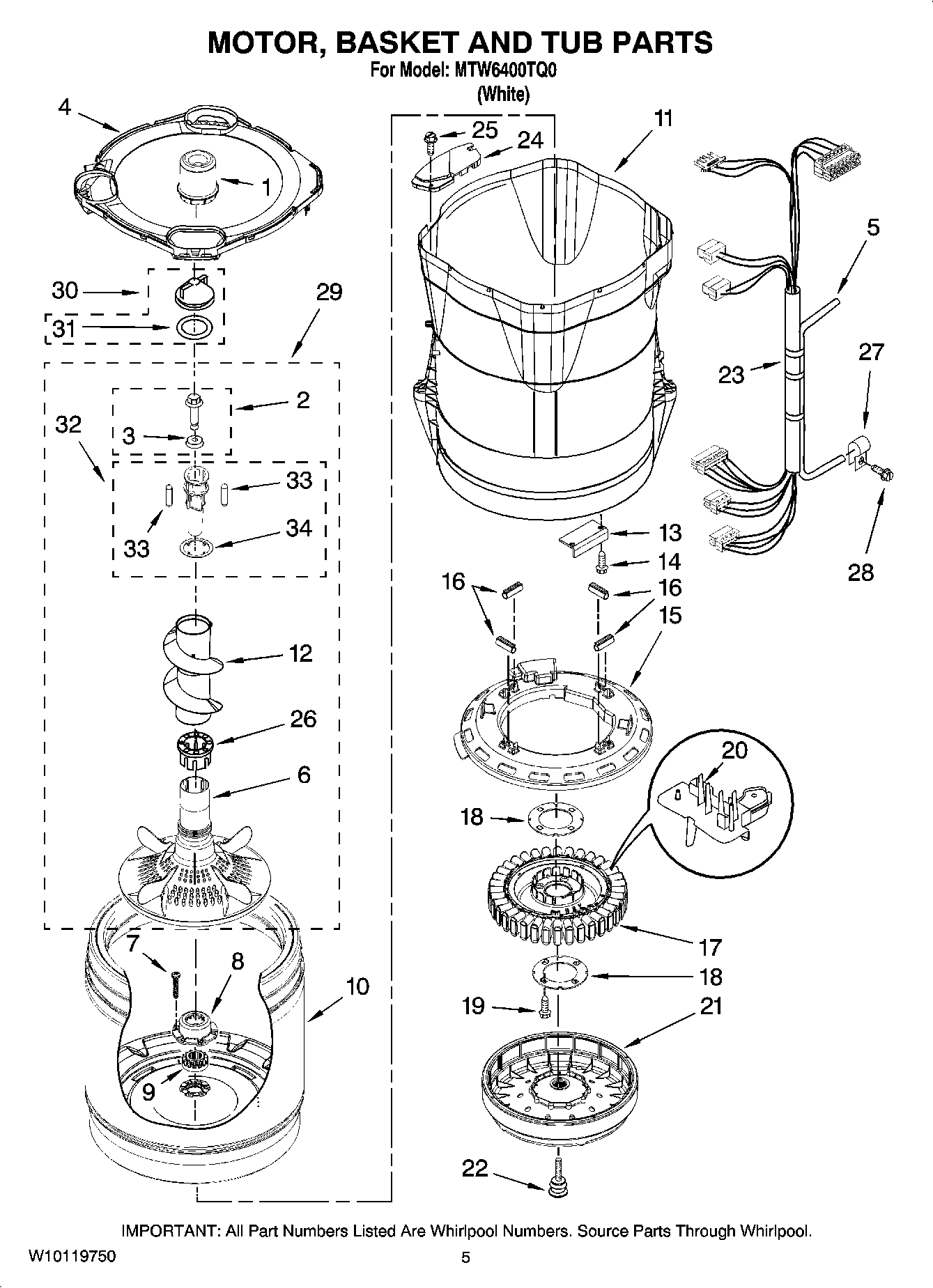

MTW6400TQ0 03 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8566491
2	MAY W10076270
3	MAY W10076260
4	MAY W10108420
5	MAY 8572540
6	MAY W10076190
7	SCREW
8	HUB, BASKET-DRIVEN
9	HUB, BASKET DRIVER
10	MAY W10118180
11	MAY 8572660
12	MAY 8577284
13	MAY 8542674
14	SCREW
15	Shield, Drive Motor (Includes Item 16)
16	MAY 8565172
17	MAY 8565170
18	PLATE, STATOR
19	MAY W10076010
20	MAY 8565188
21	ROTOR, MAIN DRIVE MOTOR
23	Harness, Lower (Includes Item 5)
24	MAY 8566197
25	Screw
26	Spacer, Thrust
27	CLAMP, CABLE
28	Screw
29	MAY W10076310
30	MAY W10074580
31	MAY W10072840
32	MAY W10076210
33	MAY 8558884
34	MAY 8578563
