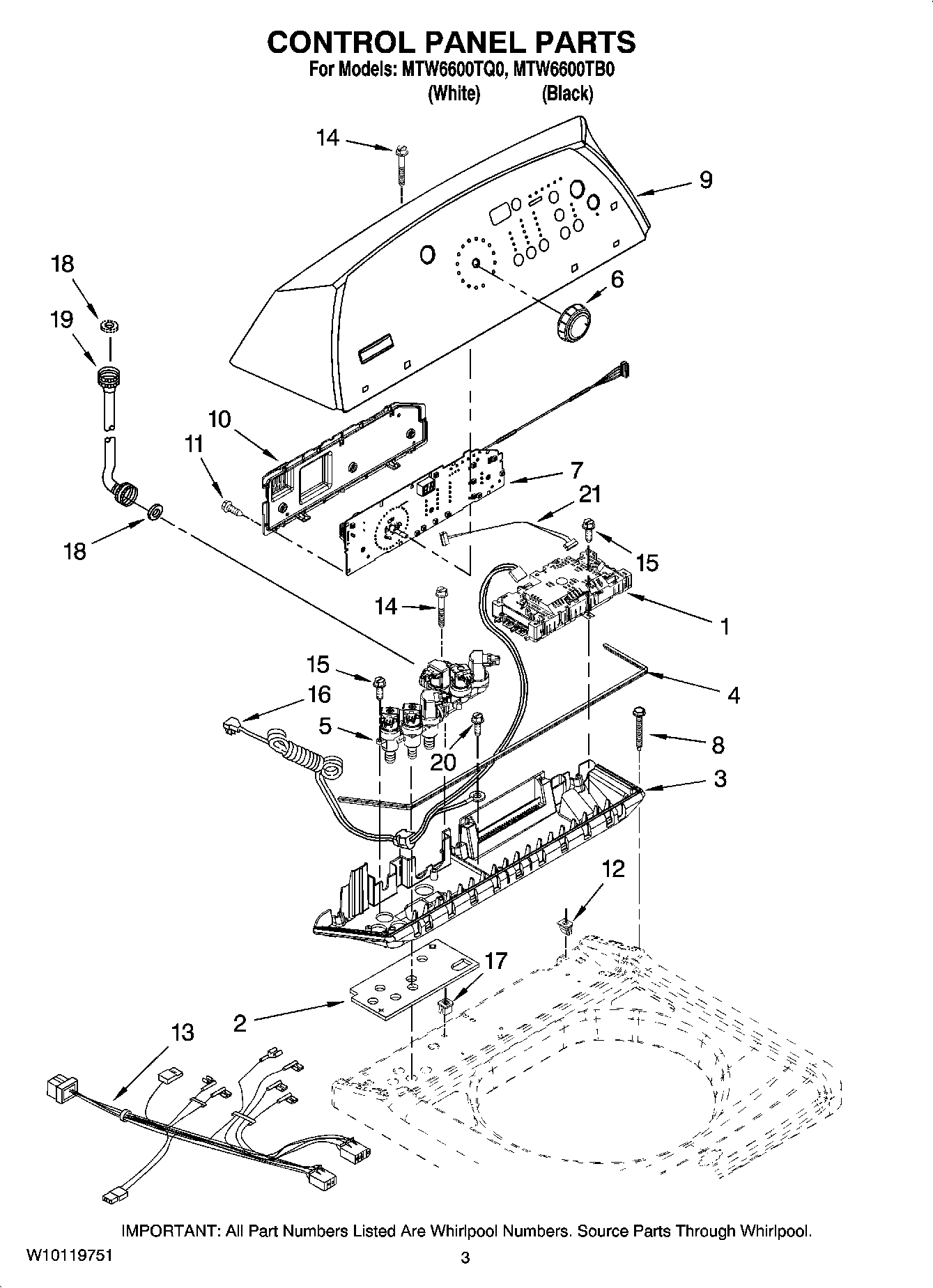

MTW6600TB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10112113
2	MAY 8565260
3	MAY 8565305
3	Tray Assembly, Console (Includes Items 2 & 4) (White)
4	MAY 8565259
5	MAY W10059320
6	MAY W10110196
7	MAY W10051092
8	SCREW
9	MAY W10090709
9	Console (White)
10	Cover, Rear
11	Screw, 6-19 x 3/64
12	NUT, PUSH IN
13	MAY W10045100
14	SCREW
15	SCREW
16	MAY 3407203
17	NUT, PUSH-IN
18	ACCESSORY PARTS, WASHER, INLET HOSE
19	Hose, Water Inlet (2) (Blue Coupler)
19	Hose, Water Inlet (Hot Water)
20	MAY 488649
21	MAY 3407187
