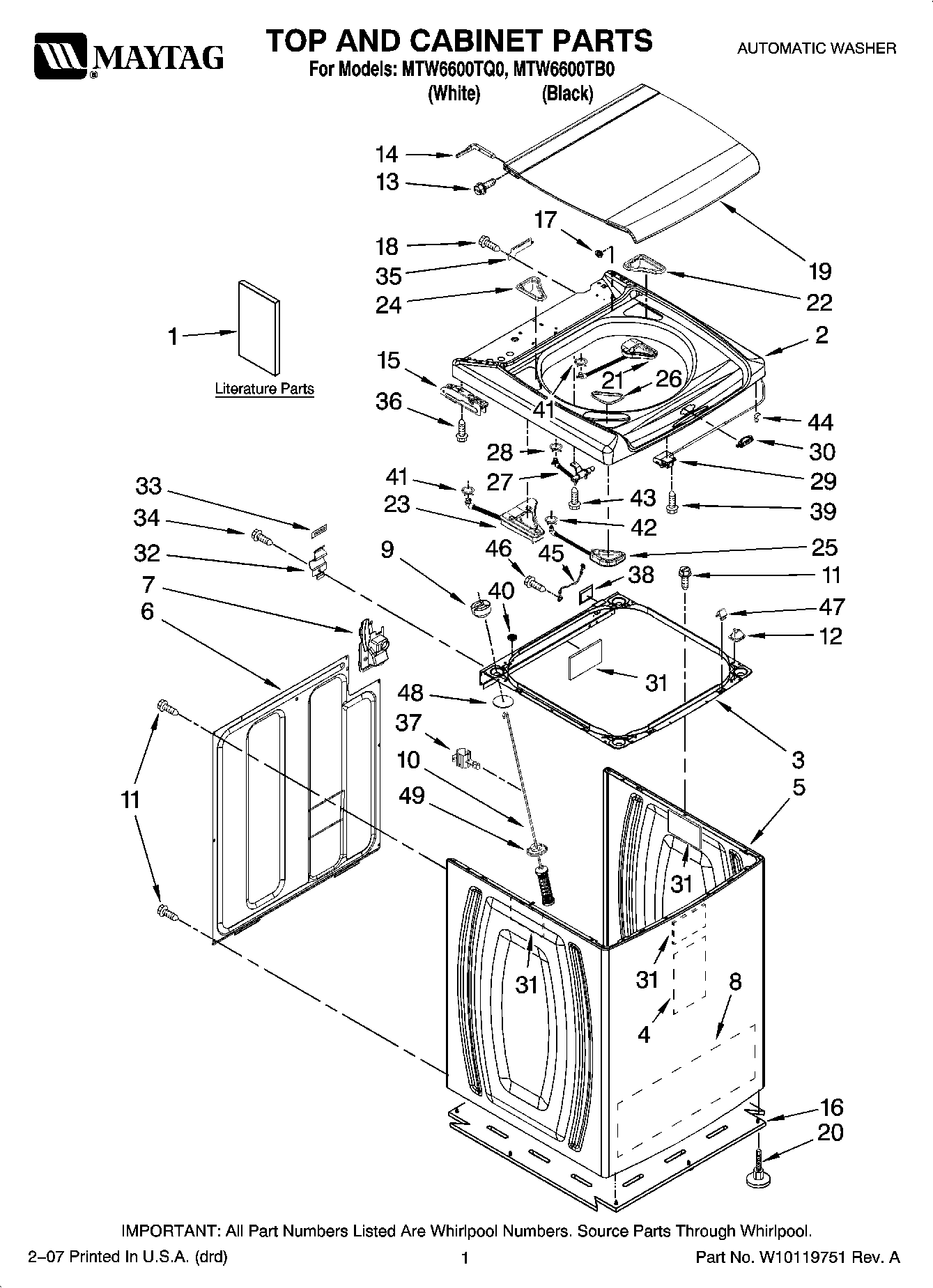

MTW6600TQ0 01 – TOP AND CABINET PARTSadmin2025-04-26T08:44:54+00:00MTW6600TQ0 01 – TOP AND CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY 8577781 |
| 1 | MAY W10092719 |
| 1 | MAY W10092700 |
| 1 | MAY W10092692 |
| 1 | MAY W10092685 |
| 2 | MAY W10053420 |
| 2 | Top (White) |
| 3 | MAY W10114656 |
| 4 | MAY 8576784 |
| 5 | MAY W10050330 |
| 5 | Cabinet (White) |
| 6 | MAY 8566090 |
| 7 | MAY 8543781 |
| 8 | MAY 8578225 |
| 9 | BALL, SUSPENSION (SET OF 4 - (INCLUDES ITEM 49)) |
| 10 | Damper Assembly, Tub Suspension (Set Of 4-Includes Items 47 & 48) |
| 11 | MAY 1157158 |
| 12 | MAY W10042120 |
| 13 | SCREW |
| 14 | HINGE, WIRE (LEFT) |
| 14 | HINGE, WIRE (RIGHT) |
| 15 | MAY 8563962 |
| 15 | MAY 8563963 |
| 16 | Sound, Absober |
| 17 | MAY W10052730 |
| 18 | SCREW |
| 19 | MAY W10114185 |
| 19 | Lid, Glass Assembly (White) |
| 20 | MAY 8578826 |
| 21 | MAY W10052680 |
| 21 | MAY W10059150 |
| 22 | MAY 8580017 |
| 22 | Bezel, Fabric Softener Dispenser (White) |
| 23 | Dispenser, Bleach (White) |
| 23 | MAY W10052700 |
| 24 | Bezel, Stain Remover Dispenser (Elephant) |
| 24 | Bezel, Stain Remover Dispenser (White) |
| 25 | MAY W10059180 |
| 25 | Dispenser, Detergent (White) |
| 26 | Bezel, Detergent Dispenser (Elephant) |
| 26 | Bezel, Detergent Dispenser (White) |
| 27 | MAY W10106990 |
| 29 | MAY W10059230 |
| 30 | Bezel, Lid Lock (White) |
| 30 | MAY W10052520 |
| 31 | MAY 8564458 |
| 32 | MAY 8564456 |
| 33 | Pad, Top Hinge (2) |
| 34 | SCREW |
| 35 | MAY 8563941 |
| 36 | Screw |
| 37 | MAY 8543784 |
| 38 | MAY 8578386 |
| 39 | SCREW |
| 40 | MAY 8576476 |
| 41 | MAY 370451 |
| 42 | MAY 371503 |
| 43 | SCREW, DISPENSER HOUSING MOUNTING |
| 44 | Clip, Wire (4) |
| 45 | MAY 8281736 |
| 46 | Screw, 10-32 x 5/8 |
| 47 | LOCK, TOP-FRONT |
| 48 | MAY 8577896 |
| 49 | MAY 8564017 |
