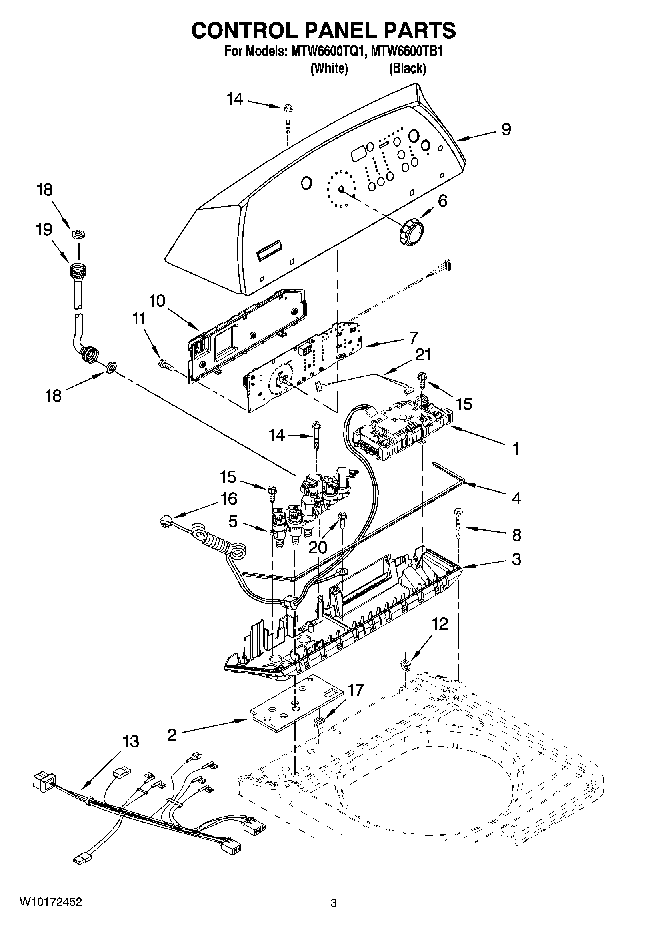

MTW6600TQ1 02 – CONTROL PANEL PARTSadmin2025-04-26T13:06:24+00:00MTW6600TQ1 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10155109 |
| 2 | MAY W10130502 |
| 3 | Tray Assembly, Console (Includes Items 2 & 4) (White) |
| 3 | MAY 8565305 |
| 4 | MAY 8565259 |
| 5 | MAY W10128457 |
| 6 | MAY W10110196 |
| 7 | MAY W10051092 |
| 8 | SCREW |
| 9 | Console (White) |
| 9 | MAY W10090709 |
| 10 | Cover, Rear |
| 11 | Screw, 6-19 x 3/64 |
| 12 | NUT, PUSH IN |
| 13 | Harness, Upper (Includes Item 21) |
| 14 | SCREW |
| 15 | SCREW |
| 16 | MAY 3407203 |
| 17 | NUT, PUSH-IN |
| 18 | ACCESSORY PARTS, WASHER, INLET HOSE |
| 19 | Hose, Water Inlet (2) (Blue Coupler) |
| 19 | Hose, Water Inlet (Hot Water) |
| 20 | SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8) |
| 21 | MAY 3407187 |
