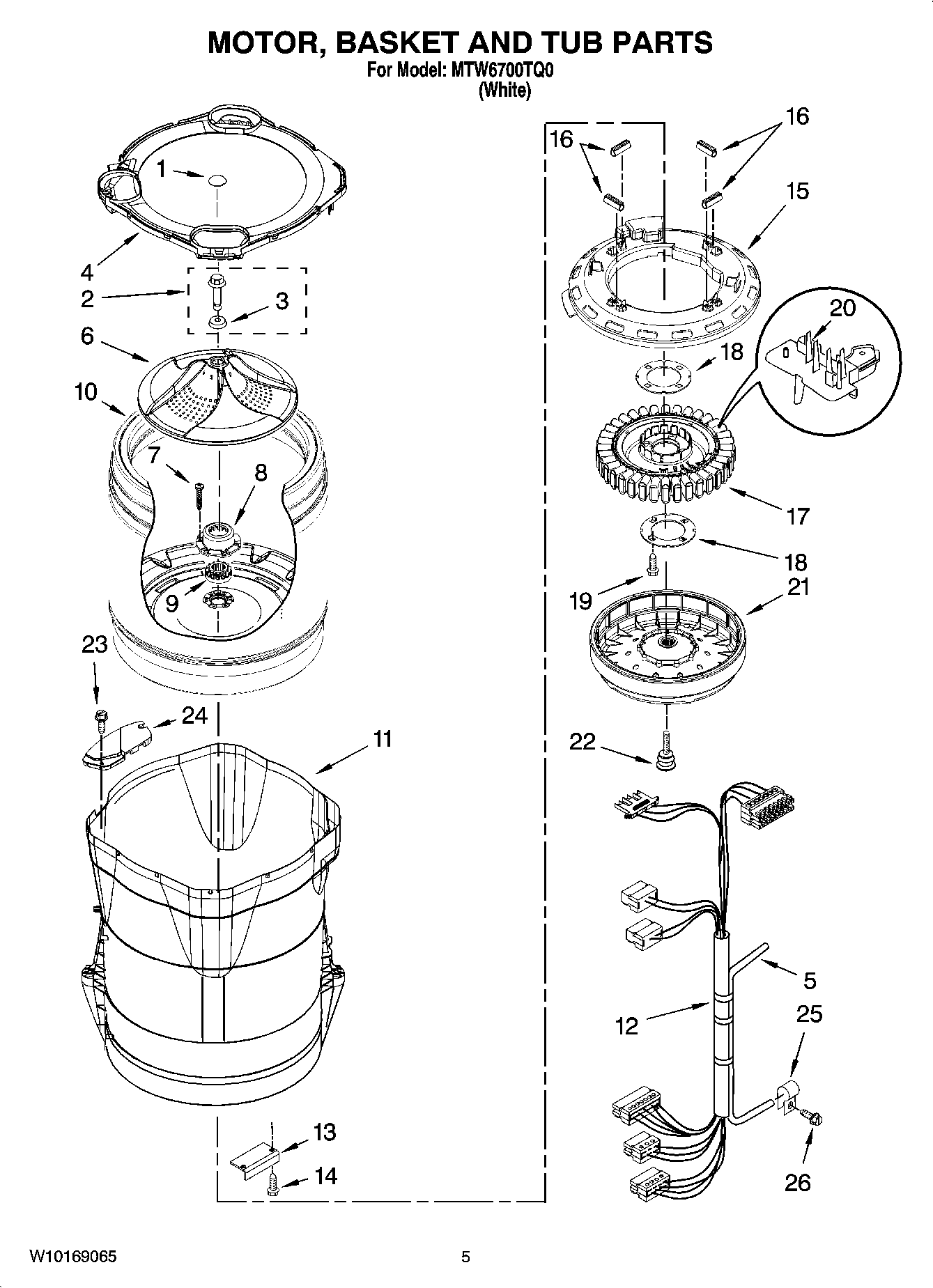

MTW6700TQ0 03 – MOTOR, BASKET AND TUB PARTS

MTW6700TQ0 03 – MOTOR, BASKET AND TUB PARTS

Written by

in

MTW6700TQ0 03 – MOTOR, BASKET AND TUB PARTS

Products

PositionProduct
1MAY W10106600
2MAY W10076270
3MAY W10076260
4MAY W10130807
5MAY 8572540
6MAY W10141017
7SCREW
8HUB, BASKET-DRIVEN
9HUB, BASKET DRIVER
10MAY W10118182
11MAY W10128830
12Harness, Lower (Includes Item 5)
13MAY 8542674
14SCREW
15SHIELD, DRIVE MOTOR
16MAY 8565172
17MAY 8565170
18PLATE, STATOR
19SCREW
20MAY 8565188
21ROTOR, MAIN DRIVE MOTOR
23Screw
24MAY 8566197
25CLAMP, CABLE
26Screw
