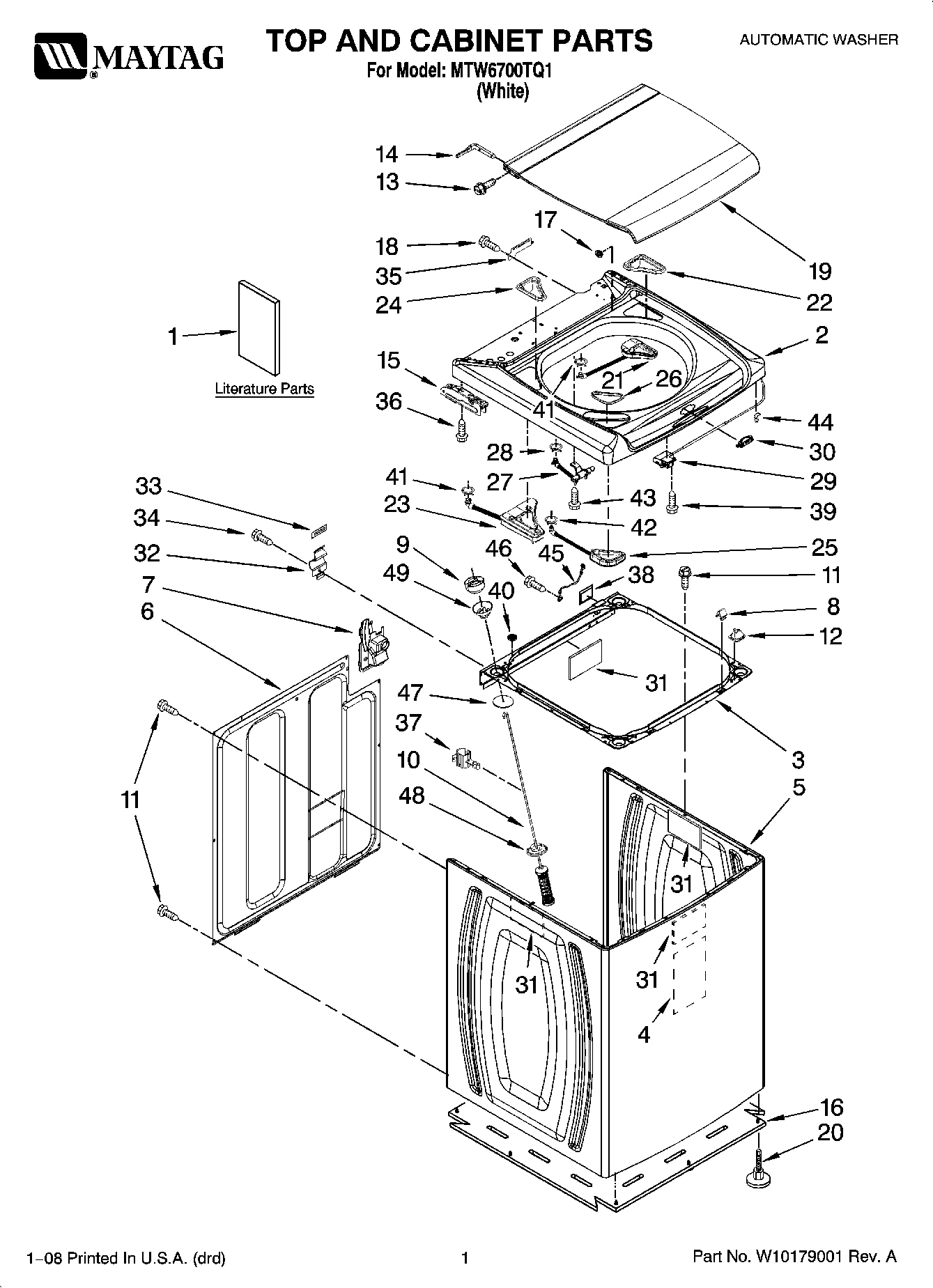

MTW6700TQ1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY 8577781
1	MAY W10092760
1	MAY W10092756
1	MAY W10092753
1	MAY W10092754
2	Top (White)
3	MAY W10162416
4	MAY 8576784
5	Cabinet (White)
6	MAY 8566090
7	MAY W10160572
8	LOCK, TOP-FRONT
9	BALL, SUSPENSION (SET OF 4 – (INCLUDES ITEM 49))
10	Damper Assembly, Tub Suspension (Set Of 4-Includes Items 8,9,48 & 49)
11	MAY 1157158
12	MAY W10042120
13	SCREW
14	HINGE, WIRE (RIGHT)
14	HINGE, WIRE (LEFT)
15	MAY 8563962
15	MAY 8563963
16	Sound, Absober
17	MAY W10052730
18	SCREW
19	MAY W10131142
20	MAY 8578826
21	MAY W10059150
22	MAY W10137015
23	MAY W10161865
24	Bezel, Stain Remover Dispenser (White)
25	Dispenser, Detergent (White)
26	Bezel, Detergent Dispenser (White)
27	MAY W10106990
29	MAY W10059230
30	Bezel, Lid Lock (White)
31	MAY 8564458
32	MAY 8564456
33	Pad, Top Hinge (2)
34	SCREW
35	MAY 8563941
36	Screw
37	MAY 8543784
38	MAY 8578386
39	SCREW
40	MAY 8576476
41	MAY 370451
42	MAY 371503
43	SCREW, DISPENSER HOUSING MOUNTING
44	Clip, Wire (4)
45	MAY 8281736
46	Screw, 10-32 x 5/8
47	MAY 8577896
48	MAY 8564017
49	MAY W10167599
