MTW6700TQ1 03 – MOTOR, BASKET AND TUB PARTS – Aparts

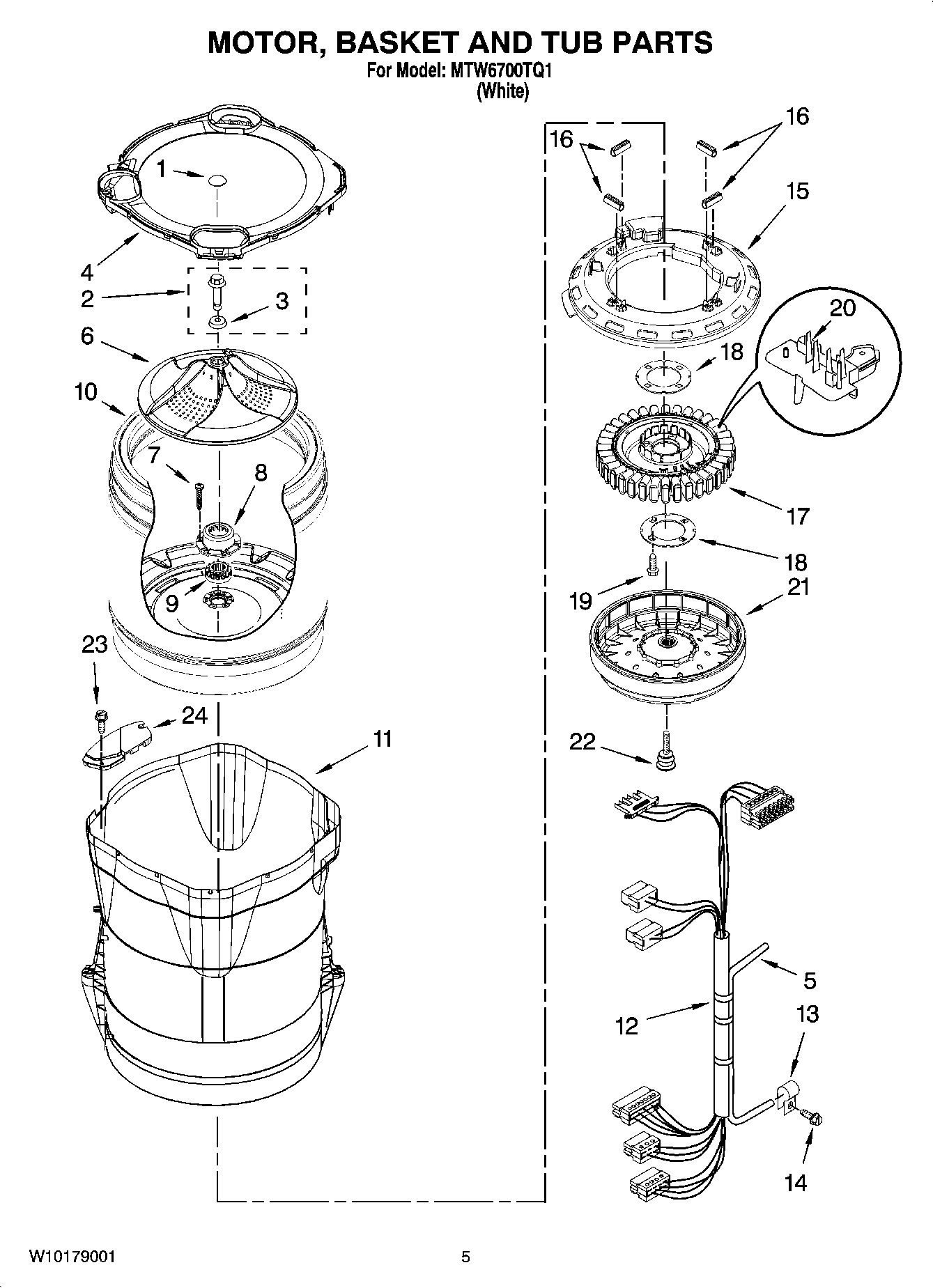

MTW6700TQ1 03 – MOTOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY W10106600
2	MAY W10076270
3	MAY W10076260
4	MAY W10130807
5	MAY 8572540
6	MAY W10141017
7	SCREW
8	HUB, BASKET-DRIVEN
9	HUB, BASKET DRIVER
10	MAY W10118182
11	MAY W10128830
12	MAY W10137697
13	CLAMP, CABLE
14	Screw
15	SHIELD, DRIVE MOTOR
16	MAY 8565172
17	MAY 8565170
18	PLATE, STATOR
19	SCREW
20	MAY W10137685
21	ROTOR, MAIN DRIVE MOTOR
23	Screw
24	MAY 8566197
