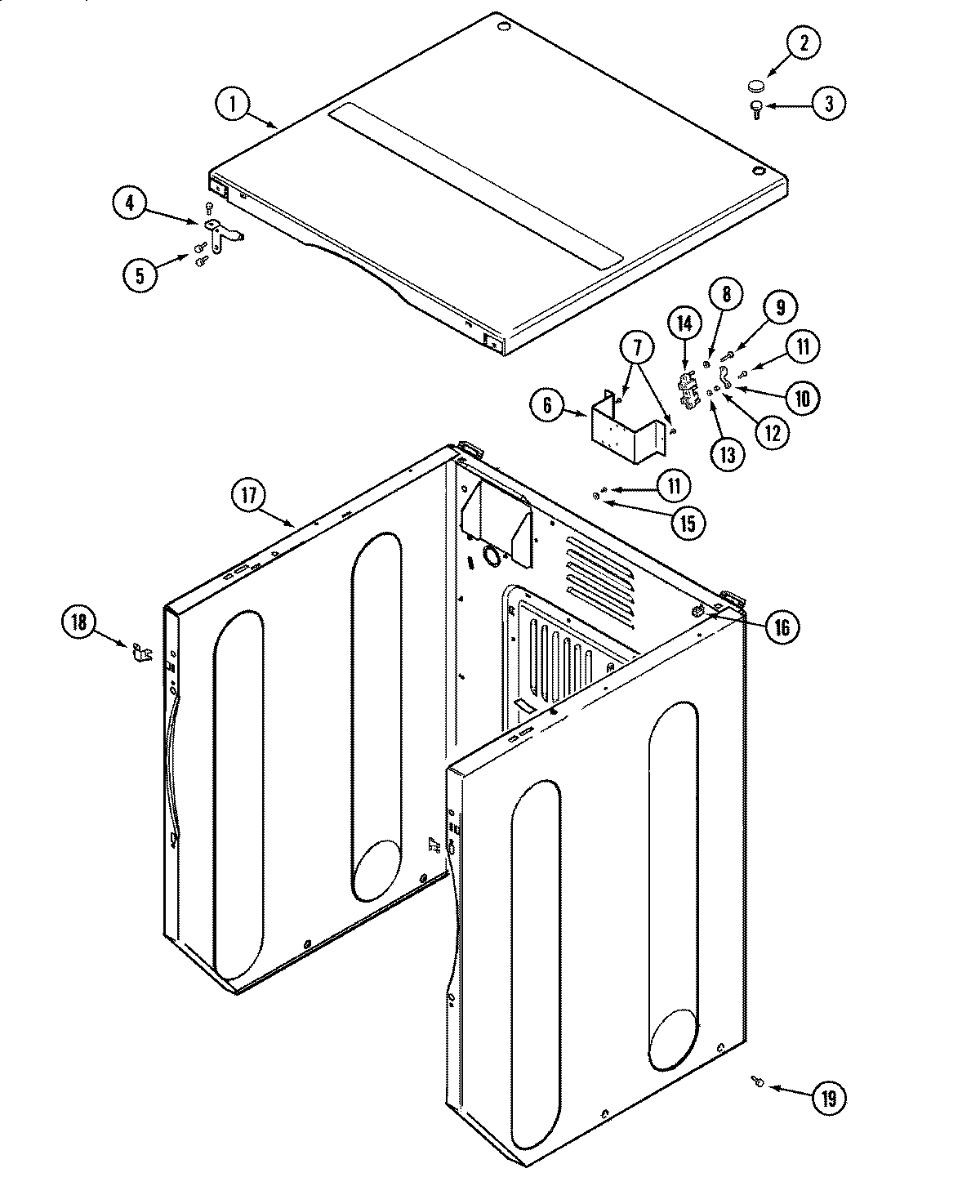

MUE15MNAGW 01 – CABINET-FRONT (UPPER)

MUE15MNAGW 01 – CABINET-FRONT (UPPER)

Written by

in

MUE15MNAGW 01 – CABINET-FRONT (UPPER)

Products

PositionProduct
1MAY 33001995
2MAY 33001997
3MAY 22001883
4MAY 33001999
4MAY 33001998
6MAY 33001826
7W11573574 Whirlpool Screw
8WPY311270 Whirlpool Washer TE
9SCREW, No.10-24 X 3/4 INCH—–O
10PART NOT USED
11W10850756 Whirlpool Screw
12WP112432 Whirlpool Nut Assembly
13WP311093 Whirlpool Washer 7
14W11705611 Whirlpool Block Ter
15MAY 313363
16WP22001502 Whirlpool Fastener
17MAY 33002000
18MAY 33001980
19213007 Whirlpool Screw #12
