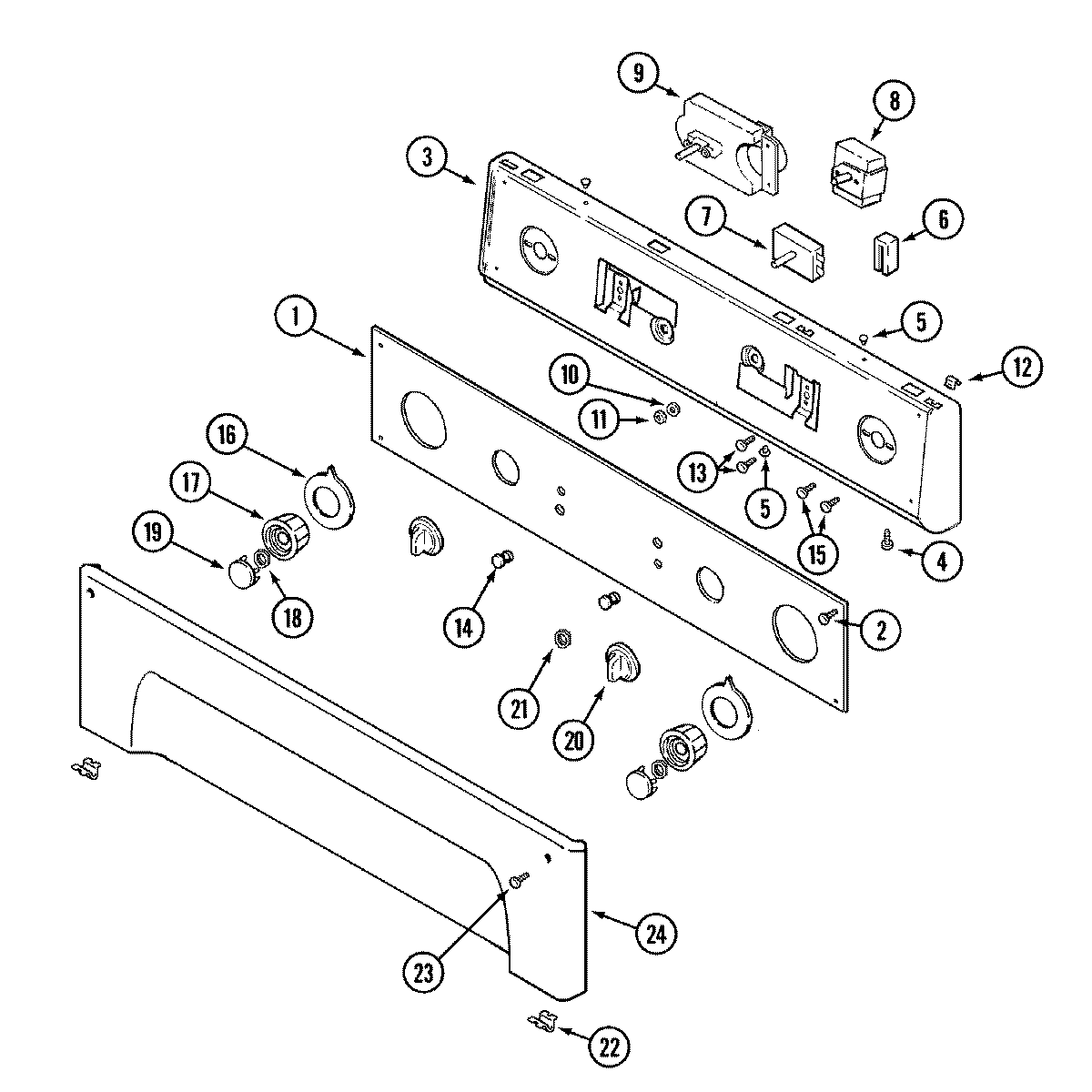

MUE15MNAGW 03 – CONTROL PANEL

MUE15MNAGW 03 – CONTROL PANEL

Written by

in

MUE15MNAGW 03 – CONTROL PANEL

Products

PositionProduct
1MAY 33002070
3MAY 33002003
3MAY 33002071
5MAY 33001132
6W10139459 Whirlpool Light Assembly
7WPW10149462 Whirlpool Push-to-Start Switch
8MAY 307253
9MAY Y307496
10WPW10139799 Whirlpool Washer
11MAY Y312706
12MAY 33001977
14WP215564 Whirlpool Indicator Lens
15WP488234 Whirlpool Air Conditioner Screw
16MAY 33001500
18W10155650 Whirlpool Nut
19WPW10133501 Whirlpool Cap
20MAY 205663
21MAY Y312702
22MAY 33001980
23WPW10131119 Whirlpool Screw
24MAY 33002072
25MAY 33002086
