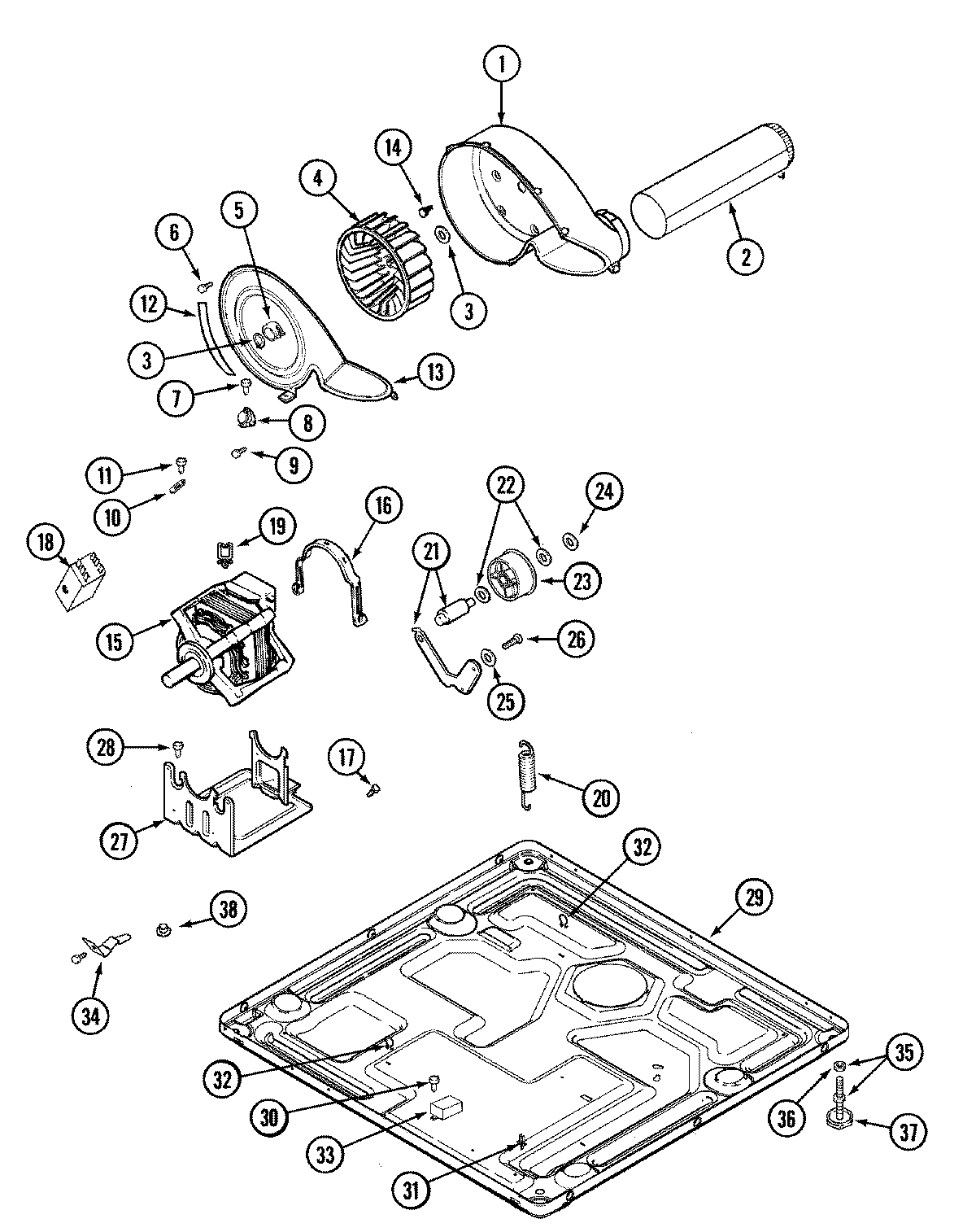

MUE15MNAGW 06 – MOTOR DRIVE

Products

Position	Product
1	WP33001789 Whirlpool Blower Housing Assembly
2	MAY 33001800
3	WP9703438 Whirlpool Snap Retaining Ring
4	33001790 Whirlpool Blower Wheel
5	WP312967 Whirlpool Clamp
6	WP3400065 Whirlpool Refrigerator Screw
8	MAY 33001306
8	PART NOT USED
8	WP694674 Whirlpool Cycling Thermostat
9	WP489128 Whirlpool Refrigerator Screw
10	WP33001762 Whirlpool Dryer Thermal Fuse
11	MAY 314848
12	MAY 33001772
13	MAY 33001796
14	MAY 314818
15	MAY 33002463
15	MAY 33001945
15	W10197708 Whirlpool Drive Motor Assembly
16	WPY015825 Whirlpool Motor Clip
17	MAY 910343
18	MAY 33002451
19	MAY 33002040
20	33002459 Whirlpool Idler Spring
20	MAY 33002157
20	MAY 33002461
21	WP6-3705180 Whirlpool Idler Pulley Lever
22	MAY Y312527
23	WP6-3700340 Whirlpool Belt Tension Pulley Wheel
24	WP354987 Whirlpool C-Clip
25	WP315772 Whirlpool Sleeve
26	WPY014874 Whirlpool Screw
27	MAY 33001752
27	MAY 33002466
28	MAY Y313561
29	MAY 33002048
29	MAY 33002467
29	MAY 33002041
29	MAY 33002049
29	MAY 33002465
29	MAY 33002050
29	MAY 314568
31	MAY 315471
32	MAY 410490
34	W11573574 Whirlpool Screw
34	MAY 33002042
34	MAY 33002043
38	MAY 33002044
