MUE15PDAYA 03 – CABINET-FRONT (UPPER)

MUE15PDAYA 03 – CABINET-FRONT (UPPER)

Written by

in

MUE15PDAYA 03 – CABINET-FRONT (UPPER)

Products

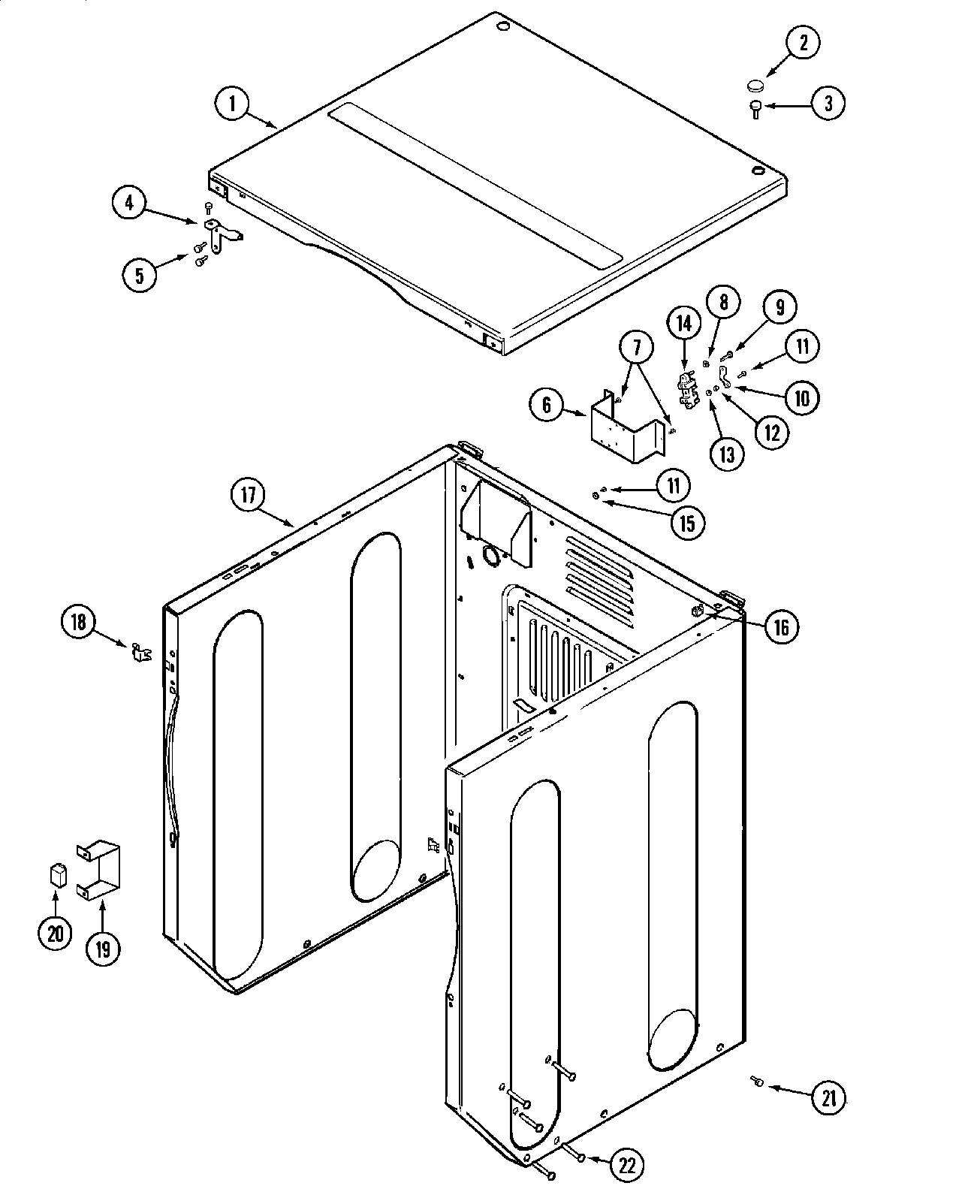

PositionProduct
001MAY 33001995
002MAY 33001997
003MAY 22001883
004MAY 33001999
004MAY 33001998
007W11573574 Whirlpool Screw
008WPY311270 Whirlpool Washer TE
009SCREW, No.10-24 X 3/4 INCH—–O
010PART NOT USED
012WP112432 Whirlpool Nut Assembly
013WP311093 Whirlpool Washer 7
014W11705611 Whirlpool Block Ter
016WP22001502 Whirlpool Fastener
017DOWEL PIN FOR HANDLE
018MAY 33001980
019MAY 33002002
019MAY Y310632
019MAY Y313561
020MAY 206824
020WP3177991 Whirlpool Screw
021213007 Whirlpool Screw #12
022MAY 33001991
