MUE2000AYM 01 – BASE (WASHER)

MUE2000AYM 01 – BASE (WASHER)

Written by

in

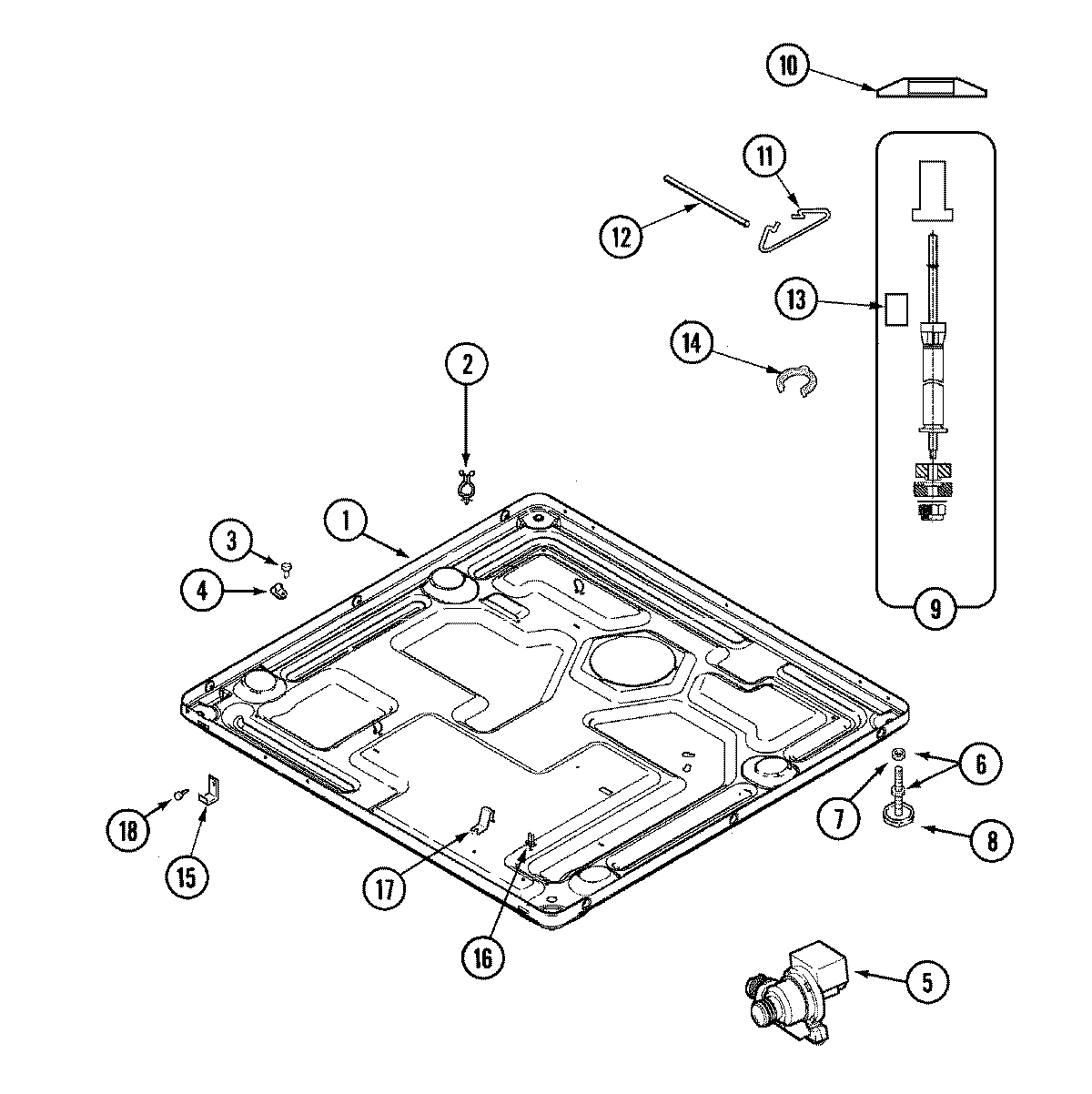

MUE2000AYM 01 – BASE (WASHER)

Products

PositionProduct
122003435 Whirlpool Assembly P1 Base O/S1
1MAY 22003580
2MAY 33001989
2MAY 315471
3MAY Y313561
4WP308605 Whirlpool Refrigerator Clamp
5WP22003059 Whirlpool Pump Motor
5MAY 22001982
6WP8563585 Whirlpool Foot Assembly
7WP62739 Whirlpool Nut
8WP210684 Whirlpool Dishwasher Leveling Leg Pad
9MAY 22001988
10DEFLECTOR, WATER (ON LEFT STRUT ONLY)
11MAY 33002223
12MAY 33002224
13MAY 22002307
13NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14MAY 22003080
15MAY 22002239
16MAY Y313262
17MAY 22002244
18SCREW, WATER VALVE BRACKET
