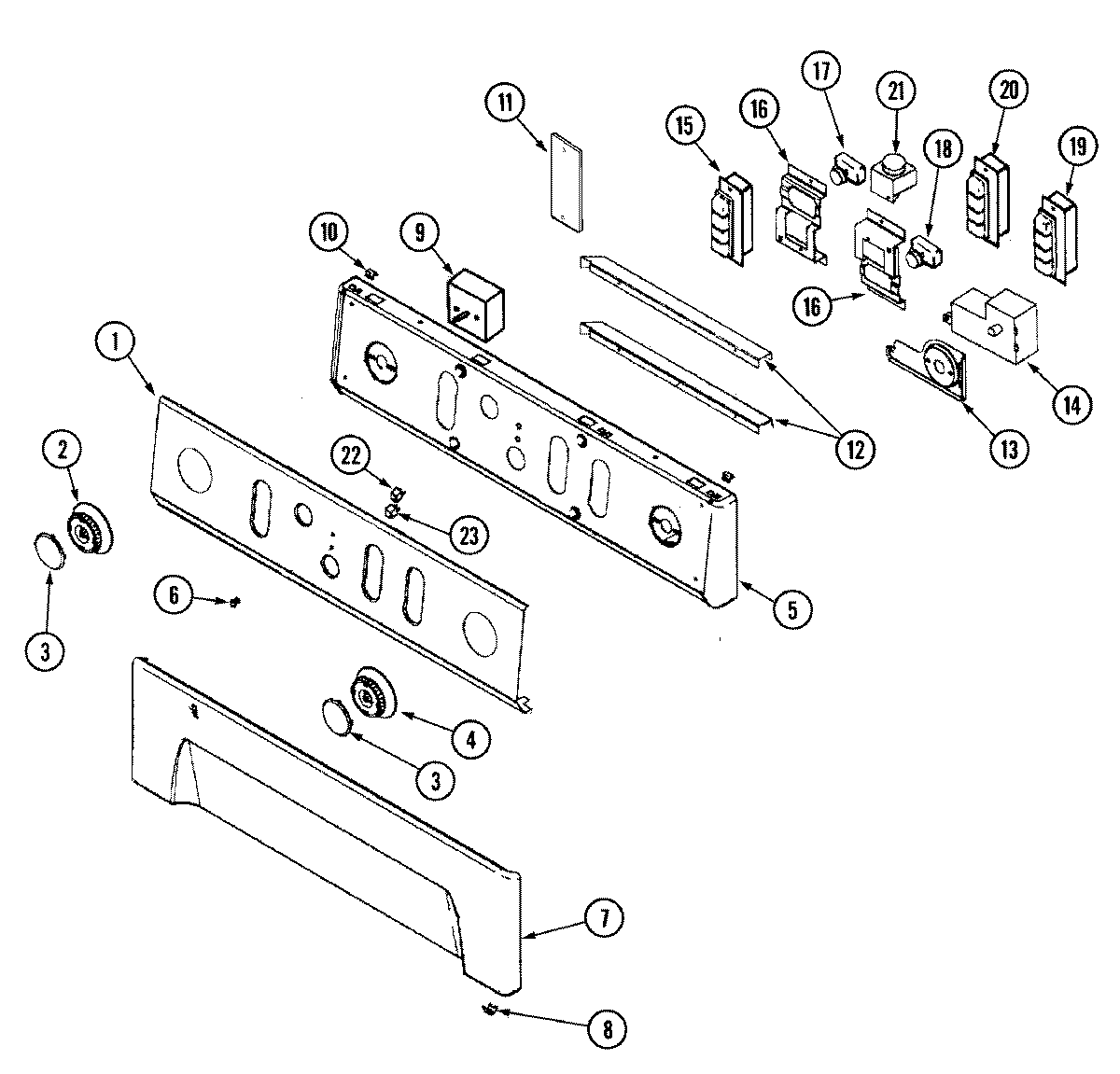

MUE2000AYM 06 – CONTROL PANEL (DRYER)

MUE2000AYM 06 – CONTROL PANEL (DRYER)

Written by

in

MUE2000AYM 06 – CONTROL PANEL (DRYER)

Products

PositionProduct
1MAY 22002460
2MAY 33002132
3WP22001664 Whirlpool Timer Knob
4MAY 22002461
5MAY 22002514
6WP7730P011-60 Whirlpool Indicator Lens
7MAY 22002063
7MAY 33002004
7MAY 33002072
8MAY 33001980
9WP33002109 Whirlpool Timer
10MAY 33001977
11WP33001212 Whirlpool Electronic Control Board
12MAY 22002515
12SCREW
12MAY 315471
13WP489399 Whirlpool Refrigerator Screw
13MAY 22002516
14WP22002452 Whirlpool Timer
16MAY Y310632
16MAY 22002518
17MAY 33001861
18MAY 33002219
19MAY 22002453
20MAY 22002455
21MAY 315317
21MAY 33001848
22MAY 22002281
23WP903115 Whirlpool Dishwasher Indicator Light
24MAY 22002694
24MAY 22003014
25MAY 22002524
26MAY 33002225
27MAY 33002235
