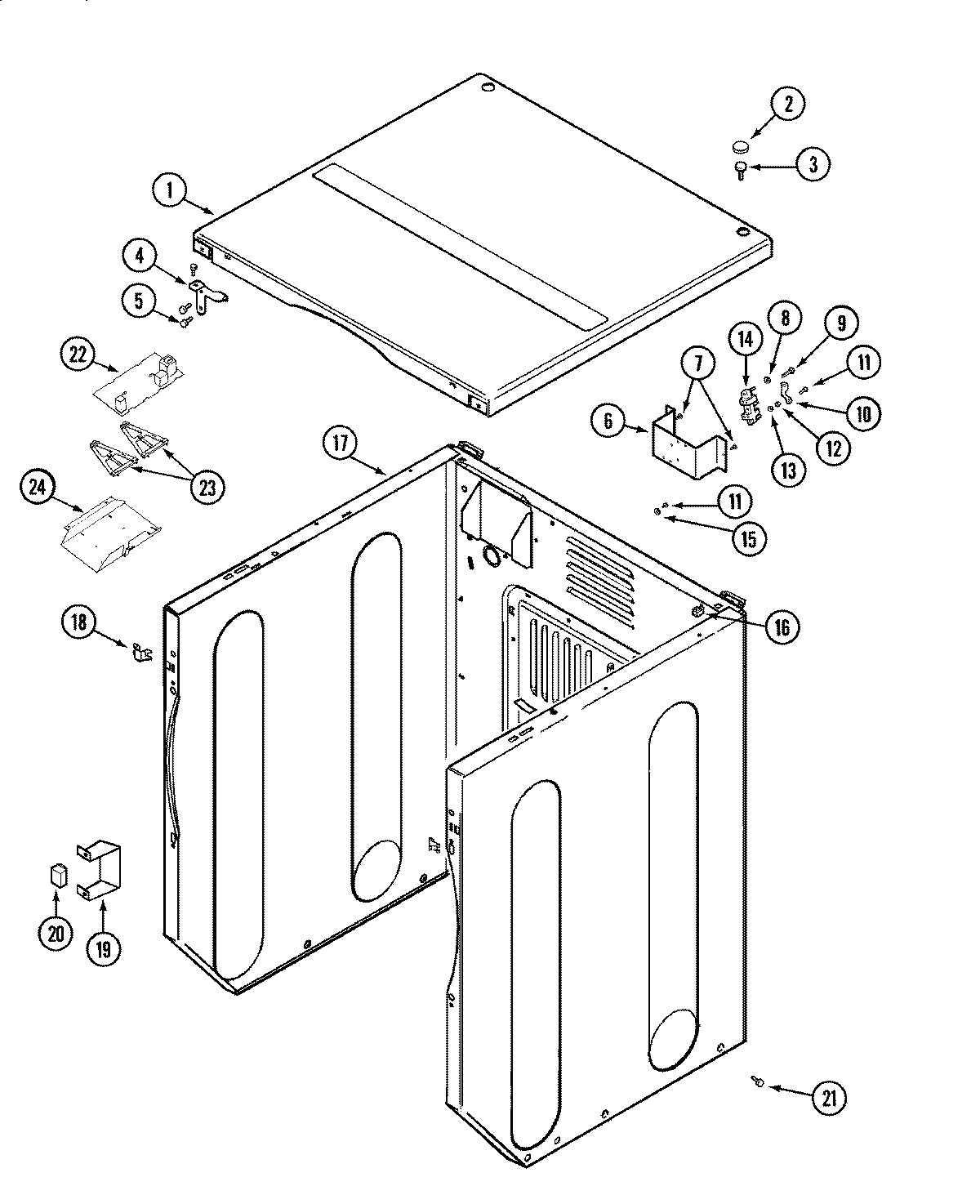

MUE2000AYW 02 – CABINET-FRONT (DRYER)

MUE2000AYW 02 – CABINET-FRONT (DRYER)

Written by

in

MUE2000AYW 02 – CABINET-FRONT (DRYER)

Products

PositionProduct
1MAY 33001995
2MAY 33001997
3MAY 22001883
4MAY 33001999
4MAY 33001998
6MAY 33001826
7W11573574 Whirlpool Screw
8WPY311270 Whirlpool Washer TE
9SCREW, No.10-24 X 3/4 INCH—–O
10PART NOT USED
11W10850756 Whirlpool Screw
12WP112432 Whirlpool Nut Assembly
13WP311093 Whirlpool Washer 7
14W11705611 Whirlpool Block Ter
15MAY 313363
16WP22001502 Whirlpool Fastener
17MAY 33002003
17MAY 33002277
18MAY 33001980
19MAY Y313561
19MAY Y310632
19MAY 33002002
20WP3177991 Whirlpool Screw
20WP8566493 Whirlpool Relay
21213007 Whirlpool Screw #12
22M0282005 Whirlpool Nut
22MAY 22002451
23MAY 22002284
24MAY 22002519
