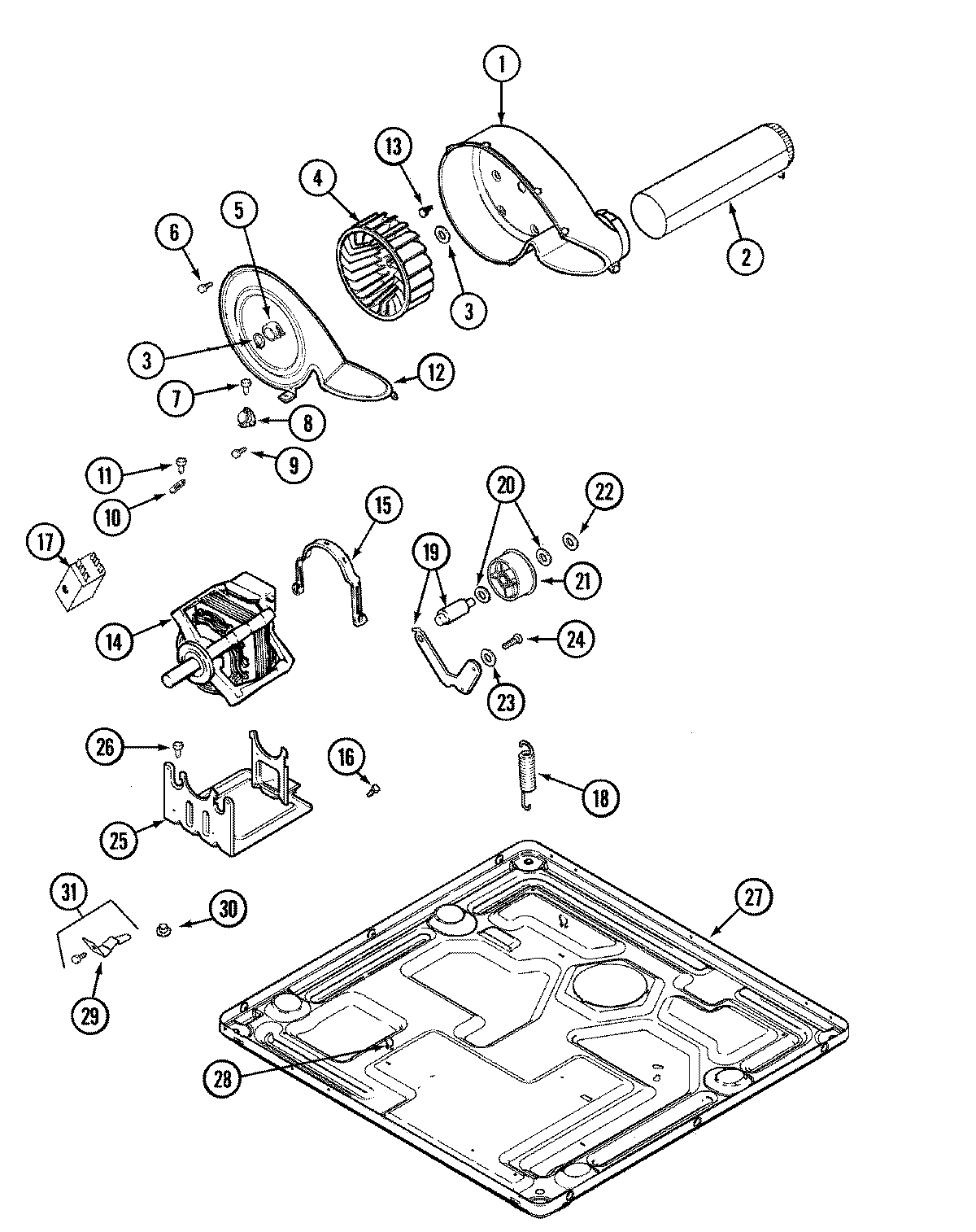

MUE2000AYW 14 – MOTOR DRIVE (DRYER)

Products

Position	Product
1	WP33001789 Whirlpool Blower Housing Assembly
2	DUCT ASSY., EXHAUST
2	MAY 33002321
3	WP9703438 Whirlpool Snap Retaining Ring
4	33001790 Whirlpool Blower Wheel
5	WP312967 Whirlpool Clamp
6	WP3400065 Whirlpool Refrigerator Screw
8	WP3387137 Whirlpool Thermostat
10	WP33001762 Whirlpool Dryer Thermal Fuse
11	WP489128 Whirlpool Refrigerator Screw
12	MAY 33001873
13	MAY 314818
14	W10410997 Whirlpool Drive Motor
14	MAY 33002237
14	MAY 33002462
15	WPY015825 Whirlpool Motor Clip
16	MAY 910343
17	MAY 33001854
18	33002459 Whirlpool Idler Spring
18	MAY 33002157
18	MAY 33002461
19	WP6-3705180 Whirlpool Idler Pulley Lever
20	MAY Y312527
21	WP6-3700340 Whirlpool Belt Tension Pulley Wheel
22	WP354987 Whirlpool C-Clip
23	WP315772 Whirlpool Sleeve
24	WPY014874 Whirlpool Screw
25	MAY 33001752
25	MAY 33002466
26	MAY Y313561
27	MAY 33002041
27	MAY 33002623
27	MAY 33002050
27	MAY 33002049
27	MAY 33002467
27	MAY 314568
28	MAY 410490
29	MAY 33002043
29	W11573574 Whirlpool Screw
29	MAY 33002042
30	MAY 33002044
31	(INCL RT/LT BRKT & SCREWS)
