MUE2000AZW 09 – DOOR (DRYER)

MUE2000AZW 09 – DOOR (DRYER)

Written by

in

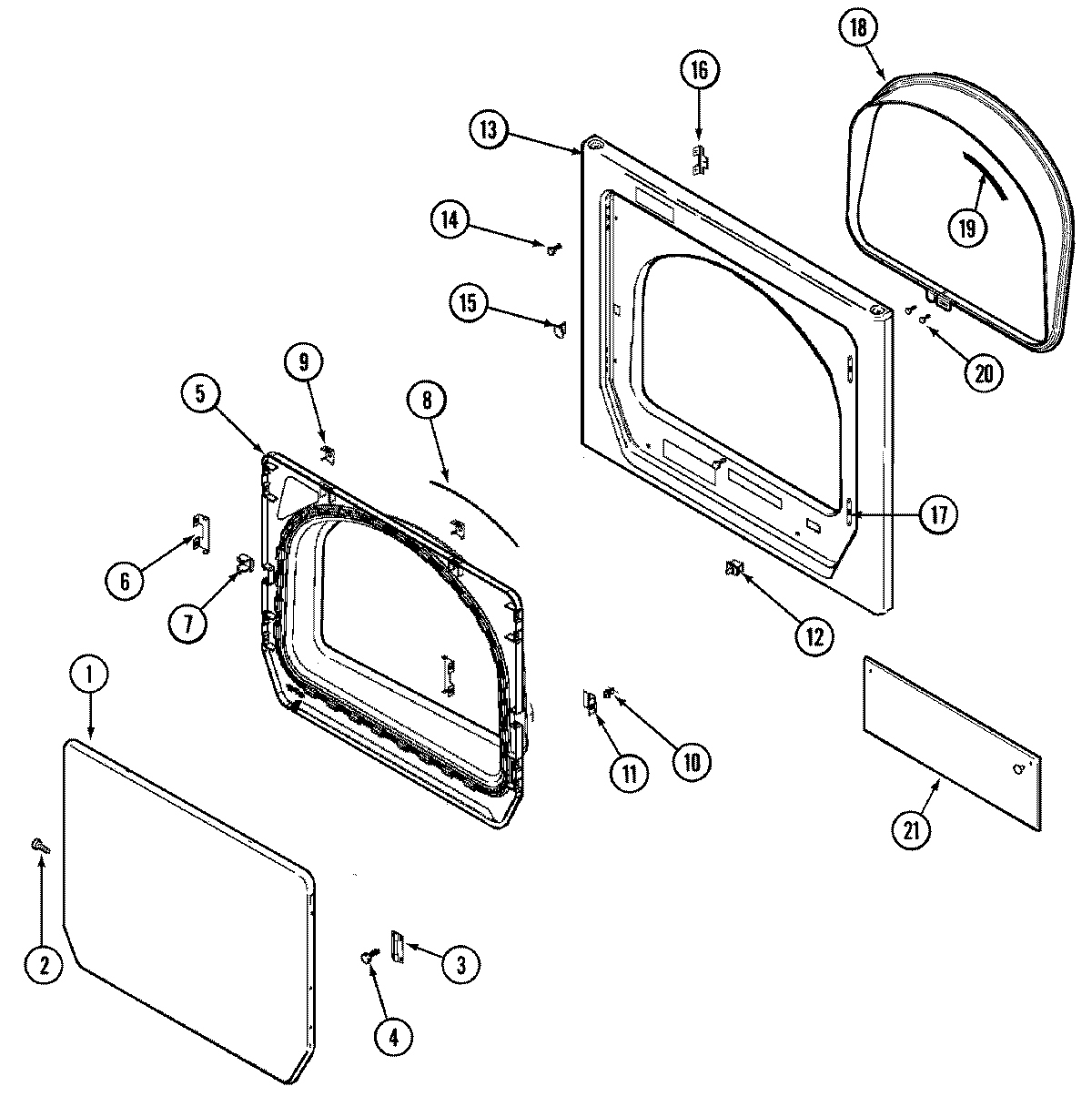

MUE2000AZW 09 – DOOR (DRYER)

Products

PositionProduct
1MAY 33002079
2MAY 22002063
3MAY 33002017
4WP98006631 Whirlpool Screw
5MAY 22002520
6MAY 22002038
7MAY 33002111
8WP33002094 Whirlpool Door Seal
9MAY 22002039
10MAY 33001761
11WP33001793 Whirlpool Bracket Spring
12W10169313 Whirlpool Door Switch Kit
13MAY 33002081
13SCREW, FRONT PANEL
14WP98008544 Whirlpool Screw Assembly
15306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
16MAY 33002025
17MAY 33001175
18MAY 33002026
19MAY 33001767
20WP3400065 Whirlpool Refrigerator Screw
21MAY 33002048
21MAY 22002521
