MUG15PDAWW 01 – CONTROL PANEL – Aparts

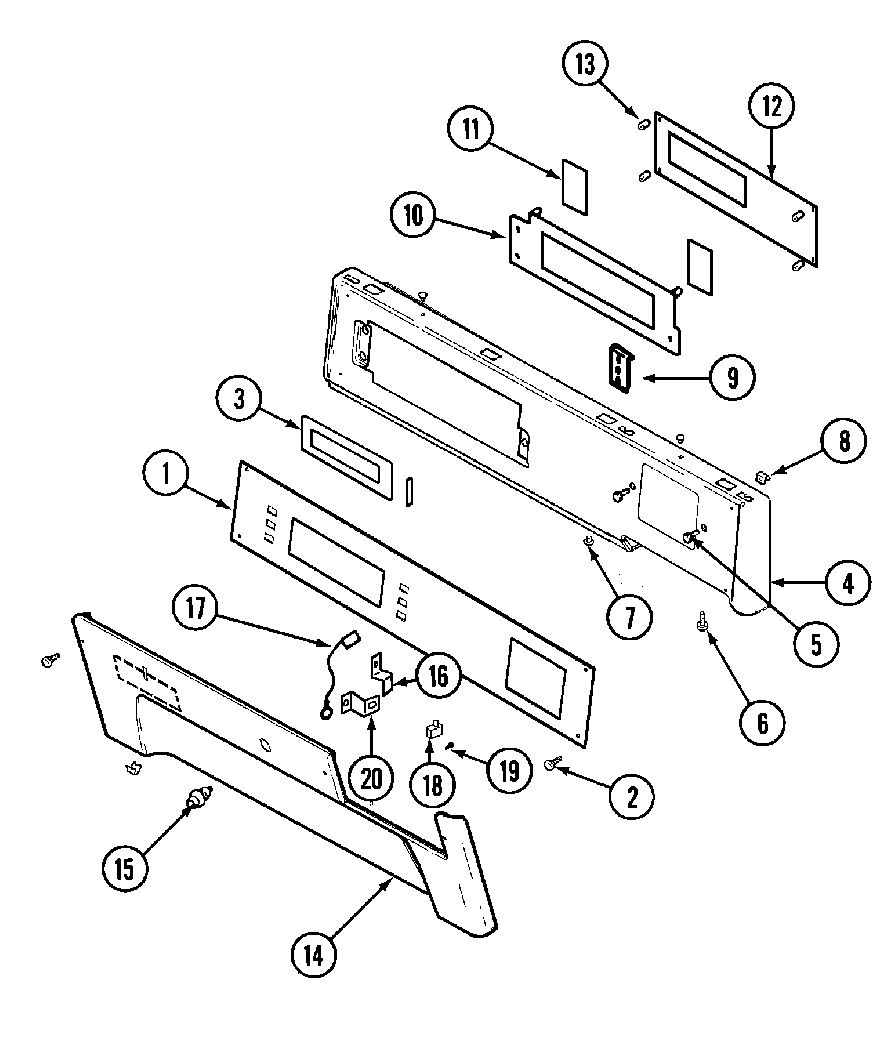

MUG15PDAWW 01 – CONTROL PANEL

Products

Position	Product
001	MAY 33001974
003	MAY 33001209
004	MAY 33002003
004	MAY 33001976
004	MAY 33001975
005	MAY 910186
005	WP98006631 Whirlpool Screw
007	MAY 33001168
007	MAY 33001132
008	MAY 33001977
009	WP33001156 Whirlpool Button
010	MAY 33001201
011	MAY 33001200
012	CIRCUIT BOARD ASSEMBLY
013	M0282005 Whirlpool Nut
013	MAY 33001204
014	MAY 33001978
014	WPW10131119 Whirlpool Screw
014	MAY 33001979
014	MAY 33002004
014	MAY 33001980
015	LOCK, ACCESS DOOR
016	W11165684 Whirlpool Cam
017	MAY 33001981
018	WPW10447152 Whirlpool VLT Switch
019	MAY 912012
020	MAY 33001982
021	MAY 33002052
022	MAY 33002060
023	DOWEL PIN FOR HANDLE
023	W11573574 Whirlpool Screw
