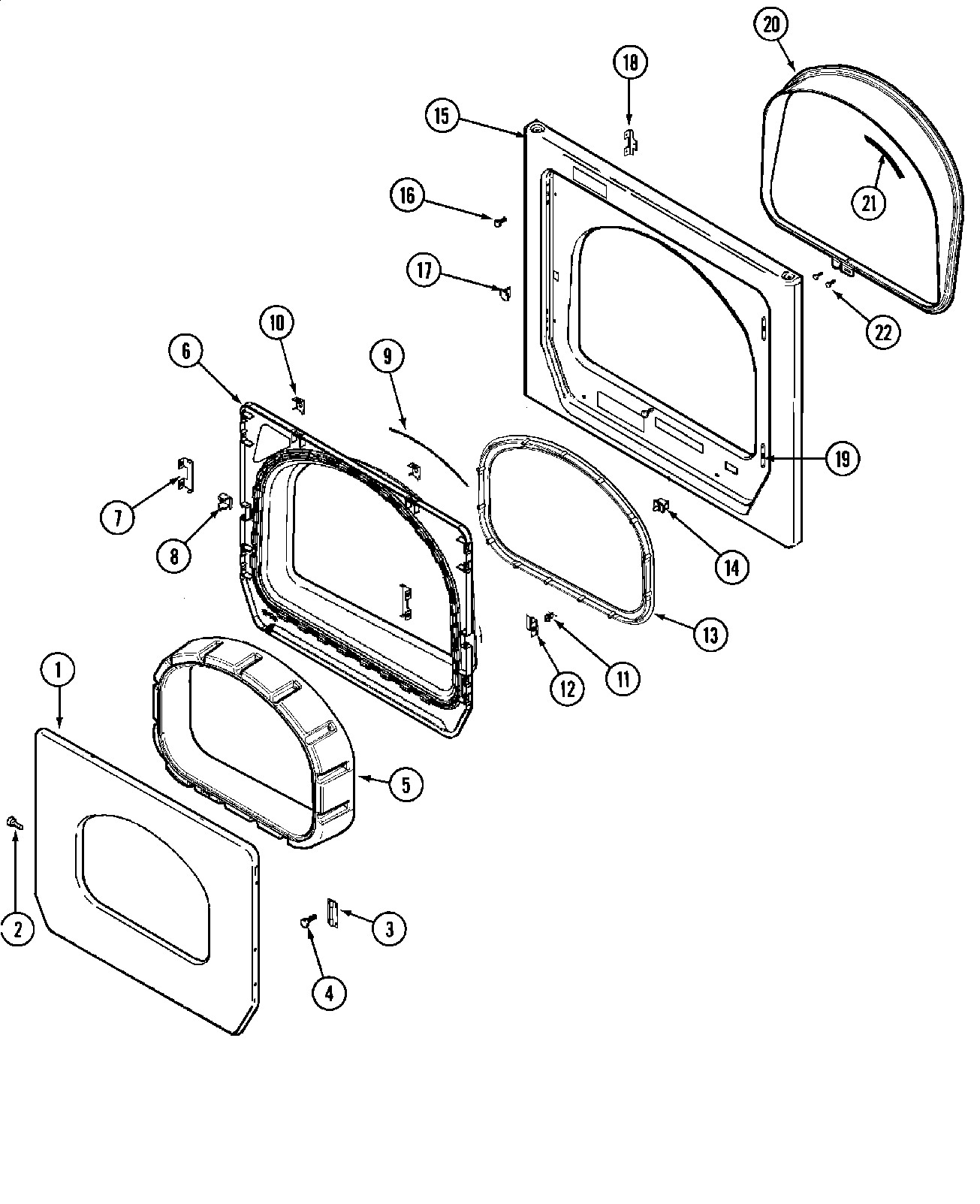

MUG15PDAXA 04 – DOOR (UPPER)

Products

Position	Product
001	MAY 33002015
002	SCREW
002	MAY 22002063
003	MAY 33002017
004	WP98006631 Whirlpool Screw
005	WP9740848 Whirlpool Dishwasher Screw
005	33002780 Whirlpool Tunnel Door Handle (White)
005	MAY 33002019
006	MAY 33002020
006	DOWEL PIN FOR HANDLE
007	MAY 22002038
008	MAY 33001763
009	WP33002094 Whirlpool Door Seal
010	MAY 22002039
011	MAY 33001761
012	WP33001793 Whirlpool Bracket Spring
013	MAY 33002022
014	MAY 33002038
015	MAY 33002023
015	SCREW, FRONT PANEL
015	(UPR-ALM)
015	MAY 33001711
016	WP98008544 Whirlpool Screw Assembly
017	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
018	MAY 33002025
019	MAY 33001175
019	MAY 33001176
020	MAY 33002026
021	MAY 33001767
022	WP3400065 Whirlpool Refrigerator Screw
