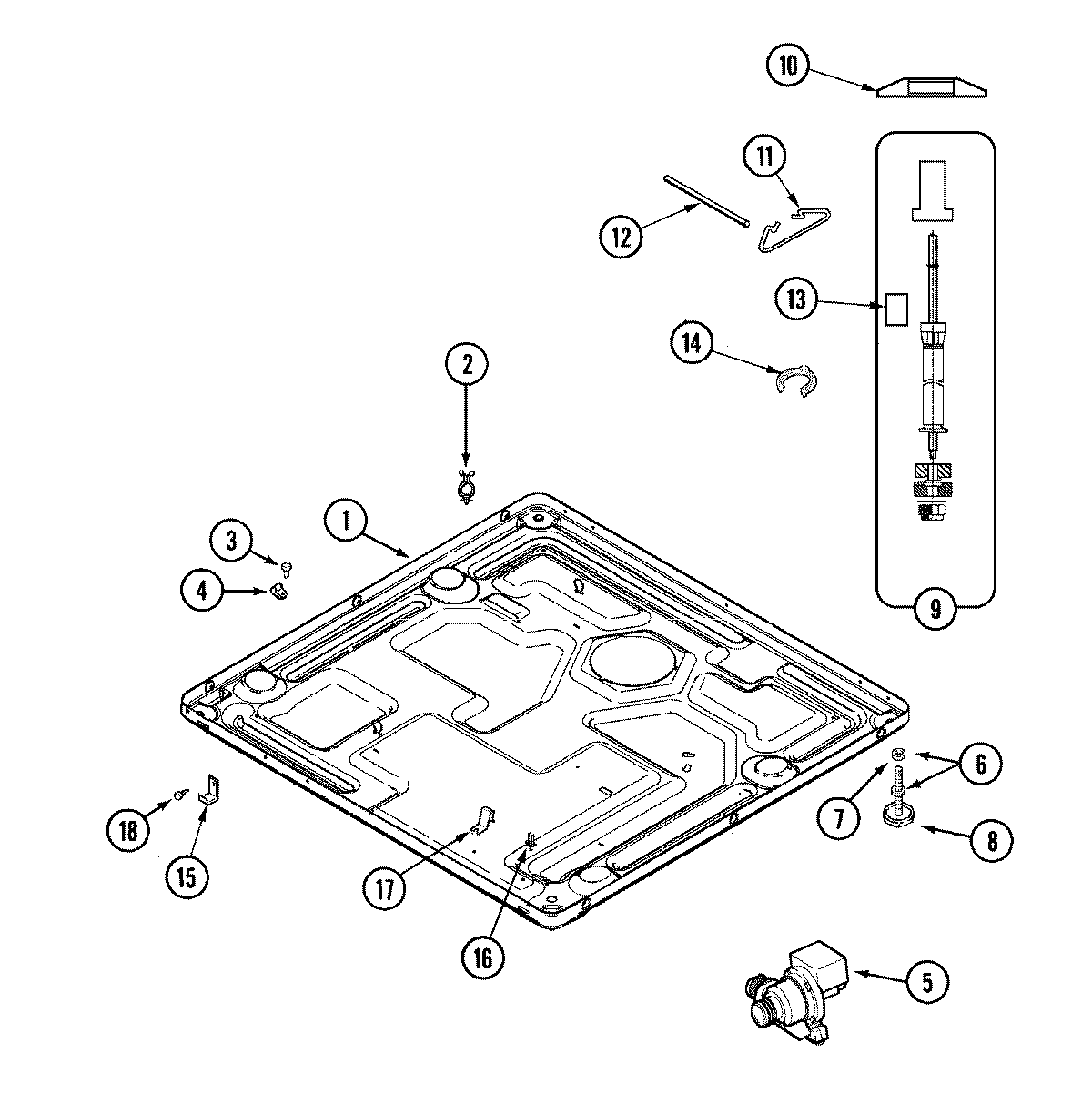

MUG2000AWW 01 – BASE (WASHER)

Products

Position	Product
1	22003435 Whirlpool Assembly P1 Base O/S1
1	MAY 22003580
2	MAY 33001989
2	MAY 315471
3	MAY Y313561
4	WP308605 Whirlpool Refrigerator Clamp
5	WP22003059 Whirlpool Pump Motor
5	MAY 22001982
6	WP8563585 Whirlpool Foot Assembly
7	WP62739 Whirlpool Nut
8	WP210684 Whirlpool Dishwasher Leveling Leg Pad
9	MAY 22001988
10	DEFLECTOR, WATER (ON LEFT STRUT ONLY)
11	MAY 33002223
12	MAY 33002224
13	MAY 22002307
13	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14	MAY 22003080
15	MAY 22002239
16	MAY Y313262
17	MAY 22002244
18	SCREW, WATER VALVE BRACKET
