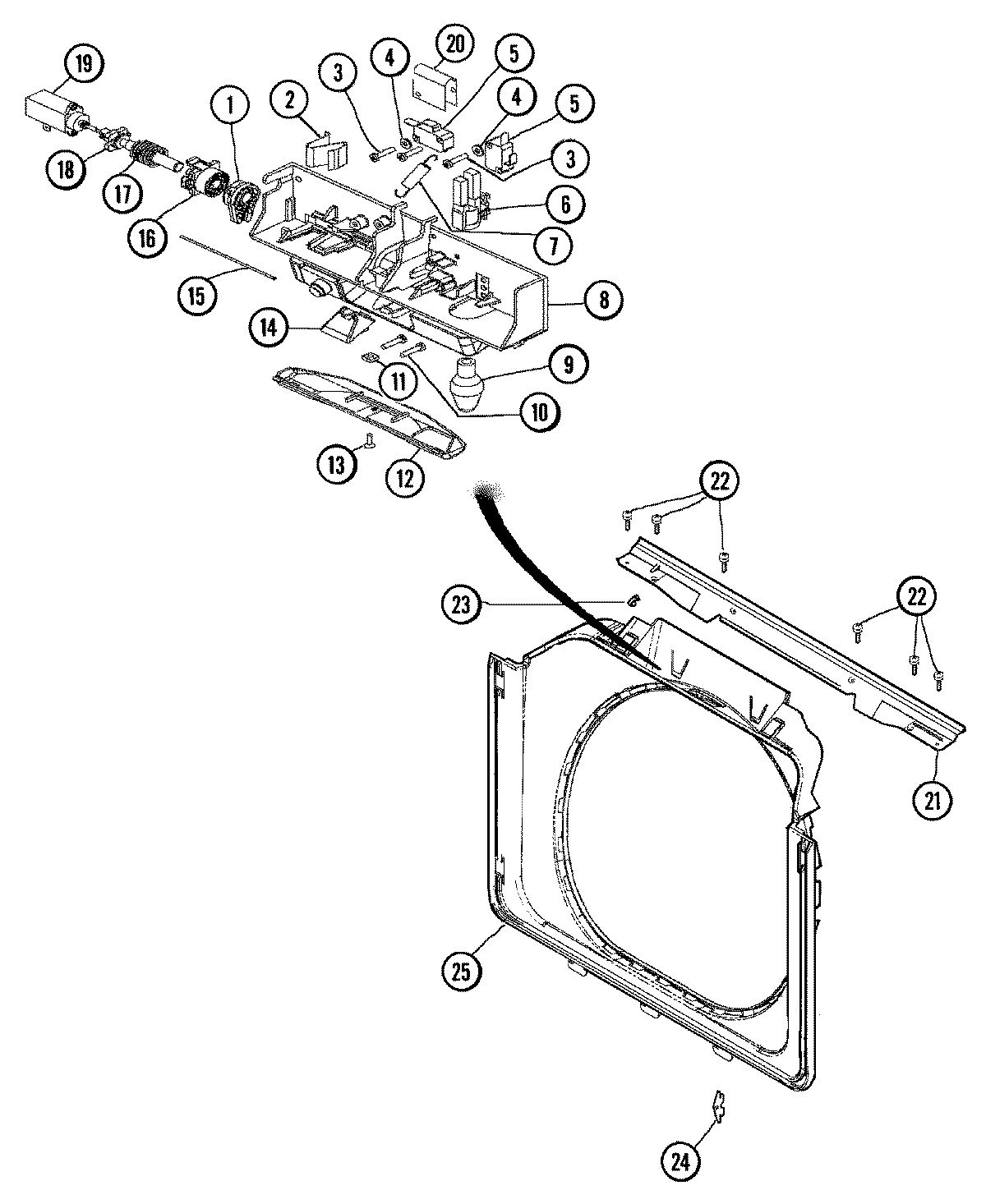

MUG2000AXW 10 – DOOR SHROUD & DOOR LATCH ASSEMBLY (WASH)

MUG2000AXW 10 – DOOR SHROUD & DOOR LATCH ASSEMBLY (WASH)

Written by

in

MUG2000AXW 10 – DOOR SHROUD & DOOR LATCH ASSEMBLY (WASH)

Products

PositionProduct
1MAY 22003716
222003717 Whirlpool Latch Spring
3MAY 22001352
4MAY 22002165
5WP22002162 Whirlpool Door Switch
6MAY 22002433
7MAY 22002158
8WP22003067 Whirlpool Bracket
9WP22002263 Whirlpool Dryer 10W Light Bulb
10MAY 22003719
11MAY 22003720
12MAY 22002434
13WP241877 Whirlpool Screw
14MAY 22003055
15MAY 22002164
16MAY 22003715
18MAY 22003718
1912002535 Whirlpool Dispenser Wax Motor Kit
20MAY 22004256
21MAY 33002202
22W11573574 Whirlpool Screw
23WP308605 Whirlpool Refrigerator Clamp
2412001994 Whirlpool Primary Hinge Kit
25MAY 22002506
