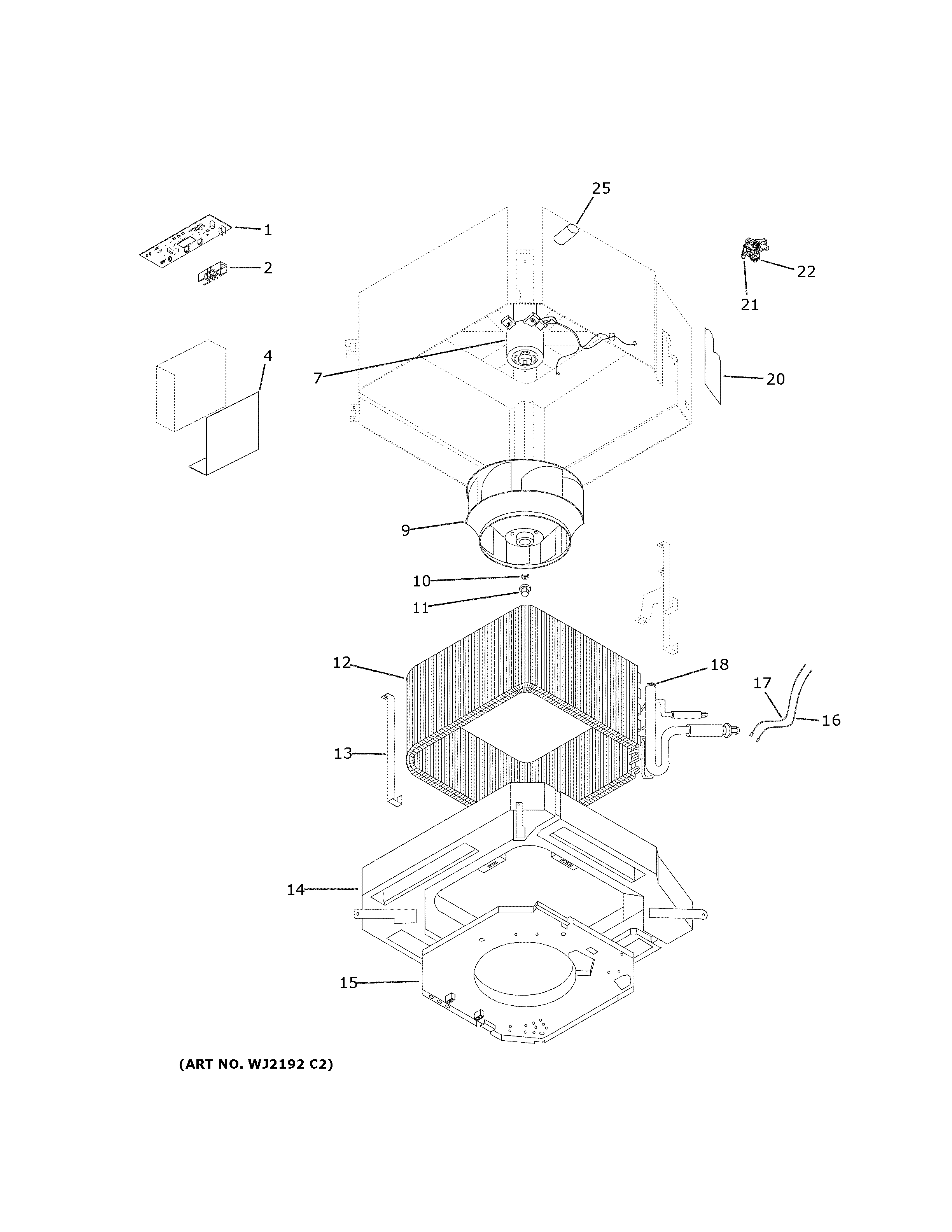

MVAB005MV2AA1 ROOM AIR CONDITIONER

Products

Position	Product
1	MAIN BOARD
2	WP26X26736 GE Terminal Block
4	WJ76X22576 GE Control Box Cover
7	WJ94X22583 GE Fan Motor
9	WJ73X22581 GE Fan Blade
10	WJ01X22582 GE Fan Blade Clip
11	FLANGE NUT M6
12	WP87X26767 GE Evaporator
13	WJ65X22580 GE Evaporator Bracket
14	CONDENSATE PAN
15	FAN SHROUD
16	WJ26X22533 GE Liquid Pipe Temperature Sensor
17	VAPOR PIPE TEMPERATURE SENSOR
18	WJ26X22578 GE Electronic Expansion Valve
20	WP76X26733 GE Access Cover
21	FLOAT SWITCH
22	WATER PUMP
25	WJ53X22577 GE Drain Tube
