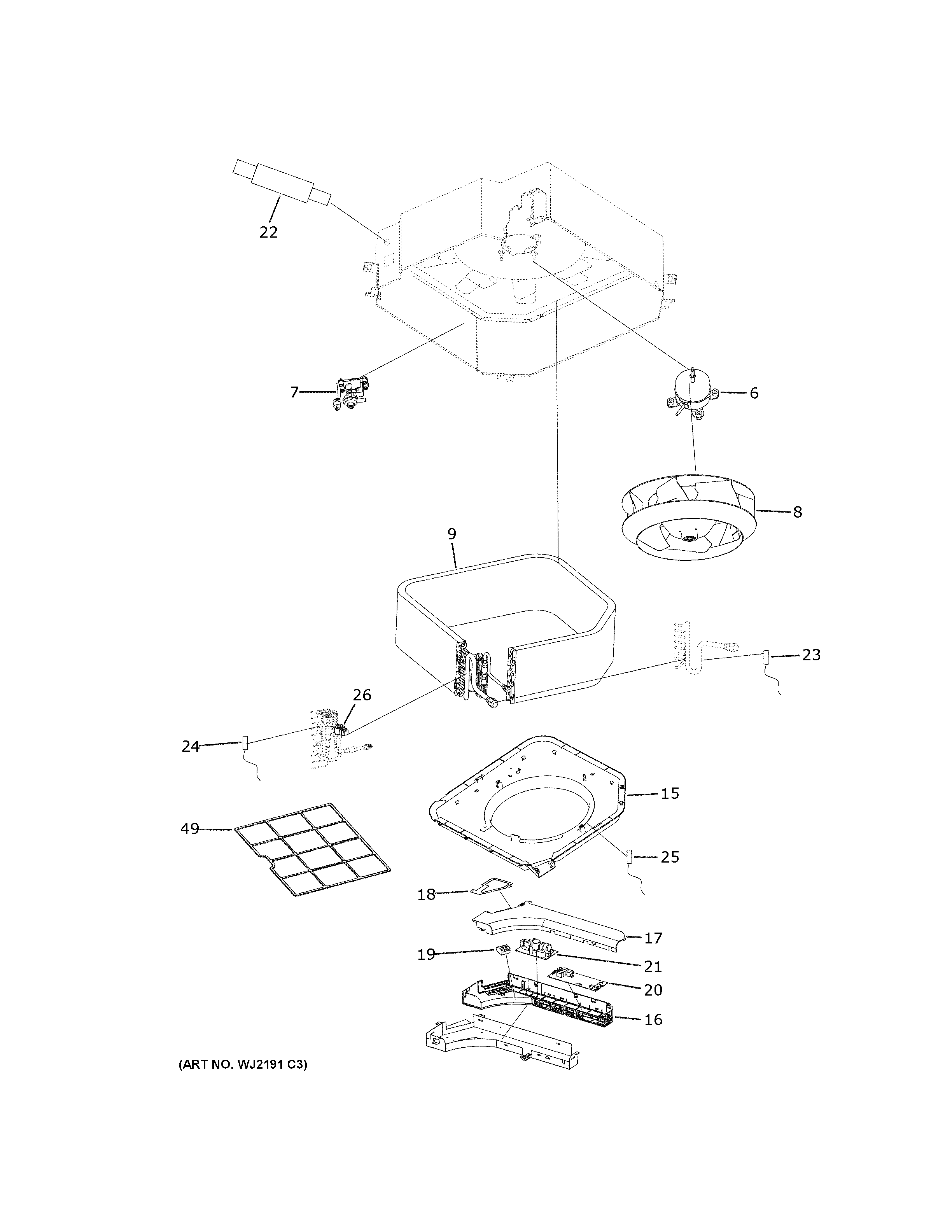

MVAL009MV2AA ROOM AIR CONDITIONERadmin2025-04-26T11:58:10+00:00MVAL009MV2AA ROOM AIR CONDITIONER ProductsPositionProduct6FAN MOTOR7WJ26X22532 GE Ice Pump8FAN BLADE9EVAPORATOR15FAN SHROUD16CONTROL BOX17WJ76X29474 GE Control Box Cover18CONTROL BOX ACCESS19TERMINAL BLOCK20MAIN BOARD21POWER SUPPLY BOARD22DRAIN HOSE23VAPOR PIPE TEMPERATURE SENSOR24WJ26X22533 GE Liquid Pipe Temperature Sensor25AMBIENT TEMPERATURE SENSOR26ELECTRONIC EXPANSION VALVE49WJ85X27613 GE Air Filter
