MVAL024ME2AA1 ROOM AIR CONDITIONER

MVAL024ME2AA1 ROOM AIR CONDITIONER

Written by

in

MVAL024ME2AA1 ROOM AIR CONDITIONER

Products

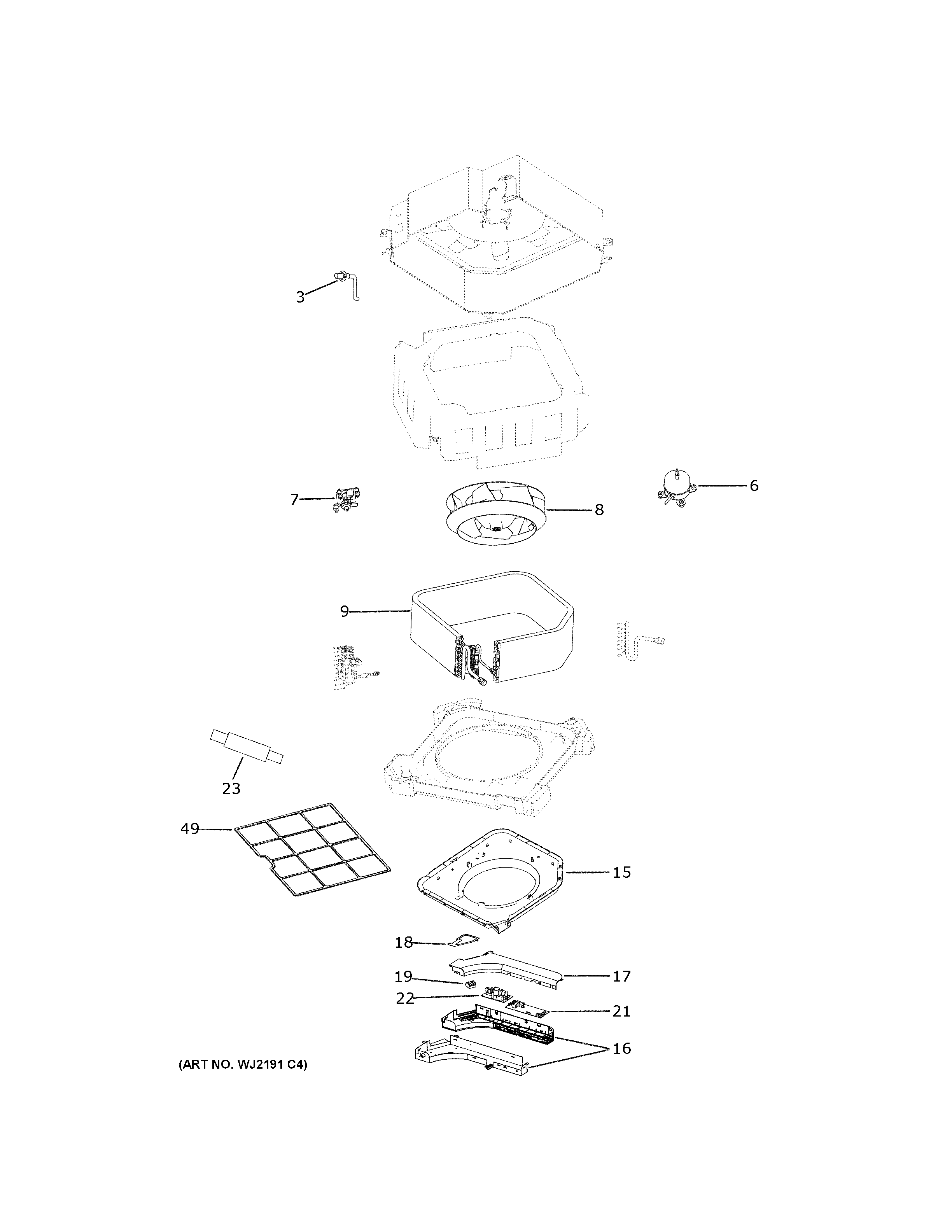

PositionProduct
3WJ53X22525 GE Drain Tube
6WJ94X22545 GE Fan Motor Assembly
7WJ26X22532 GE Ice Pump
8FAN BLADE
9EVAPORATOR
15WJ76X22541 GE Fan Shroud
16WP76X26765 GE Control Box
17WJ76X29474 GE Control Box Cover
18CONTROL BOX ACCESS
19WP26X26735 GE Terminal Block
21WP26X26768 GE Main Board
22POWER SUPPLY BOARD
23DRAIN HOSE
49WJ85X27613 GE Air Filter
