MVAL048MV2AA ROOM AIR CONDITIONER

Products

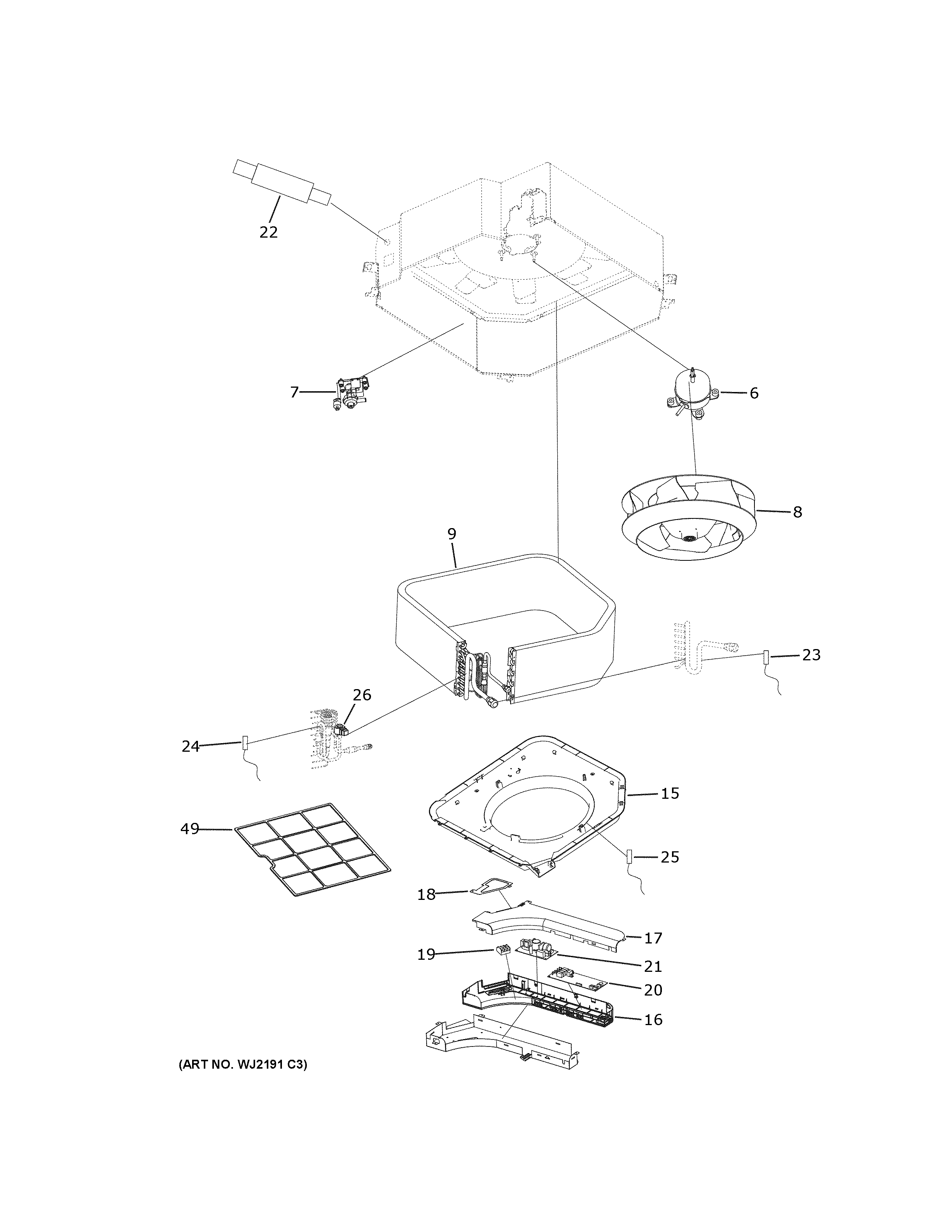

Position	Product
6	WJ94X22545 GE Fan Motor Assembly
7	WJ26X22532 GE Ice Pump
8	FAN BLADE
9	EVAPORATOR
15	WJ76X22563 GE Fan Shroud
16	CONTROL BOX
17	WJ76X29474 GE Control Box Cover
18	CONTROL BOX ACCESS
19	TERMINAL BLOCK
20	MAIN BOARD
21	POWER SUPPLY BOARD
22	DRAIN HOSE
23	VAPOR PIPE TEMPERATURE SENSOR
24	WJ26X22533 GE Liquid Pipe Temperature Sensor
25	AMBIENT TEMPERATURE SENSOR
26	WJ26X22560 GE Electronic Expansion Valve
49	WJ85X27613 GE Air Filter
