MVAX042ME2AA1 ROOM AIR CONDITIONER

Products

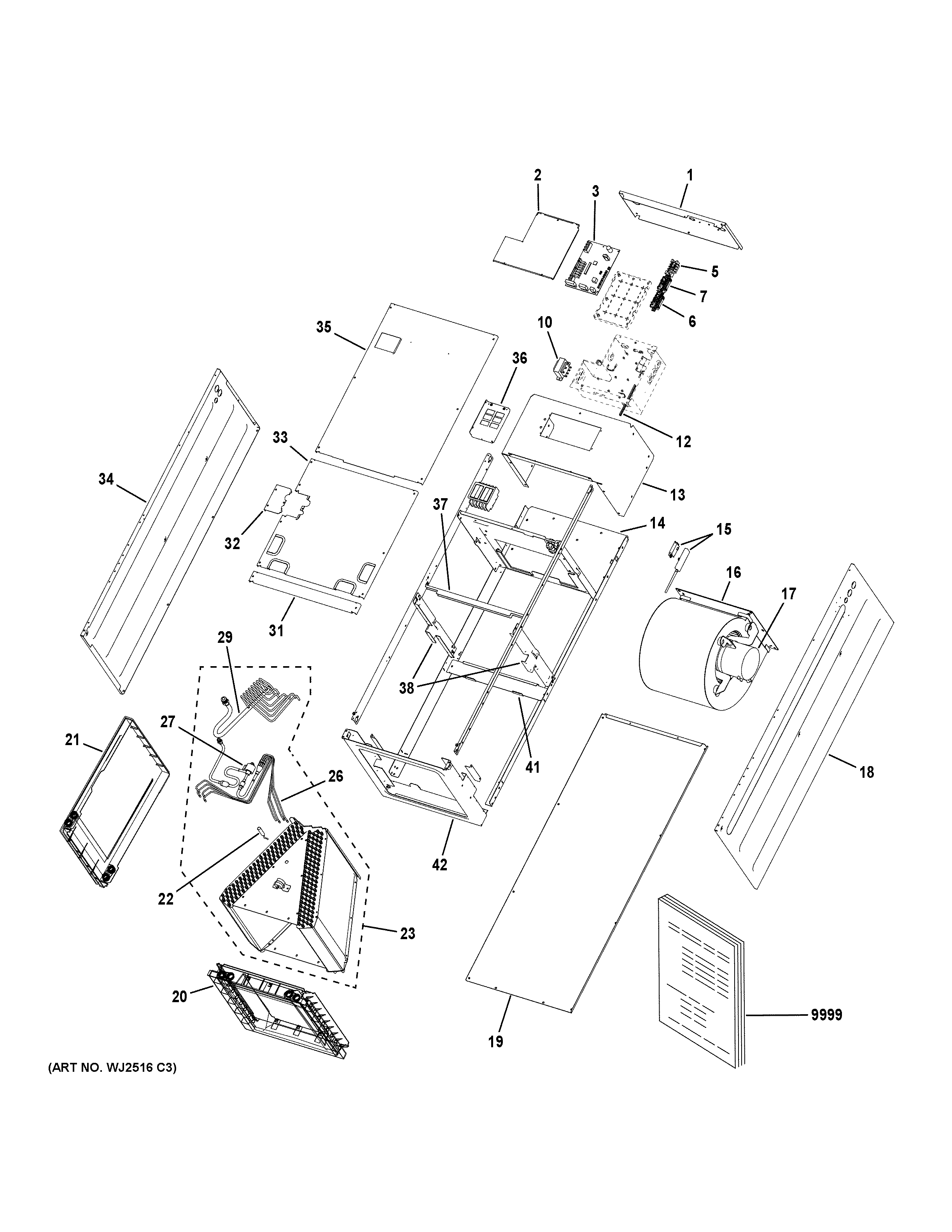

Position	Product
1	TOP COVER PANEL
2	WP76X31511 GE Electric Box Cover
3	POWER CONTROL BOARD
5	WP26X26735 GE Terminal Block
6	WP26X26734 GE Terminal Block Communication
7	JUNCTION BLOCK
10	TRANSFORMER
12	WIRE HARNESS BUNDLE
13	WP71X31509 GE Access Panel
14	WP76X32393 GE Motor Mounting Plate
15	WIFI MODULE
16	MOTOR ASSEMBLY
17	MOTOR
18	RIGHT SIDE PANEL
19	REAR PANEL
20	WP76X32379 GE Water Tray
21	WP76X31513 GE Water Tray Side
22	AMBIENT TEMP. SENSOR TAI
23	EVAPORATOR ASSEMBLY
26	WP26X32078 GE Tube Temperature Sensor
27	ELECTRONIC EXPANSION VALVE
29	WP26X32077 GE Temperature Sensor Tube
31	FILTER BAFFLE
32	COVER PLATE
33	FRONT LOWER PANEL
34	LEFT SIDE PANEL
35	FRONT UPPER PANEL
36	SWITCH BRACKET
37	FRONT SUPPORT RAIL
38	MIDDLE SUPPORT RAIL
41	REAR SUPPORT RAIL
42	BOTTOM SUPPORT RAIL
9999	PM INSTALL INSTRUCTIONS
