MVHP056MV2AA ROOM AIR CONDITIONER

Products

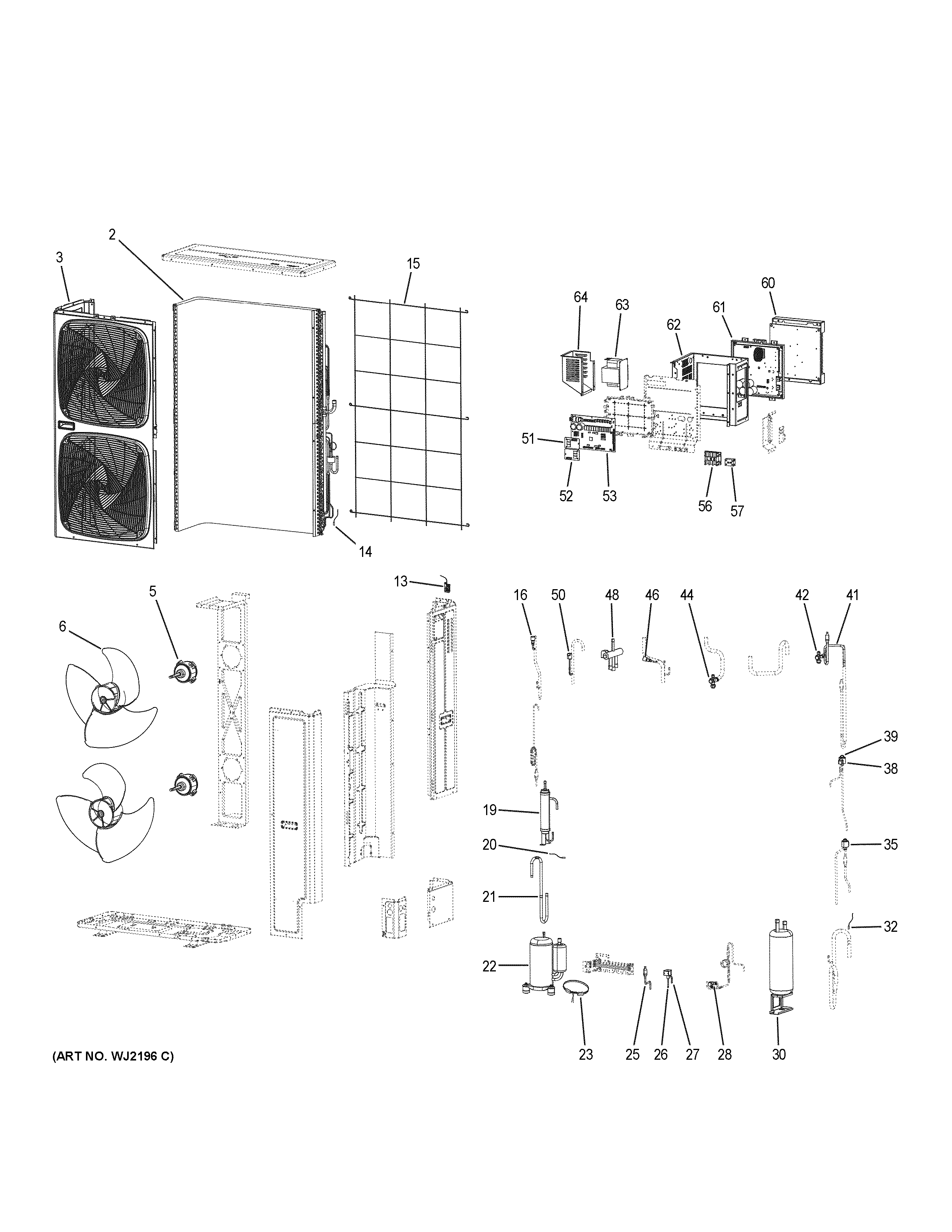

Position	Product
2	WJ88X22633 GE Condensing Coil
3	OUTDOOR FAN SHROUD
5	WJ94X22643 GE Fan Motor
6	WJ73X22642 GE Fan Blade
13	OUTDOOR AMBIENT TEMPERATURE SENSOR
14	WJ26X22636 GE Defrost/Toci Sensor
15	CONDSENDING COIL GUARD
16	WJ26X22645 GE High Pressure Sensor
19	WJ53X22654 GE Oil Separator
20	WJ26X22637 GE Discharge Temperature Sensor
21	WJ53X22671 GE Dishwasher Compressor Discharge Tube
22	WJ98X22670 GE Compressor
23	WJ27X22685 GE Sump Heater
25	WJ53X22649 GE Liquid Line Filter
26	WJ53X22627 GE Charging Valve Body
27	WJ27X22629 GE Charging Valve Solenoid
28	WJ27X22626 GE Charging Port
30	WJ53X22624 GE Accumulator Assembly
32	WJ26X22667 GE Suction Line Temperature Sensor
35	WJ26X22560 GE Electronic Expansion Valve
38	WJ26X22674 GE Expansion Valve Body
39	WJ26X22675 GE Levb Electronic Expansion Valve
41	WJ53X22678 GE Stop Valve Liquid Tube
42	WJ53X22650 GE Liquid Service Valve
44	SUCTION LINE SERVICE VALVE
46	WJ26X22652 GE Low Pressure Sensor
48	WJ53X22661 GE Reversing Valve Body
50	WJ27X22646 GE High Pressure Switch
51	WJ26X22682 GE Star Box Control Board
52	SUBCOOLED TUBE CONTROL BOARD
53	WJ26X22679 GE Main Control Board
56	WJ26X22648 GE Voltage Terminal Block
57	WJ20X22630 GE Washer Communication Wiring Terminal
60	WJ26X22638 GE Display Board
61	WJ26X29014 GE Inverter Board
62	WJ26X22644 GE Heat Sink
63	WJ26X22659 GE Reactor
64	REACTOR COVER
