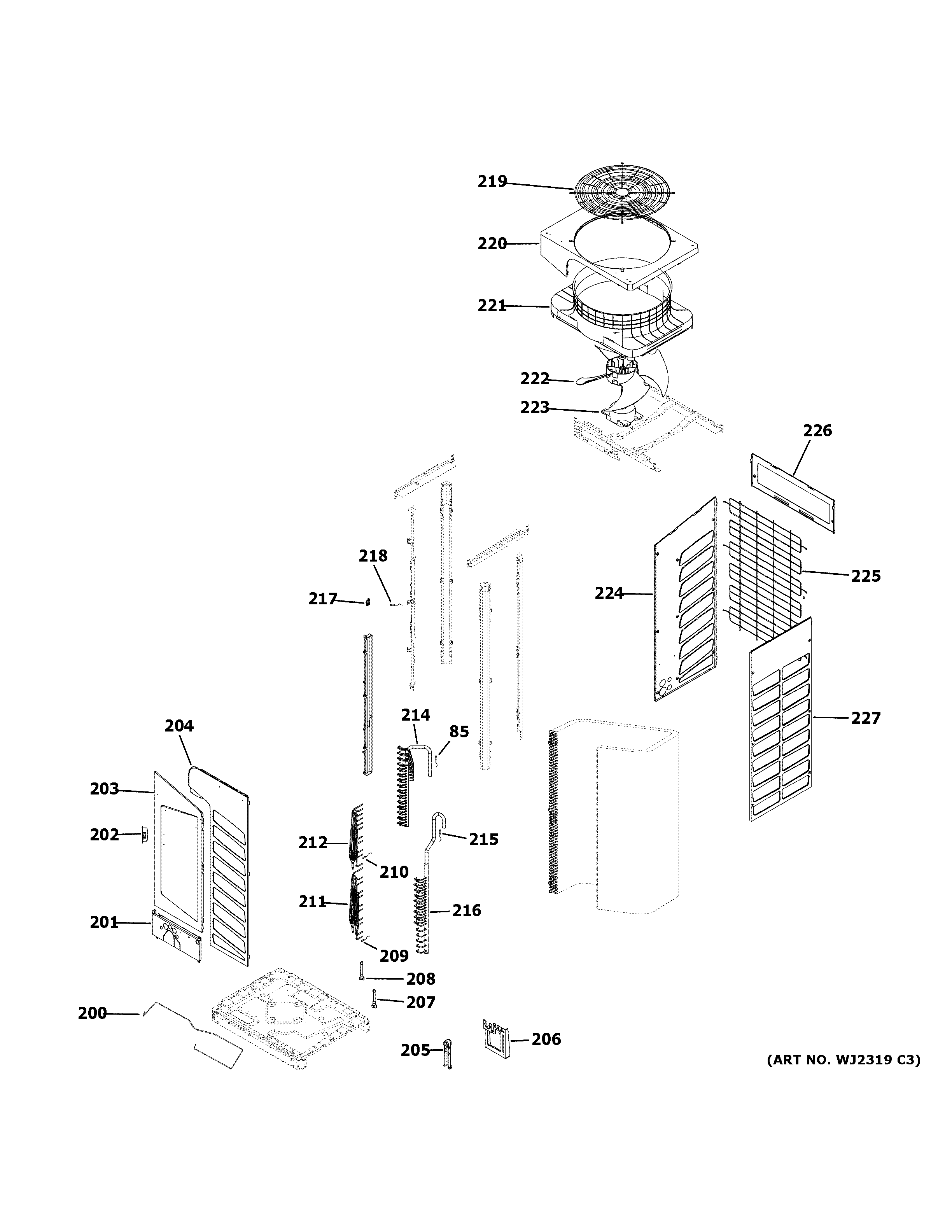

MVHP072ME4CA1 MOTOR & CHASSIS PARTS

MVHP072ME4CA1 MOTOR & CHASSIS PARTS

Written by

in

MVHP072ME4CA1 MOTOR & CHASSIS PARTS

Products

PositionProduct
85WP26X26753 GE Temperature Sensor
200WP27X28251 GE Heater Base Pan
201LOWER FRONT PANEL
202WP01X26749 GE Handle
203SERVICE PANEL
204FRONT PANEL
205SUPPORT PLATE
206VALVE SEAT
207SUPERCOOLED TUBE 2
208SUPERCOOLED TUBE1
209WP26X26754 GE Sensor TDEF2
210WP26X26027 GE Defrost Sensor
211LOWER LIQUID HEADER
212UPPER LIQUID HEADER
214UPPER GAS HEADER
215Toci2 SENSOR
216LOWER GAS HEADER
217WP65X26751 GE Sensor Clip
218Tao SENSOR
219TOP GRILLE
220TOP COVER
221FAN SHROUD
222FAN BLADE
223WP94X28235 GE Fan Motor Outdoor
224WP71X26738 GE Panel Left Side
225GRILLE
226BACK GUARD
227WP71X26739 GE Right Side Panel
